Description

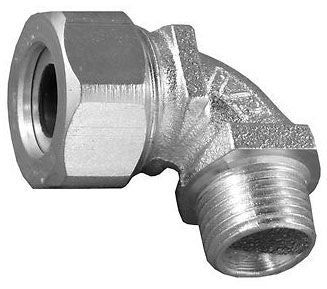

CG9075100 - Appleton - 1.75 INCH DIAMETER CORD CONNECTOR
90 DEGREE MALE TYPE; CAST ALUMINUM (BODY), COPPER-FREE ALUMINUM (CAP), NEOPRENE (SEALING GROMMET), STEEL/NON-STICK (WASHER) MATERIAL; 1.75 INCH DIAMETER SIZE; UL 514B, CSA C22.2 APPROVAL; DRY/WET LOCATION, COMMERCIAL AND INDUSTRIAL APPLICATION; 1 INCH THREAD SIZE; 0.75 TO 0.875 INCH CORD SIZE; LABEL COLOR CODE GRAY; ENCLOSURE RATING CLASS I DIV 2, CLASS II DIV 1 AND 2, CLASS III, NEMA 3R; APPLICABLE STANDARD NEC/CEC; CG MODEL
GENERAL SPECIFICATIONS
| Type | 90 Degree Male |
| Thread Size | 1 Inch |
| Material | Cast Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) |
| Cord Size | 0.75 to 0.875 Inch |
| Size | 1.75 Inch Diameter |
| Approval | UL 514B, CSA C22.2 |
| Application | Dry/Wet Location, Commercial and Industrial |
| Model | CG |
| Additional Information | Label Color Code Gray; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard NEC/CEC |
PRODUCT DATASHEET
