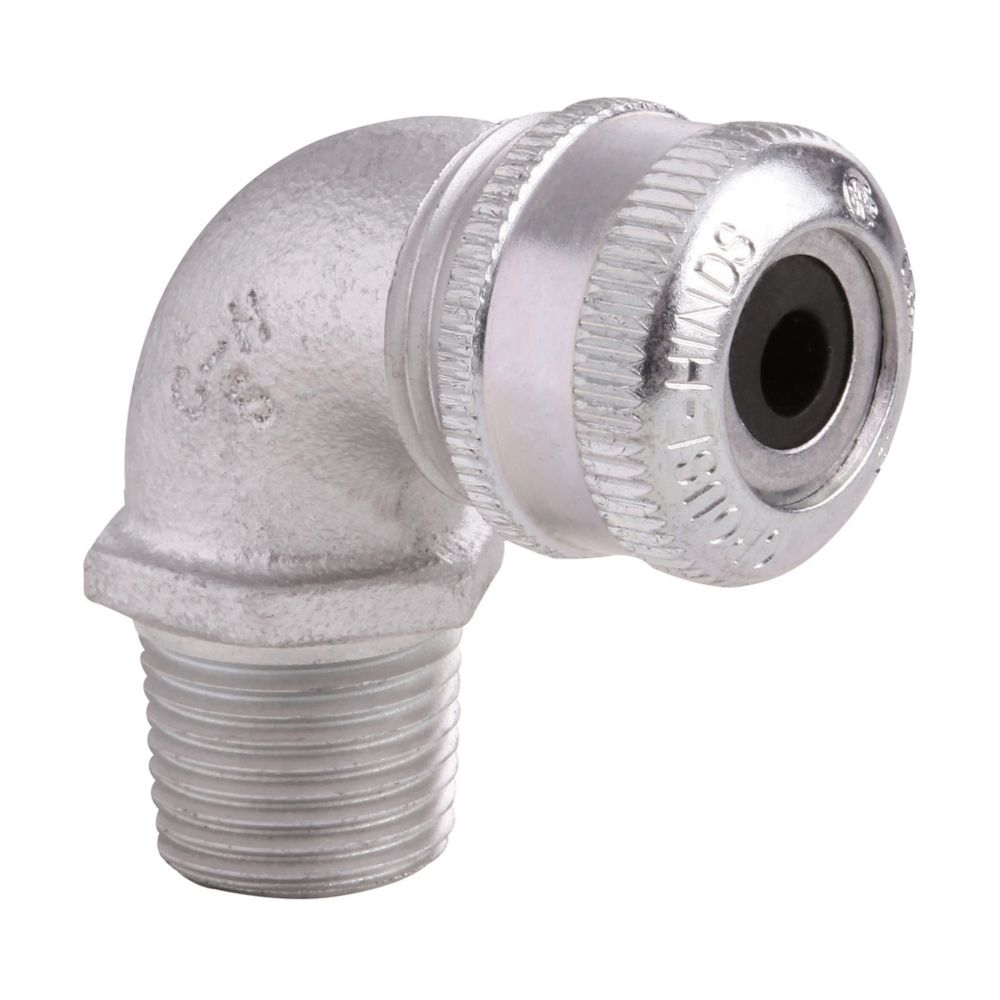

CGE192 - Eaton Crouse-Hinds Series - Feraloy Iron Alloy General Purpose CGE Cable Gland
The Eaton Crouse-Hinds CGE192 is a general-purpose cable gland suitable for non-armoured and tray cables. It provides secure cable termination in various industrial settings. Constructed for durability and reliability. Specific dimensions and thread sizes are detailed in the product specifications.
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series CGE cable gland |
| Catalog Number | CGE192 |
| UPC | 782274141954 |
| Product Length/Depth | 2.87 in |
| Product Height | 1.14 in |
| Product Width | 1.14 in |
| Product Weight | 0.3 lb |
PRODUCT SPECIFICATIONS
| Protection type | General purpose |
| Cable type | Non-armoured Tray cable |
| Gland type | Non-armoured |
| Connector type | 90 deg angle |
| Thread Size | 1/2" |
| Thread type | NPT |
| Cable range (min/max) | 0.125-0.250" |
| Material | Feraloy iron alloy |
