Description

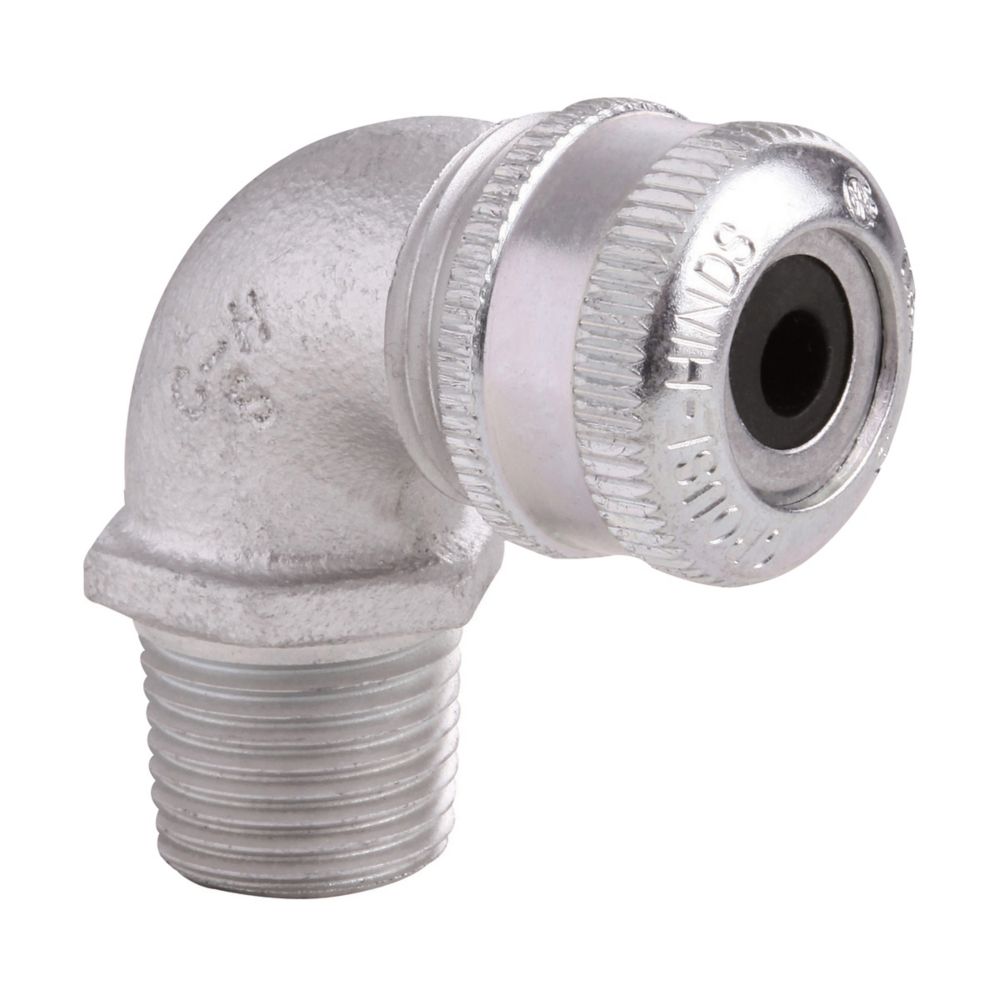

CGE196 - Eaton Crouse-Hinds Series - Feraloy Iron Alloy General Purpose CGE Cable Gland
The Eaton Crouse-Hinds CGE196 is a general-purpose cable gland for non-armoured and tray cables. It ensures reliable cable securing in industrial environments. Built to withstand demanding conditions. Detailed sizing and thread information can be found in the product specs.
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series CGE cable gland |
| Catalog Number | CGE196 |
| UPC | 782274142555 |
| Product Length/Depth | 2.8 in |
| Product Height | 1.63 in |
| Product Width | 1.63 in |
| Product Weight | 0.68 lb |
PRODUCT SPECIFICATIONS
| Protection type | General purpose |
| Cable type | Tray cable Non-armoured |
| Gland type | Non-armoured |
| Connector type | 90 deg angle |
| Thread Size | 1/2" |
| Thread type | NPT |
| Cable range (min/max) | 0.625-0.750" |
| Material | Feraloy iron alloy |
PRODUCT DATASHEET
