CGE294 - Eaton Crouse-Hinds Series - Feraloy Iron Alloy General Purpose CGE Cable Gland

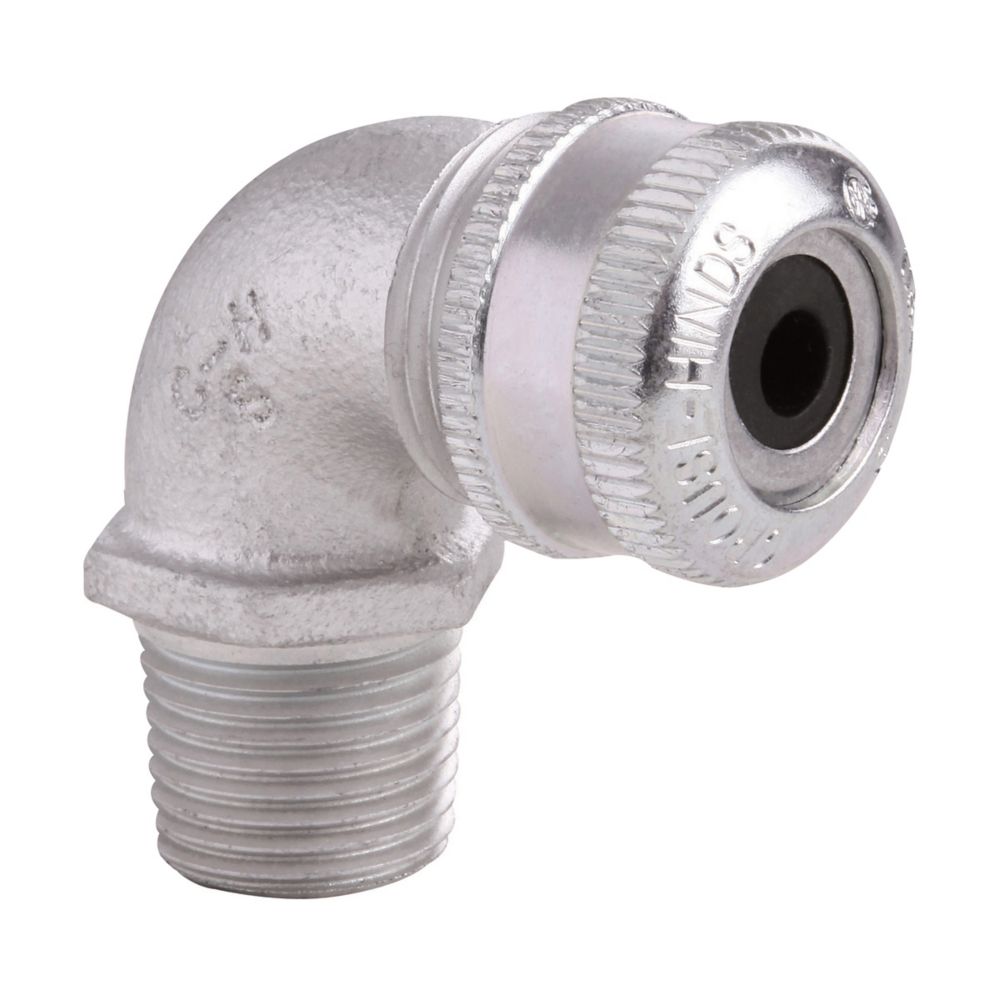

The Eaton Crouse-Hinds CGE294 is a 90 deg angle cable gland designed for non-armoured and tray cables.It accommodates cable diameters ranging from 0.375" to 0.500".Constructed from durable Feraloy iron alloy, it ensures robust performance.Ideal for applications requiring compact and secure cable terminations.
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series CGE cable gland |
| Catalog Number | CGE294 |
| UPC | 782274142951 |
| Product Length/Depth | 2.32 in |
| Product Height | 1.14 in |
| Product Width | 1.14 in |
| Product Weight | 0.44 lb |
PRODUCT SPECIFICATIONS
| Protection type | General purpose |
| Cable type | Non-armoured Tray cable |
| Gland type | Non-armoured |
| Connector type | 90 deg angle |
| Thread Size | 3/4" |
| Thread type | NPT |
| Cable range (min/max) | 0.375-0.500" |
| Material | Feraloy iron alloy |
