Description
CGE296 - Eaton Crouse-Hinds Series - Feraloy Iron Alloy General Purpose CGE Cable Gland

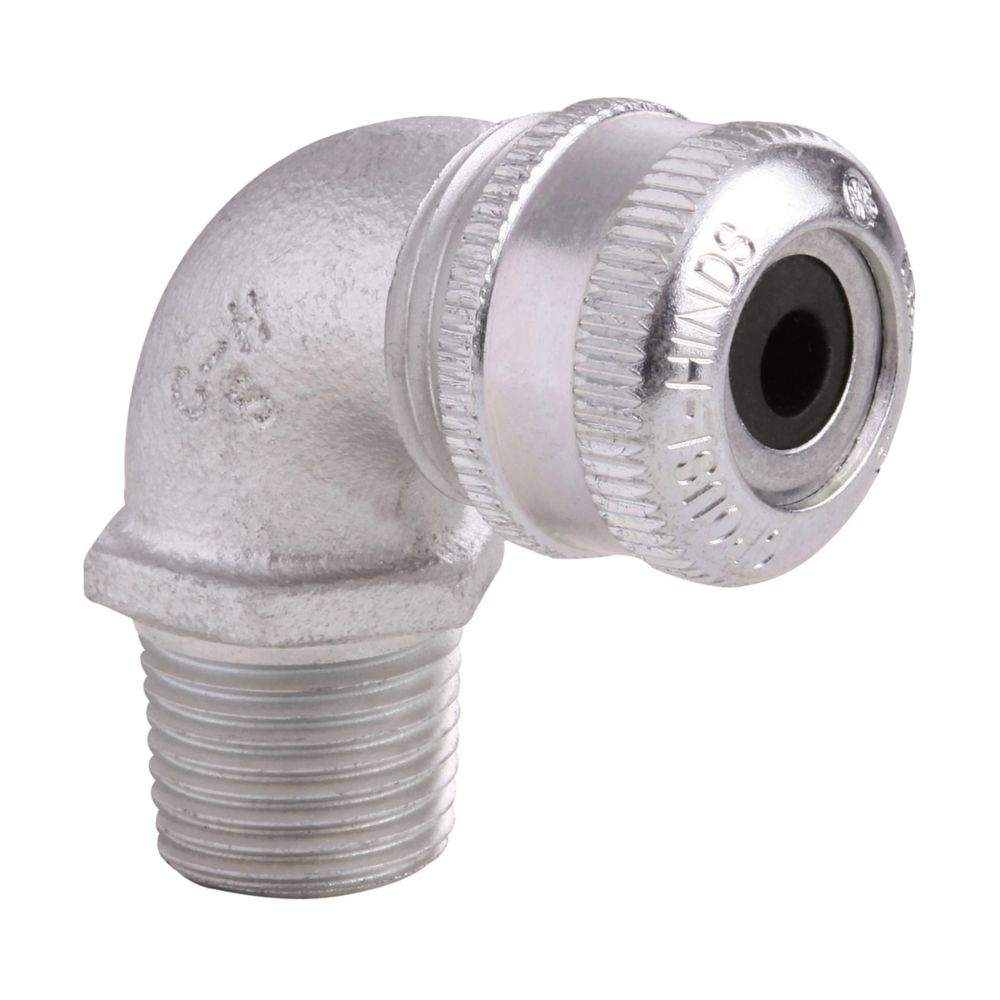

The Eaton Crouse-Hinds CGE296 is a 90 deg angle cable gland suitable for non-armoured and tray cables.It supports cable sizes between 0.625" and 0.750".Made from Feraloy iron alloy, it offers strength and reliability.Perfect for installations where space and cable protection are critical.
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series CGE cable gland |
| Catalog Number | CGE296 |
| UPC | 782274143354 |
| Product Length/Depth | 2.64 in |
| Product Height | 1.63 in |
| Product Width | 1.63 in |
| Product Weight | 0.76 lb |
PRODUCT SPECIFICATIONS
| Protection type | General purpose |
| Cable type | Non-armoured Tray cable |
| Gland type | Non-armoured |
| Connector type | 90 deg angle |
| Thread Size | 3/4" |
| Thread type | NPT |
| Cable range (min/max) | 0.625-0.750" |
| Material | Feraloy iron alloy |
