Description

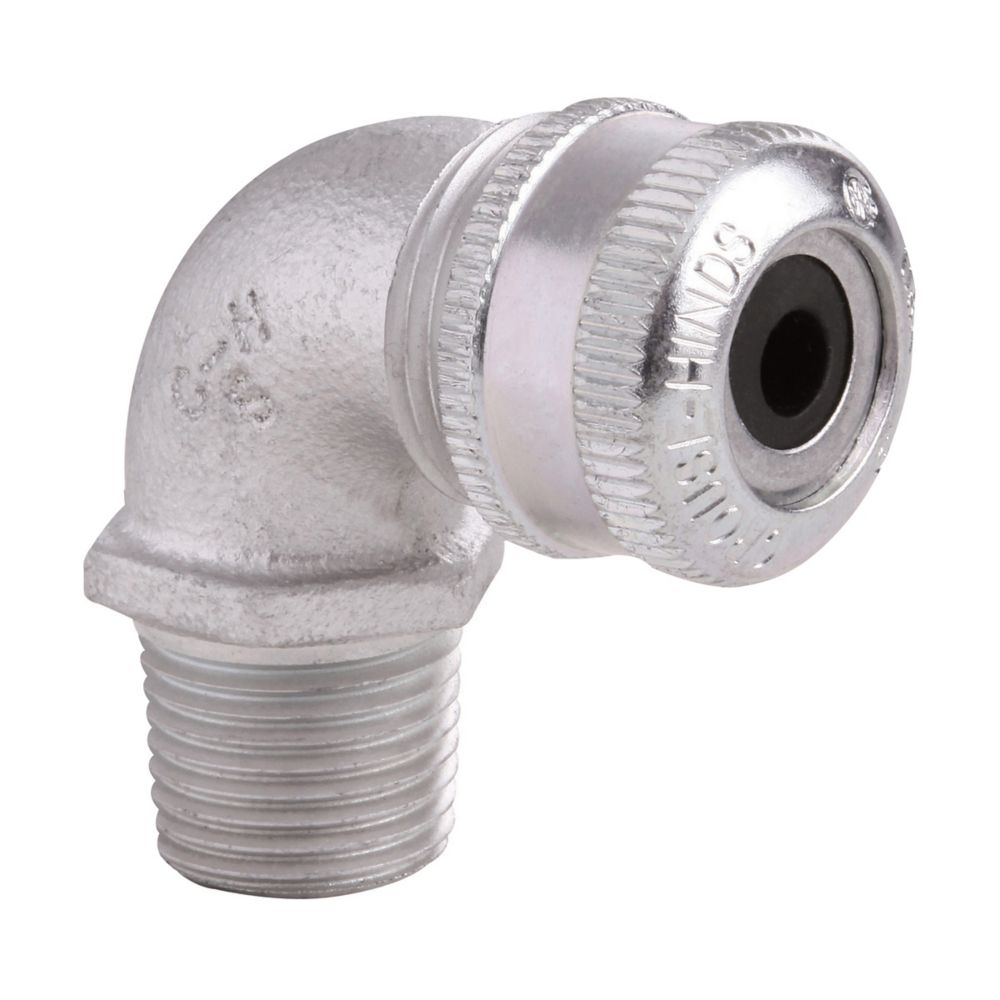

CGE396 - Eaton Crouse-Hinds Series - Feraloy Iron Alloy General Purpose CGE Cable Gland
The Eaton Crouse-Hinds CGE396 is a 90 deg angle cable gland crafted for non-armoured and tray cables.It fits cable diameters from 0.625" to 0.750".Featuring a Feraloy iron alloy body, it provides durable cable management.Suitable for environments demanding secure and angled cable entries.
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series CGE cable gland |
| Catalog Number | CGE396 |
| UPC | 782274144009 |
| Product Length/Depth | 2.79 in |
| Product Height | 1.63 in |
| Product Width | 1.63 in |
| Product Weight | 0.77 lb |
PRODUCT SPECIFICATIONS
| Protection type | General purpose |
| Cable type | Non-armoured Tray cable |
| Gland type | Non-armoured |
| Connector type | 90 deg angle |
| Thread Size | 1" |
| Thread type | NPT |
| Cable range (min/max) | 0.625-0.750" |
| Material | Feraloy iron alloy |
PRODUCT DATASHEET
