Description

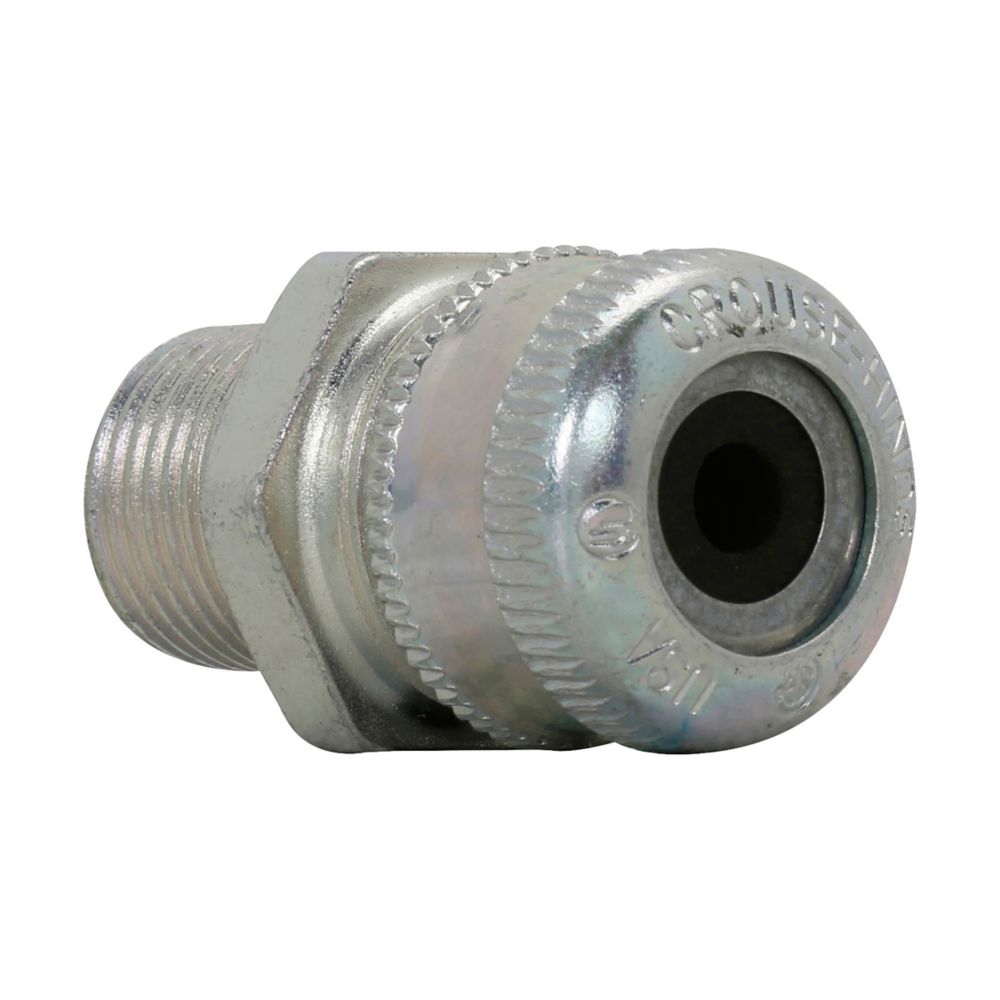

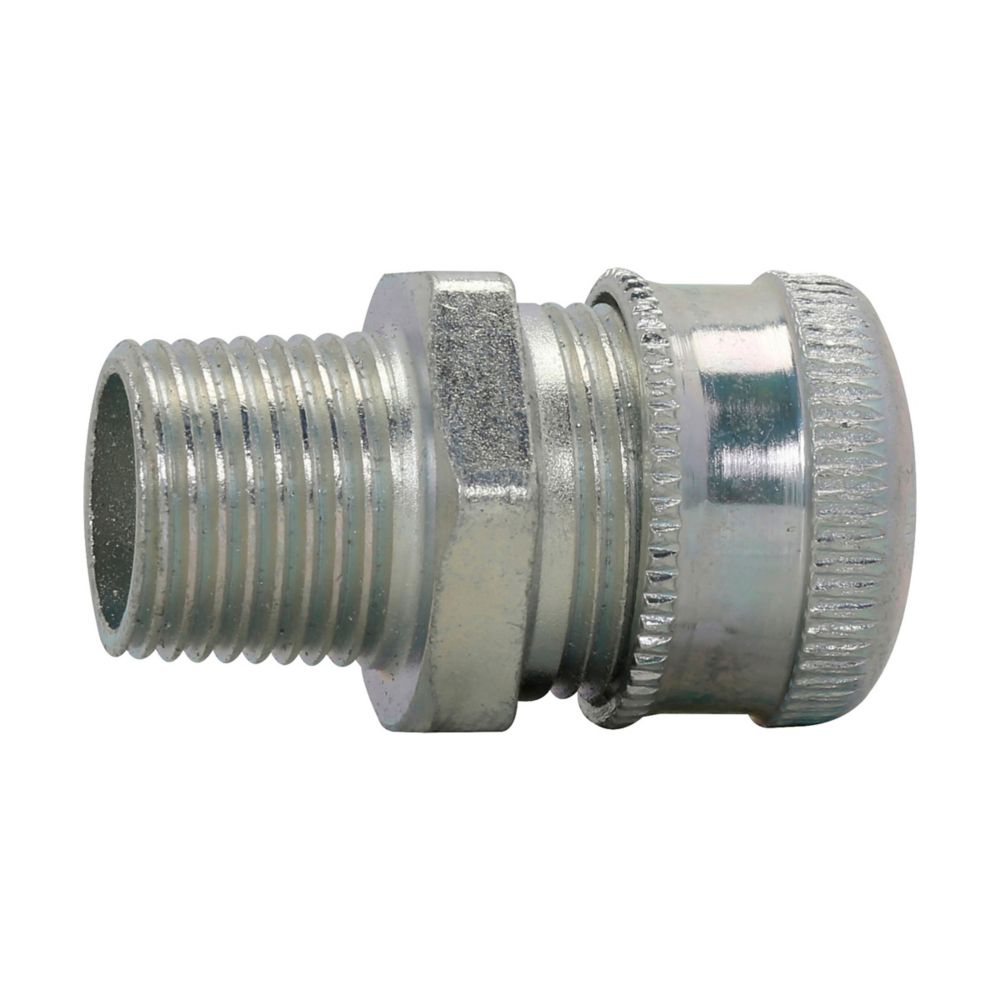

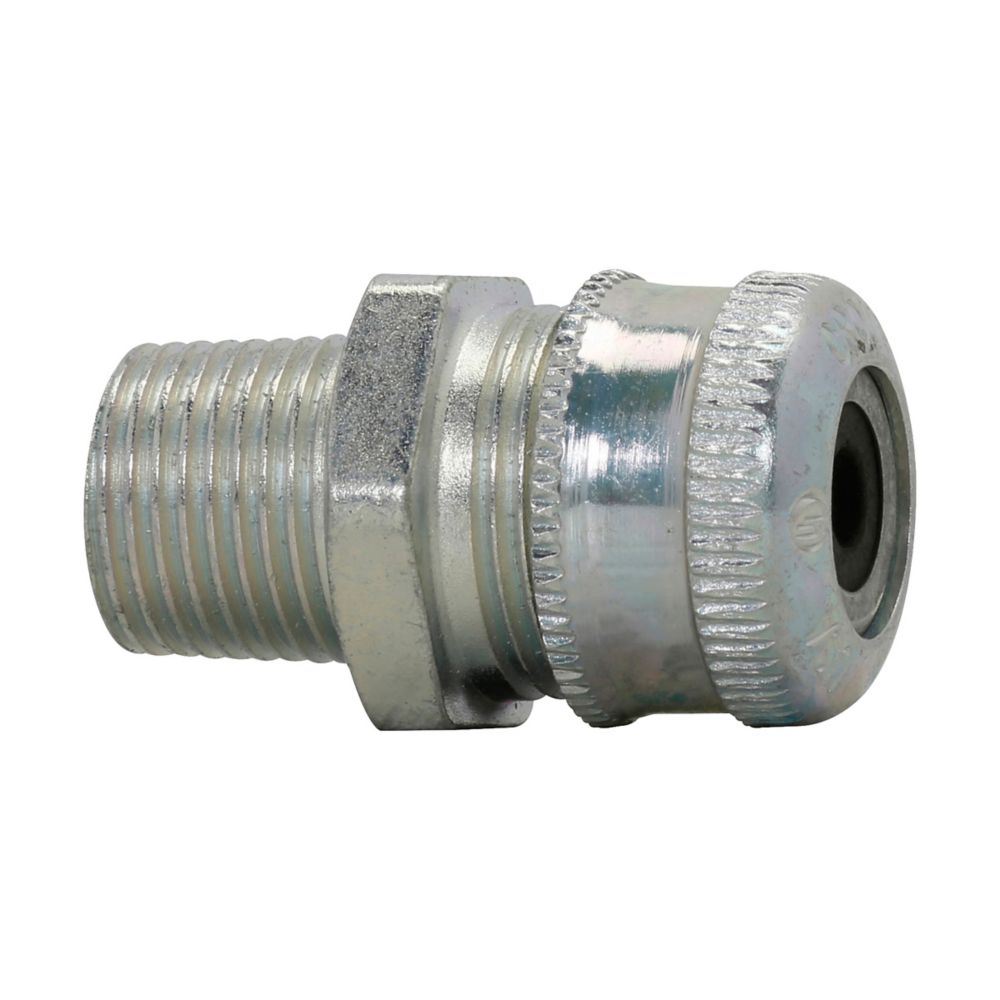

CGFP1023 - Eaton Crouse-Hinds Series - 4" CGFP Cable Gland
Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 2.500-3.000", General purpose, 4" NPT
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series CGFP cable gland
|
| Catalog Number |
CGFP1023
|
| UPC |
782274153100
|
| Product Length/Depth |
5.88 in
|
| Product Height |
5.5 in
|
| Product Width |
5.5 in
|
| Product Weight |
9.5 lb
|
| Product Type |
Cable gland
|
PRODUCT SPECIFICATIONS
| Protection type |
General purpose
|
| Cable type |
Non-armoured
Tray cable |
| Gland type |
Non-armoured
|
| Thread Size |
4"
|
| Thread type |
NPT
|
| Outer sheath (min/max) |
2.500-3.000"
|
| Material |
Feraloy iron alloy
|
PRODUCT DATASHEET
