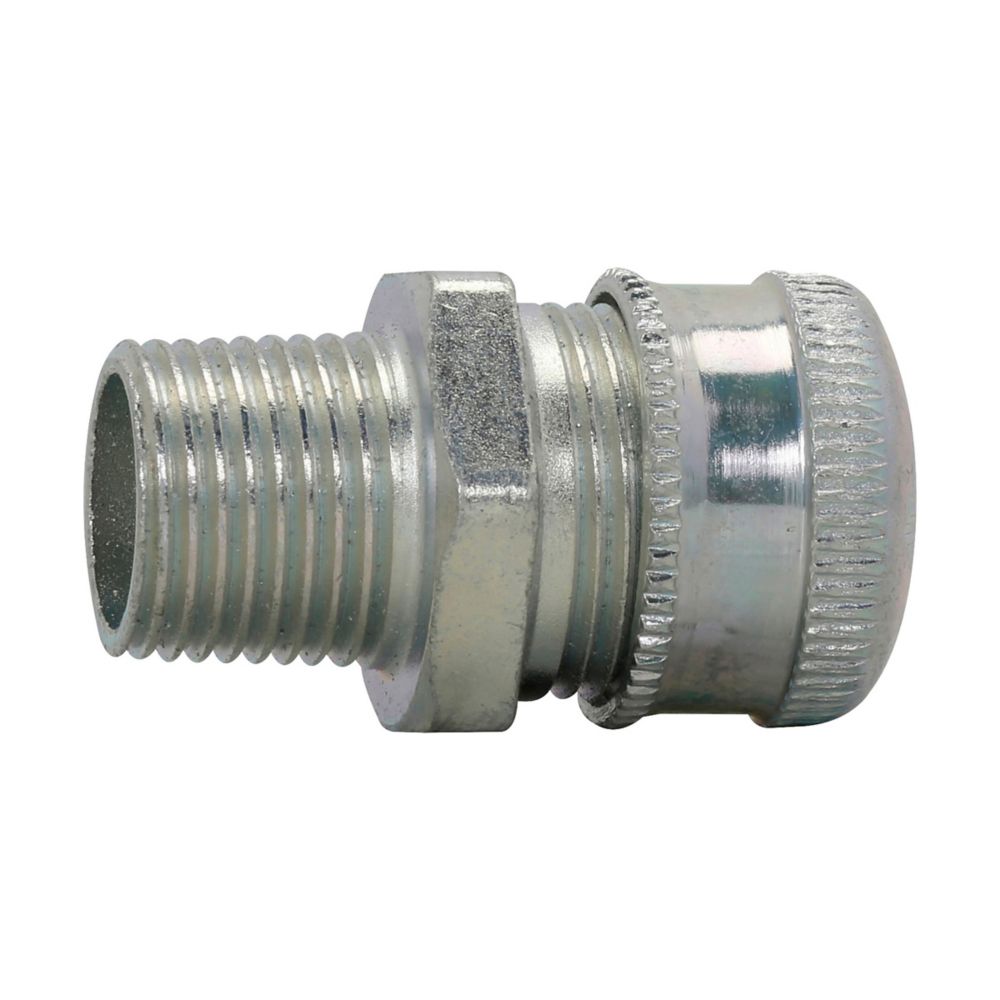

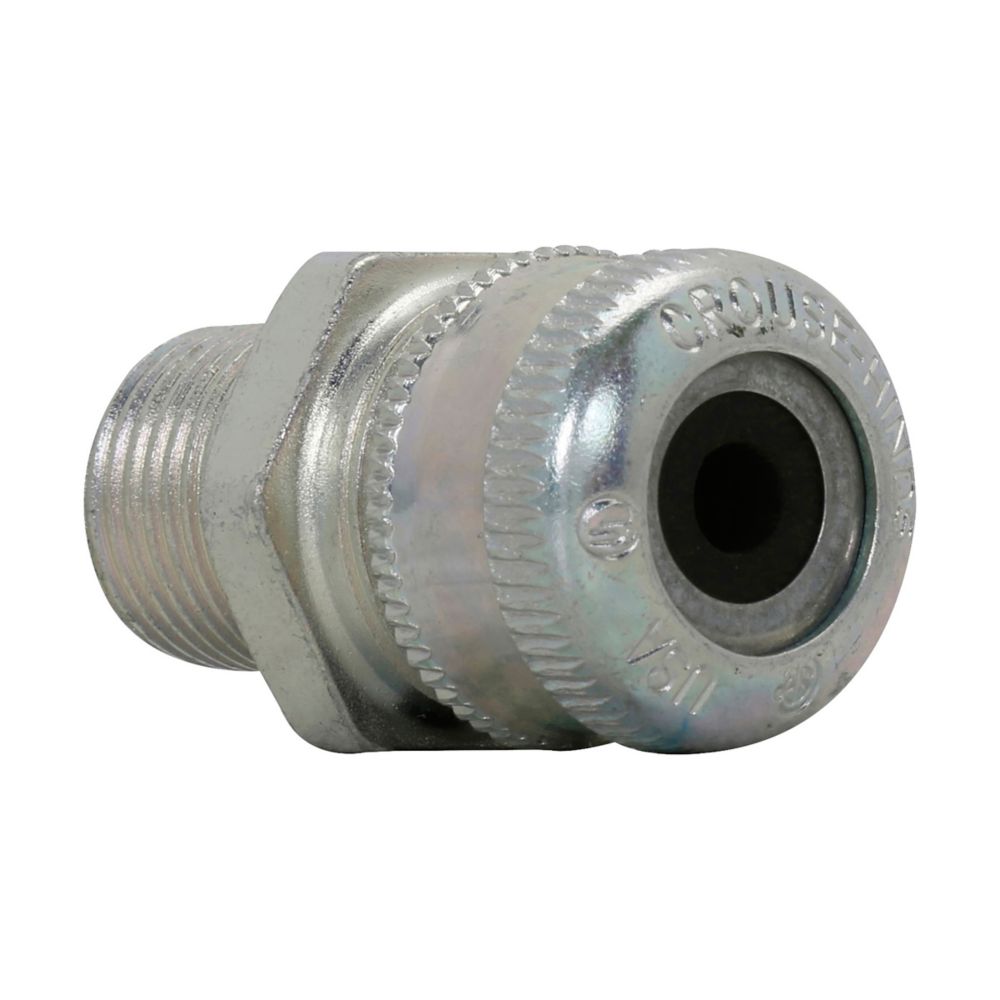

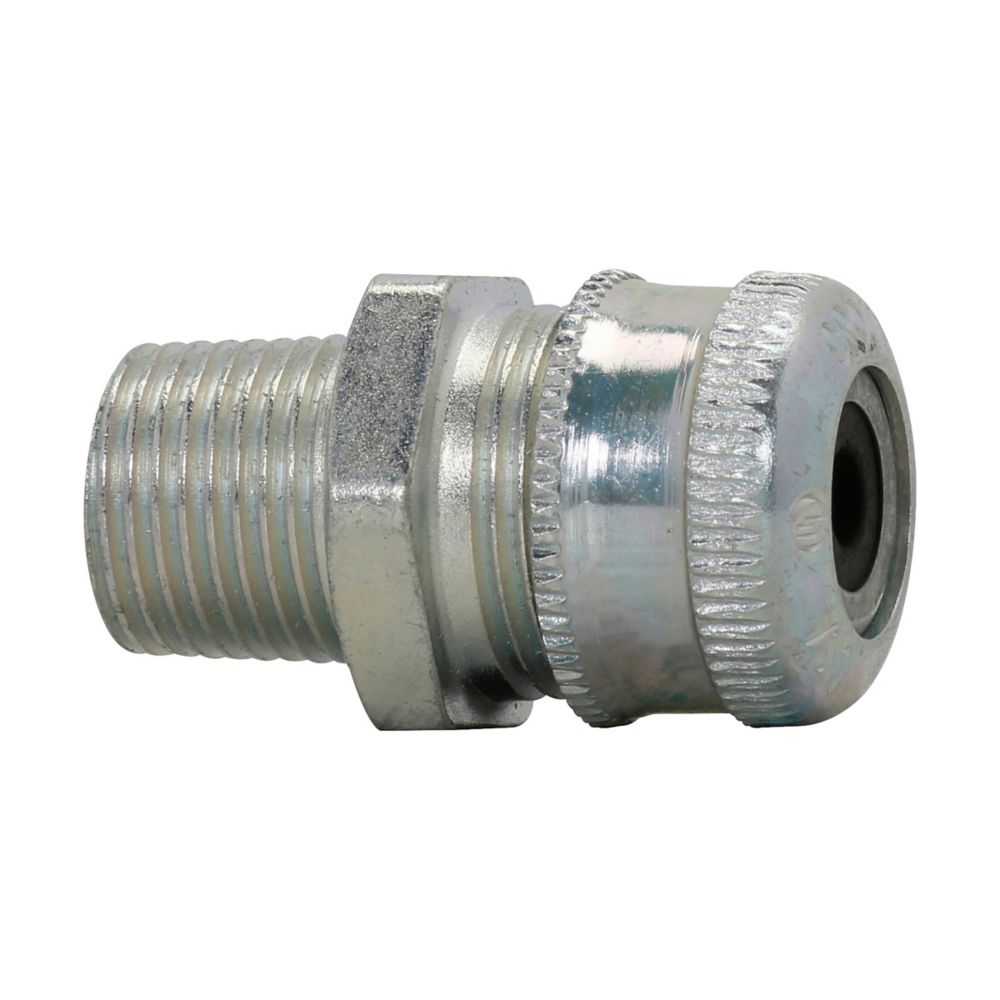

CGFP7920 - Eaton Crouse-Hinds Series - 2-1/2" CGFP Cable Gland
Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 2.188-2.500", General purpose, 2-1/2" NPT
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series CGFP cable gland |
| Catalog Number | CGFP7920 |
| UPC | 782274154107 |
| Product Length/Depth | 4.69 in |
| Product Height | 3.88 in |
| Product Width | 3.88 in |
| Product Weight | 3.85 lb |
| Product Type | Cable gland |
PRODUCT SPECIFICATIONS
| Protection type | General purpose |
| Cable type | Tray cable Non-armoured |
| Gland type | Non-armoured |
| Thread Size | 2-1/2" |
| Thread type | NPT |
| Outer sheath (min/max) | 2.188-2.500" |
| Material | Feraloy iron alloy |
