Description
General specifications

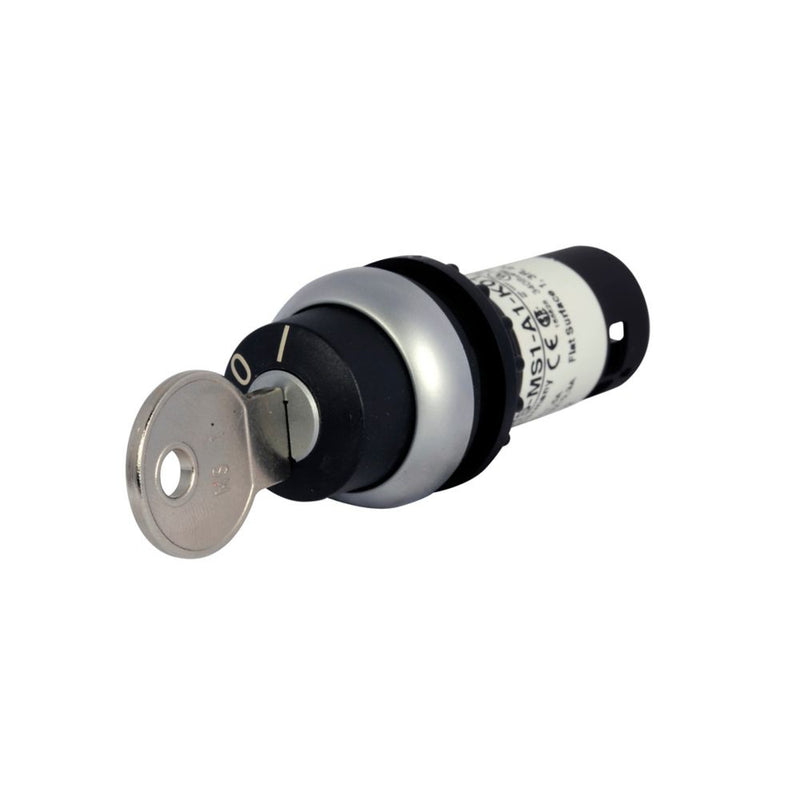

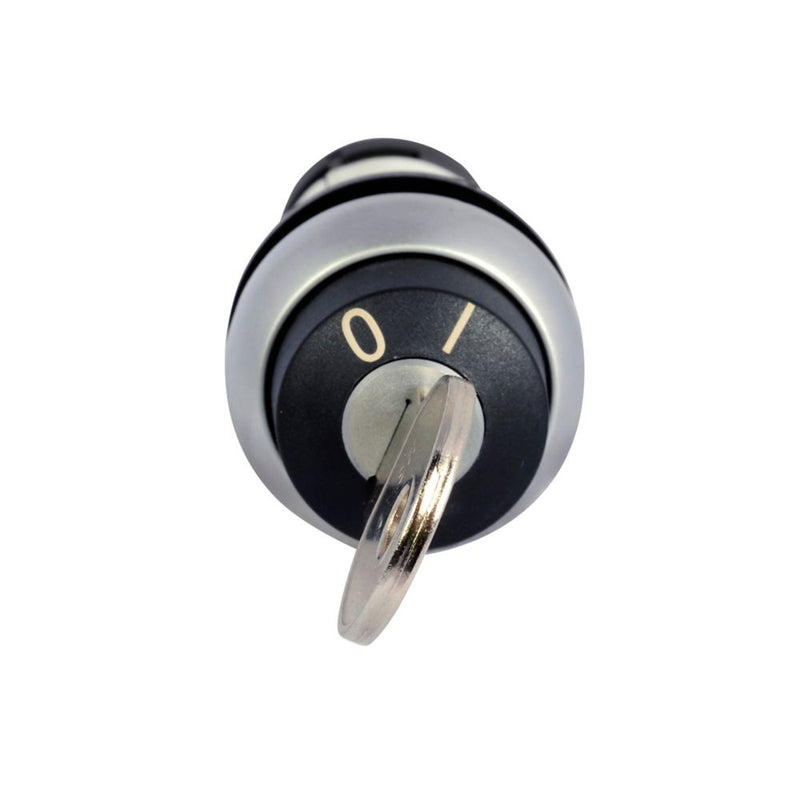

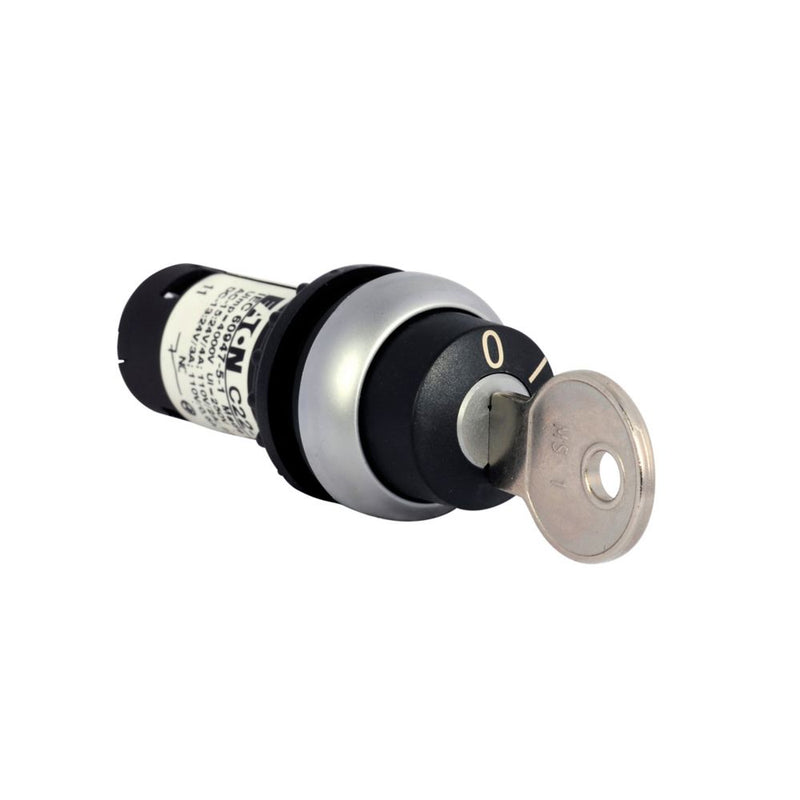

| Product Name | Eaton C22 compact pushbutton |
| Catalog Number | C22-WRS-MS1-K02 |
| EAN | 4015081297788 |
| Product Length/Depth | 1.17 in |
| Product Height | 3.63 in |
| Product Width | 1.17 in |
| Product Weight | 0.06 lb |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Compliances | DIN VDE 0600 |
| Certifications | CSA Certified UL Listed IEC 60947 EN 60947 |
| Catalog Notes | Maintained pushbuttons can be converted in the field to momentary operation by switching the locking ring, which is accessible through the side of the operator body. |
| Product Type | Compact pushbutton |
Product specifications
| Type | Selector Switch |
| Bezel | Silver |
| Actuator function | Maintained, key removal left/right 40° |
| Button color | Black |
| Actuator | Key operated |
| Size | 22.5 mm |
| Contact configuration | 2 NC |
| Illumination | Non-illuminated |
| Color | Black |
| Number of positions | 2 |
| Series | C22 |
