Description
General specifications

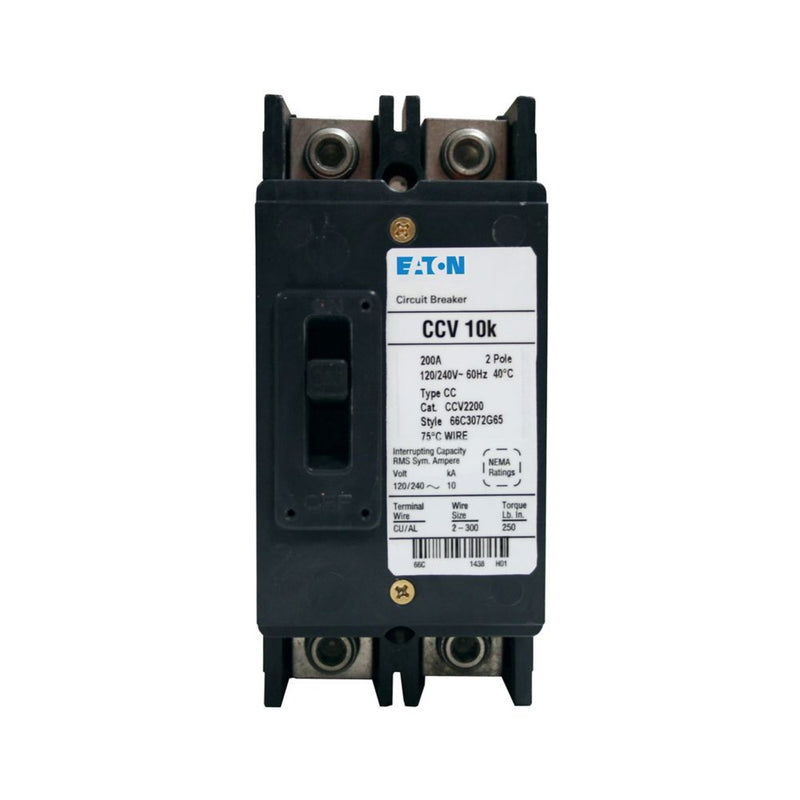

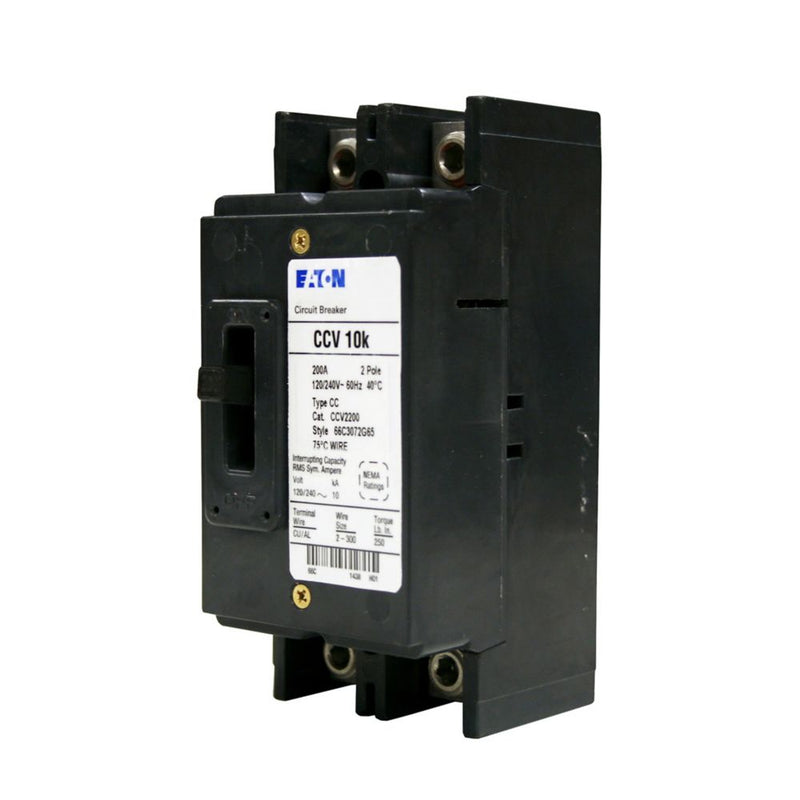

| Product Name | Eaton CCV tenant main breaker |
| Catalog Number | CCV2125 |
| UPC | 786685368399 |
| Product Length/Depth | 7.7 in |
| Product Height | 5.4 in |
| Product Width | 4.5 in |
| Product Weight | 2.9 lb |
| Warranty | Limited lifetime residential, 1 year commercial |
| Certifications | UL 489 |
| Catalog Notes | Terminals-standard lugs (wire connectors) suitable for copper or aluminum wire. |
| Product Type | Tenant main breaker |
Product specifications
| Used with | Type ECC Unit Enclosures |
| Amperage Rating | 125 A |
| Voltage rating | 120/240 V |
| Circuit breaker frame type | CCV |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | CCV |
| Wire size | #2/0 AWG-300 kcmil Cu/Al |
| Number of poles | Two-pole |
| Type | Tenant main circuit breaker |
