Description
General specifications

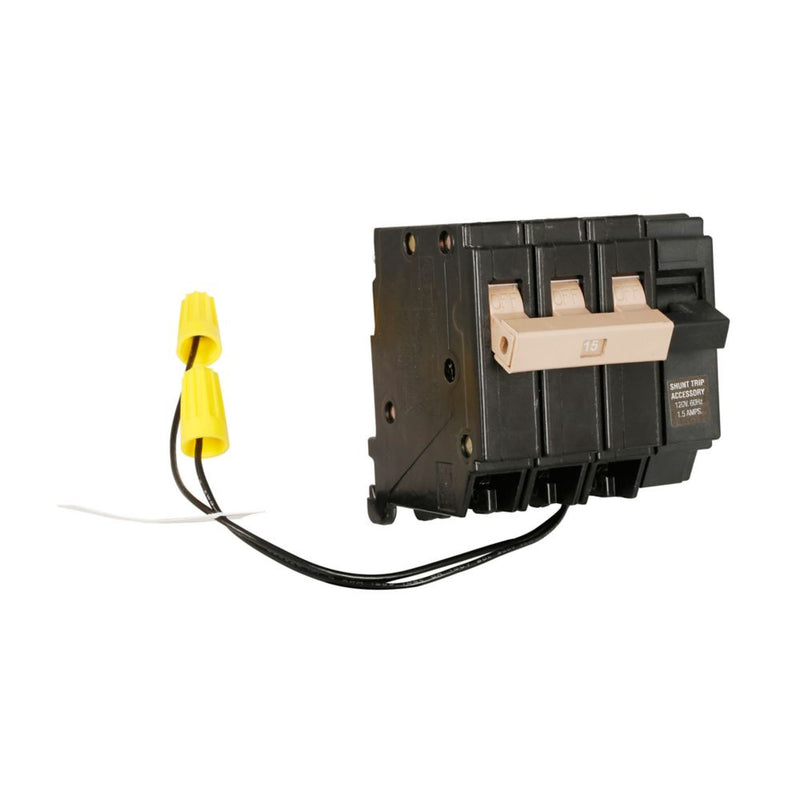

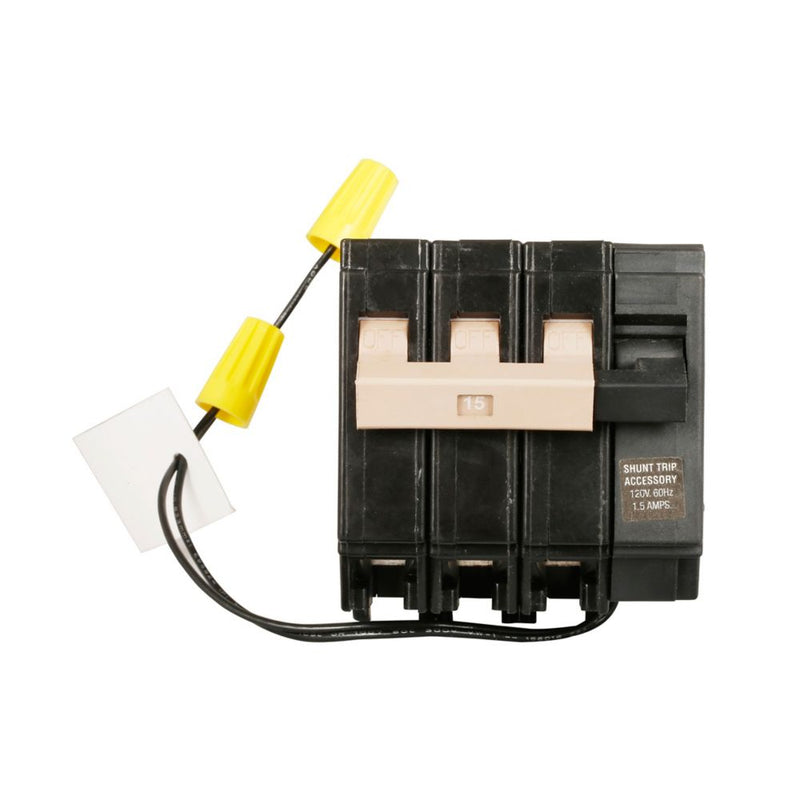

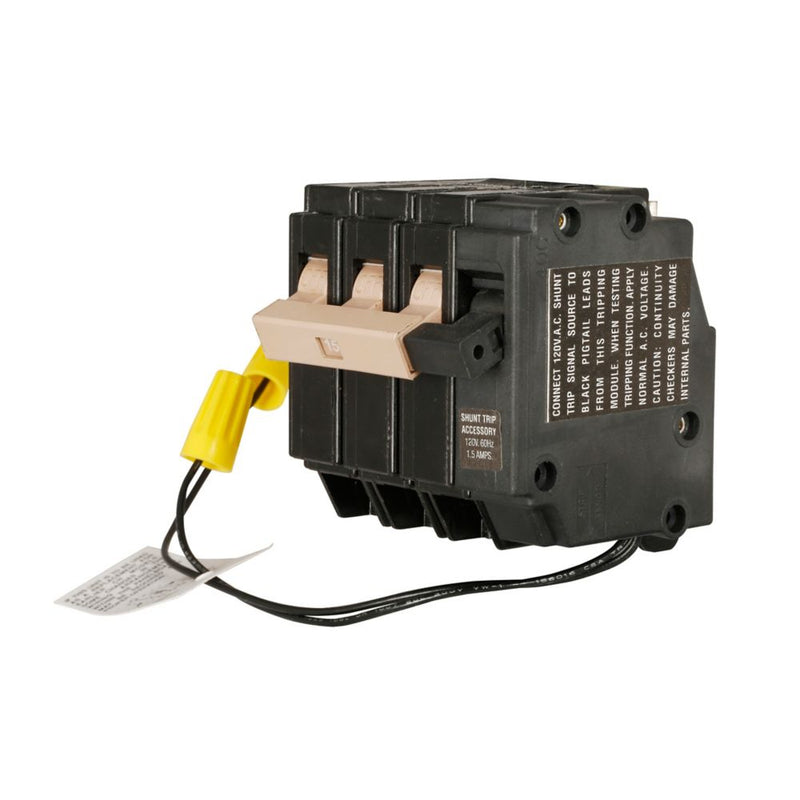

| Product Name | Eaton CH thermal magnetic circuit breaker |
| Catalog Number | CH340ST |
| UPC | 782113322124 |
| Product Length/Depth | 4.5 in |
| Product Height | 3.5 in |
| Product Width | 4.5 in |
| Product Weight | 1.15 lb |
| Warranty | Limited lifetime residential, 1 year commercial |
| Certifications | UL 489 |
| Catalog Notes | Three-Pole 240V Common Trip Requires Three 3/4-Inch Spaces |
| Product Type | Thermal magnetic circuit breakers |
Product specifications
| Used with | Type CH Loadcenters |
| Amperage Rating | 40 A |
| Voltage rating | 240 V - 240 V |
| Trip Type | Common breaker trip |
| Circuit breaker type | CH |
| Shunt trip | Included |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | CH |
| Wire size | #10-1/0 AWG Cu/Al |
| Number of poles | Three-pole |
| Type | Type CH 3/4-Inch standard circuit breaker |
| Special features | Shunt Trip |
