Description
General specifications

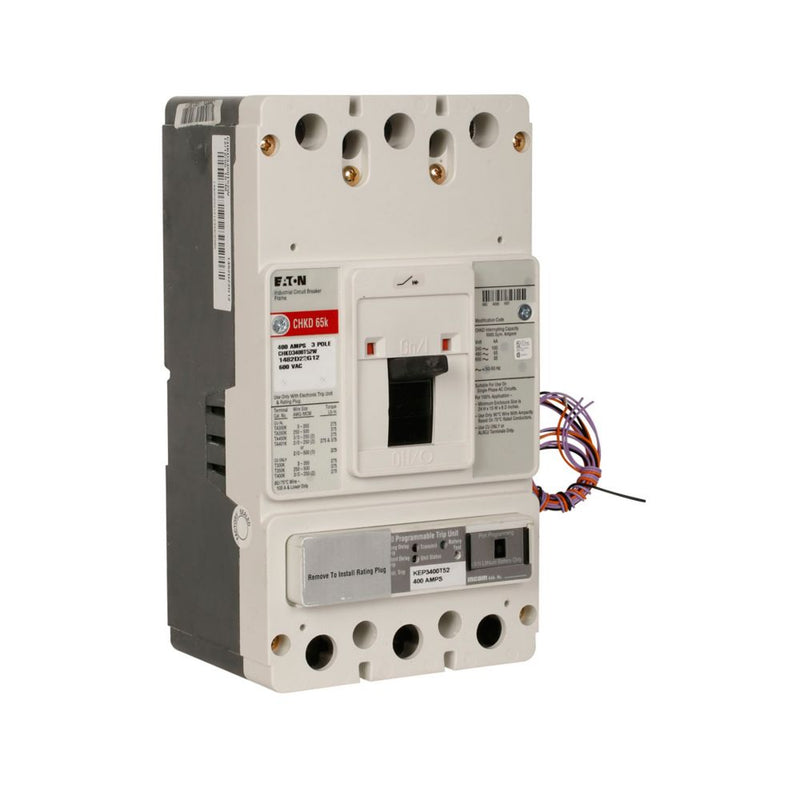

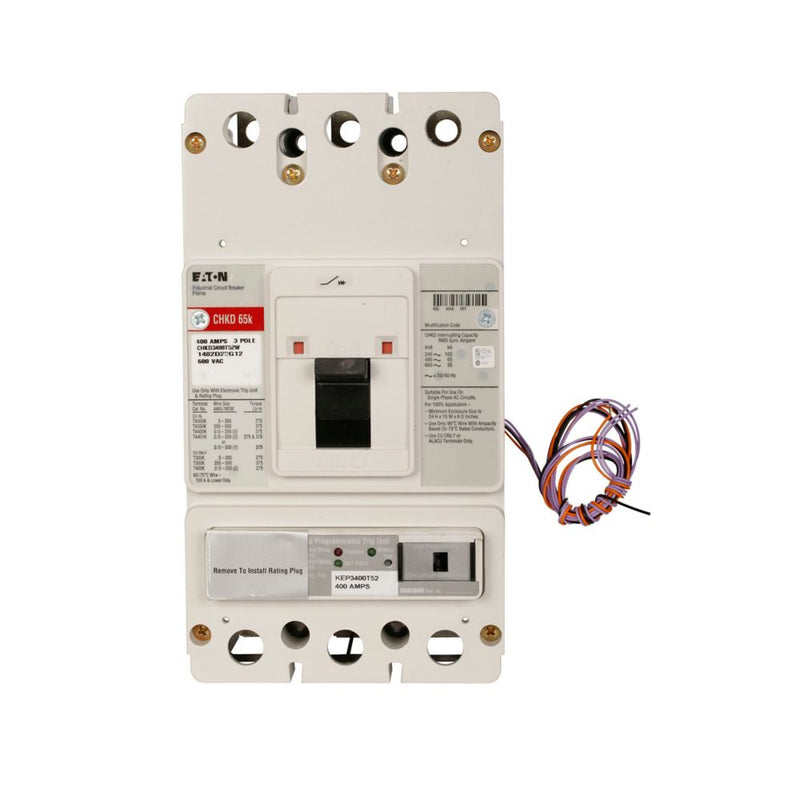

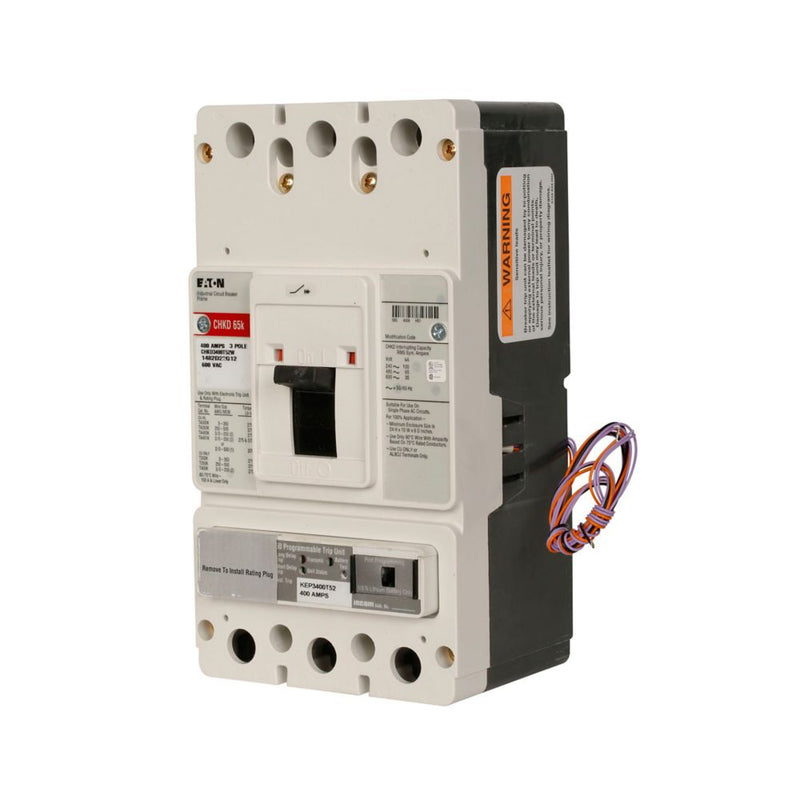

| Product Name | Eaton Series C molded case circuit breaker frame |
| Catalog Number | CKD3400F |
| UPC | 786679346402 |
| Product Length/Depth | 6 in |
| Product Height | 6.3 in |
| Product Width | 7 in |
| Product Weight | 9.9 lb |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Certifications | UL Listed |
| Product Type | Molded case circuit breaker |
Product specifications
| Amperage Rating | 400 A |
| Voltage rating | 600 Vac, 250 Vdc |
| Trip Type | T186 |
| Circuit breaker type | CKD |
| Circuit breaker frame type | Frame only |
| Rating | 100% rated |
| Series | Series C |
| Frame | K |
| Frequency rating | 50 to 60 Hz |
| Interrupt rating | 35 kAIC at 480 Vac 25 kAIC at 600 Vac |
| Number of poles | Three-pole |
| Type | Frame only |
