Description
General specifications

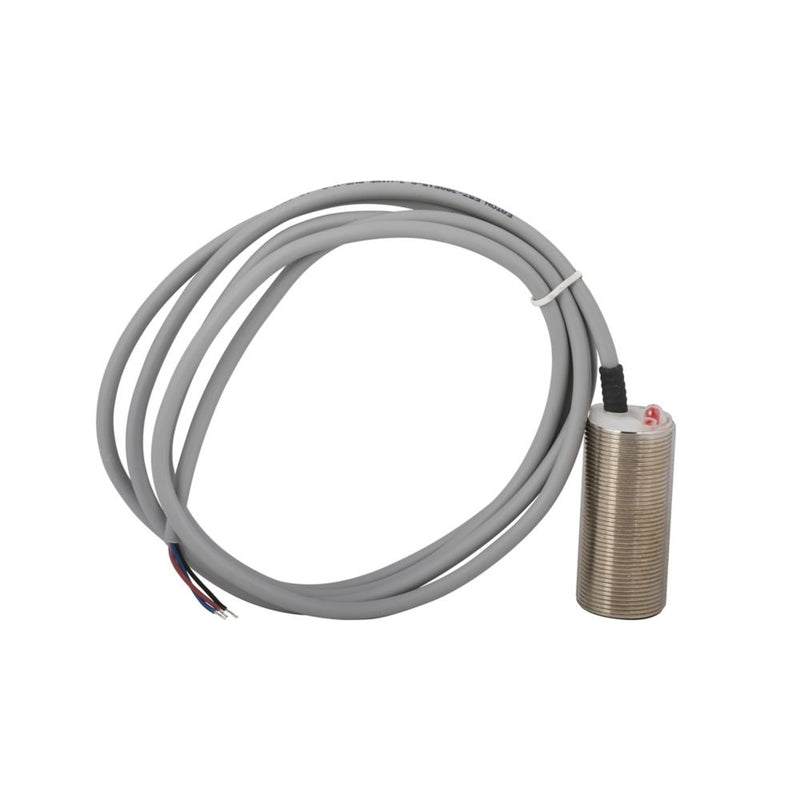

| Product Name | Eaton E57 inductive proximity sensor |
| Catalog Number | E57-18LE20-A1 |
| UPC | 782113933429 |
| Product Length/Depth | 0.71 in |
| Product Height | 2.6 in |
| Product Width | 0.71 in |
| Product Weight | 0.2938 lb |
| Warranty | 1 year |
| Compliances | CE Marked |
| Certifications | UL Listed CSA Certified |
| Product Type | Inductive proximity sensor |
Product specifications
| Contact Rating | 300 mA at 132 Vac |
| Actuator function | Non-embeddable |
| Cable type | Polyvinyl Chloride (PVC) |
| Accuracy | < 3% of sensing distance |
| Enclosure material | End bell: polycarbonate Front cap: polyphenylene sulfide Tube: stainless steel |
| Connection | 6.6 ft (2 m) cable |
| Contact configuration | 2-wire AC, NC |
| Series | E57 |
| Sensor type | Inductive proximity |
| Environmental rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Cord length | 79.2 ft |
| Operating temperature - max | 158 °F |
| Operating temperature - min | -13 °F |
| Maximum AC current | 300 mA |
| Input voltage | 20-132 Vac |
| LED indicator | Green power up turns red when output energized |
| Protection | None |
