Description
General specifications

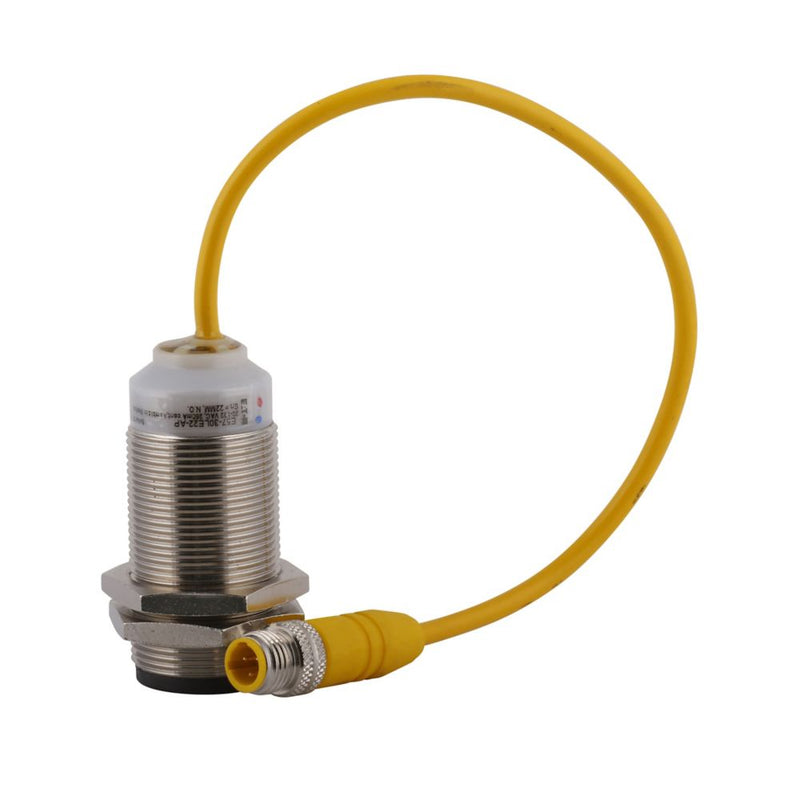

| Product Name | Eaton E57 inductive proximity sensor |
| Catalog Number | E57-30LE22-AP |
| UPC | 782114009413 |
| Product Length/Depth | 2.67 in |
| Product Height | 1.18 in |
| Product Width | 1.18 in |
| Product Weight | 0.45 lb |
| Warranty | 1 year |
| Compliances | CE Marked |
| Certifications | CSA Certified UL Listed |
| Product Type | Inductive proximity sensor |
Product specifications
| Type | Inductive Proximity Sensor |
| Contact Rating | 250 mA at 250V |
| Actuator function | Shielded |
| Accuracy | < 3% sensing range |
| Enclosure material | 303 stainless steel |
| Connection | Dual key micro (pigtail) |
| Contact configuration | 2-wire AC, NO |
| Series | E57 |
| Environmental rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Number of pins | 3 |
| Operating temperature - max | 158 °F |
| Operating temperature - min | -13 °F |
| Maximum AC current | 250 mA |
| Input voltage | 20-132 V |
| LED indicator | 360 ° viewable LED |
Product Datasheet
E57-30LE22-AP
E57-30LE22-AP
