Description
General specifications

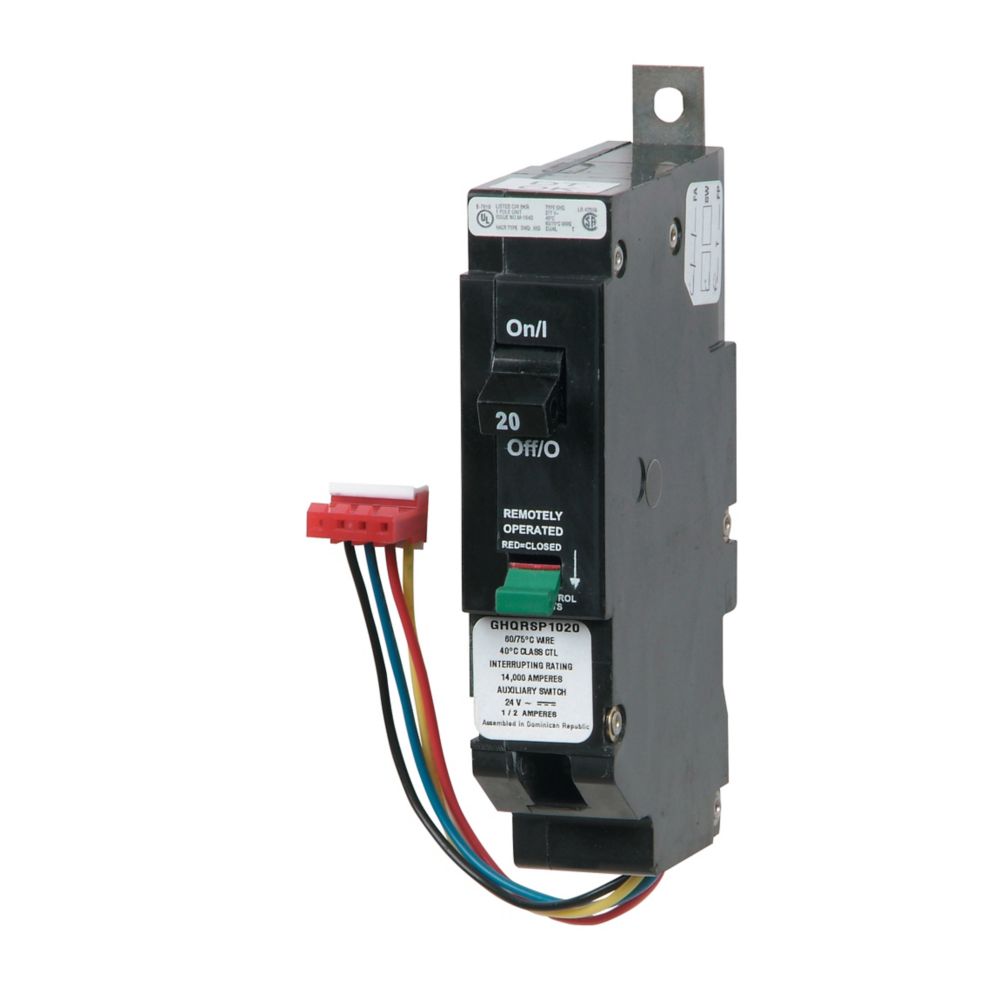

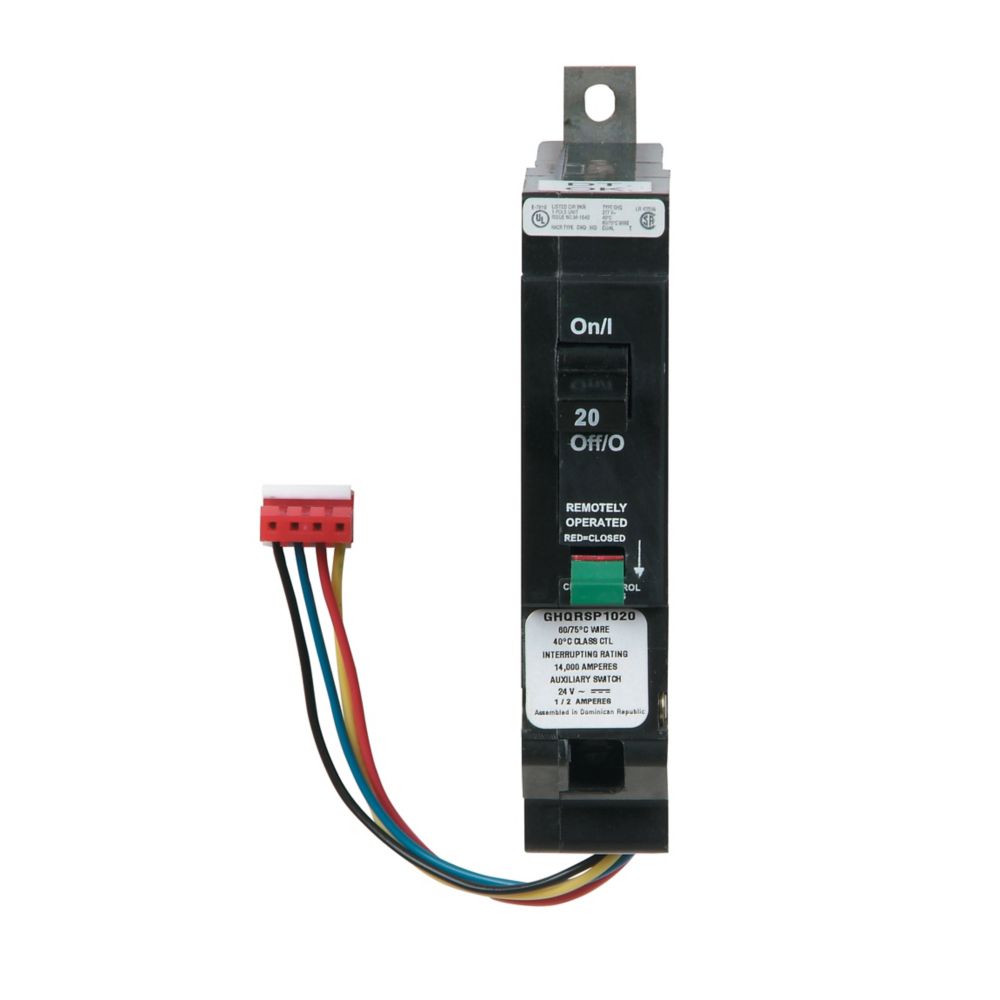

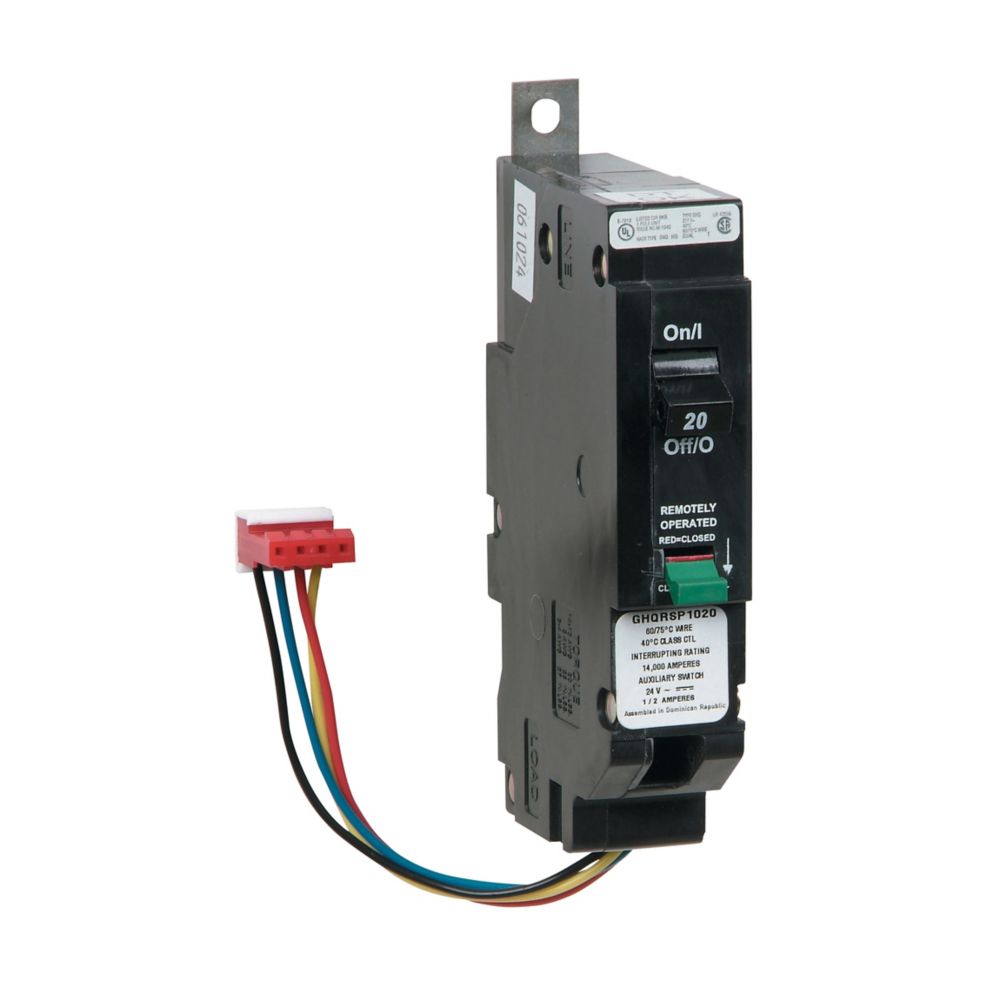

| Product Name | Eaton GHQ thermal magnetic circuit breaker |
| Catalog Number | GHQRSP1020 |
| UPC | 786679137949 |
| Product Length/Depth | 6.25 in |
| Product Height | 1.25 in |
| Product Width | 3.25 in |
| Product Weight | 0.72 lb |
| Certifications | CSA Std. C22.2 UL 489 |
| Catalog Notes | Continuous current rating at 40°C. All UL listed circuit breakers are HID (high intensity discharge) rated. |
| Product Type | Thermal magnetic circuit breakers |
Physical Attributes
| Circuit breaker type | GHQRSP |
| Type | Thermal magnetic circuit breakers |
Performance Ratings
| Amperage Rating | 20 A |
| Interrupt rating | 14 kAIC at 480Y/277 Vac 65 kAIC at 120 Vac |
| Voltage rating | 120,120/240,277,480Y/277V |
