Description
General specifications

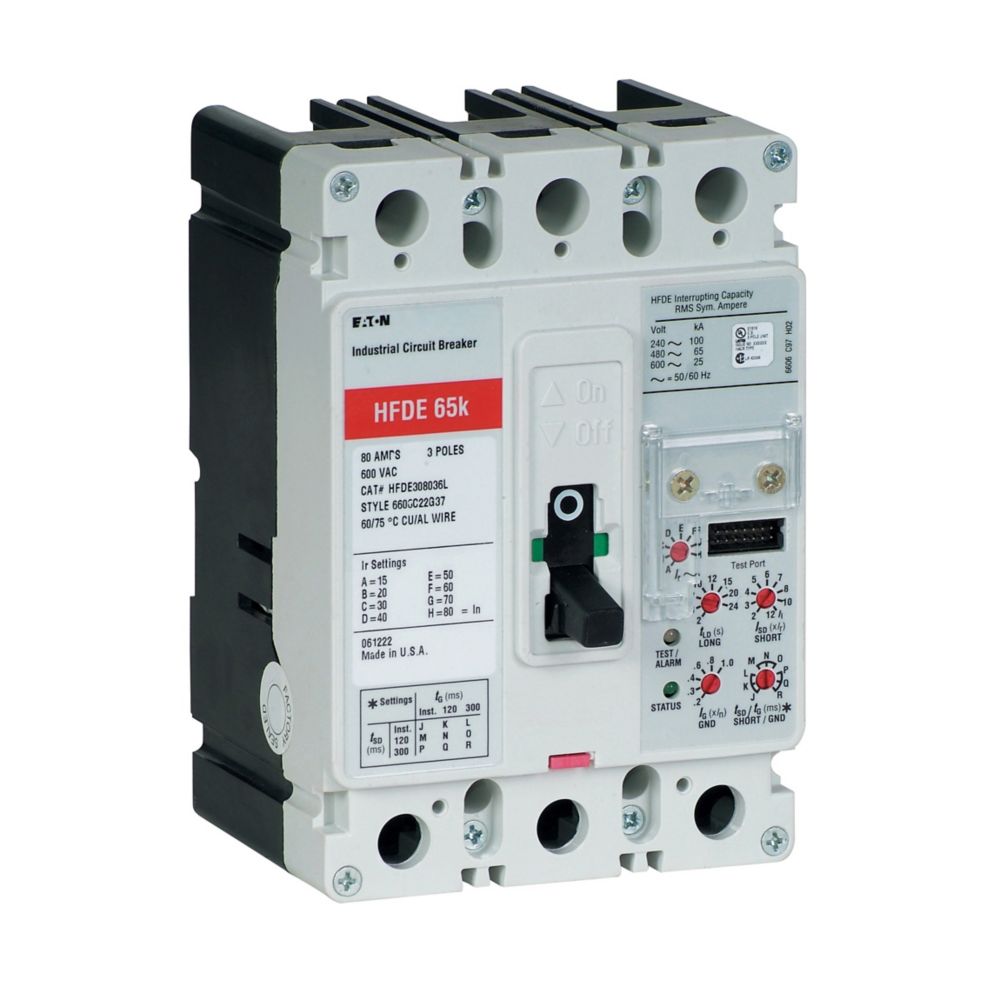

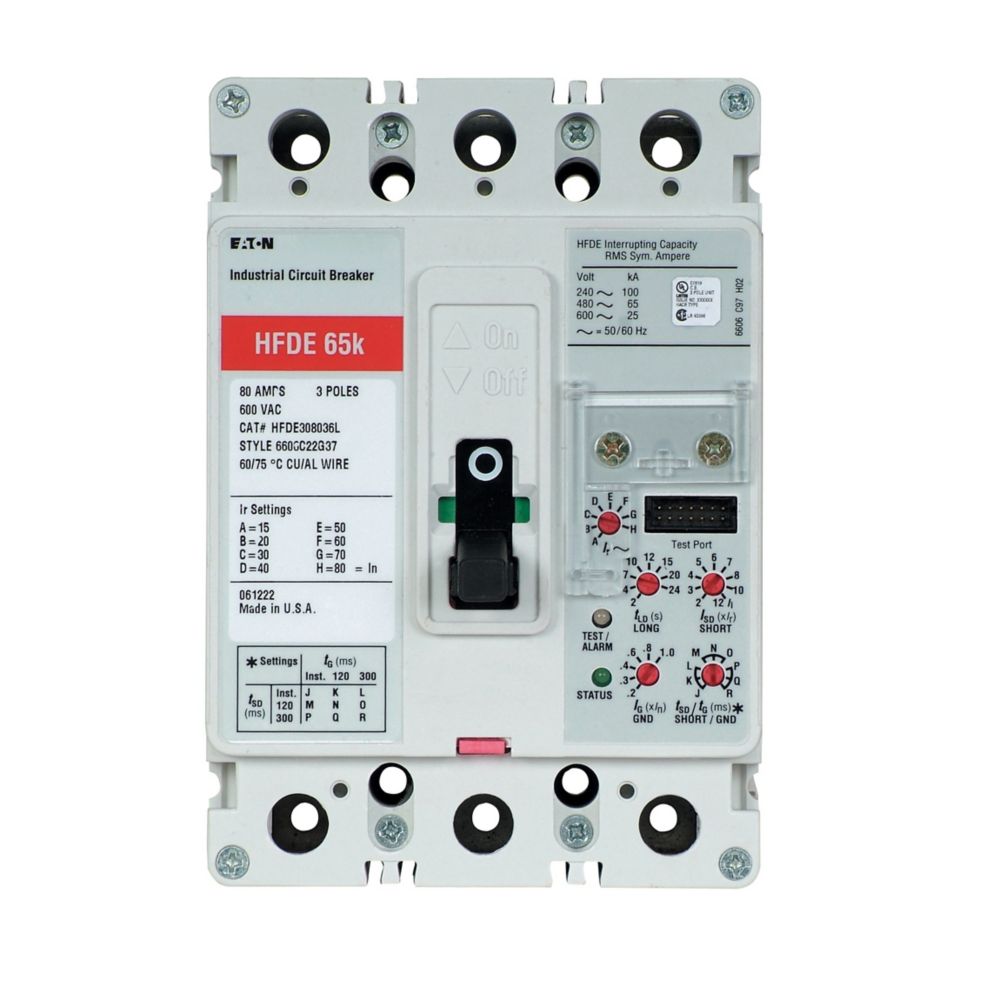

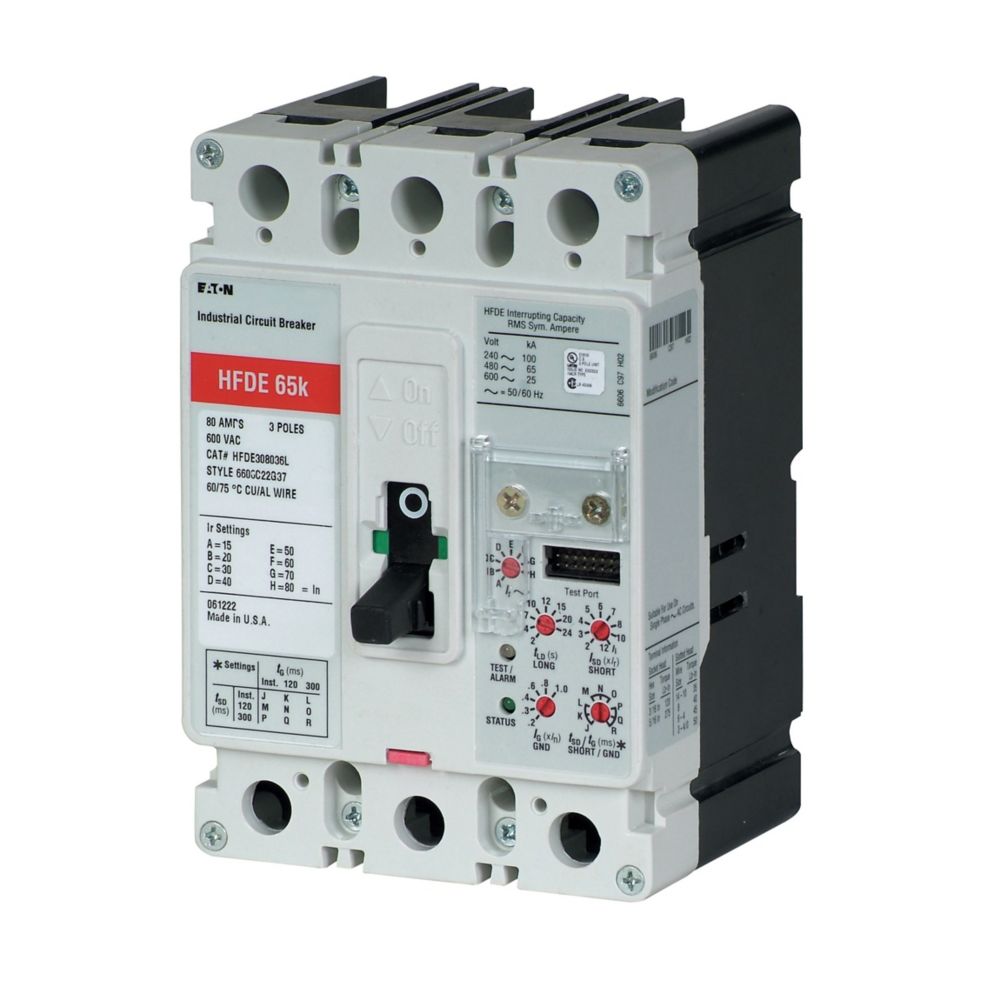

| Product Name | Eaton Series C electronic molded case circuit breaker |
| Catalog Number | HFDE322522L |
| UPC | 786685982649 |
| Product Length/Depth | 3.38 in |
| Product Height | 4.13 in |
| Product Width | 4.13 in |
| Product Weight | 4.5 lb |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Certifications | UL Listed |
| Product Type | Electronic molded case circuit breaker |
Product specifications
| Amperage Rating | 225 A |
| Trip Type | Electronic LSI |
| Circuit breaker type | HFDE |
| Circuit breaker frame type | Complete breaker |
| Magnetic trip range | 100-225A |
| Series | Series C |
| Terminals | Line and load |
| Frame | F |
| Frequency rating | 50 to 60 Hz |
| Interrupt rating | 65 kAIC at 480 Vac 100 kAIC at 240 Vac |
| Number of poles | Three-pole |
| Trip rating | 100-225 A |
