Description
General specifications

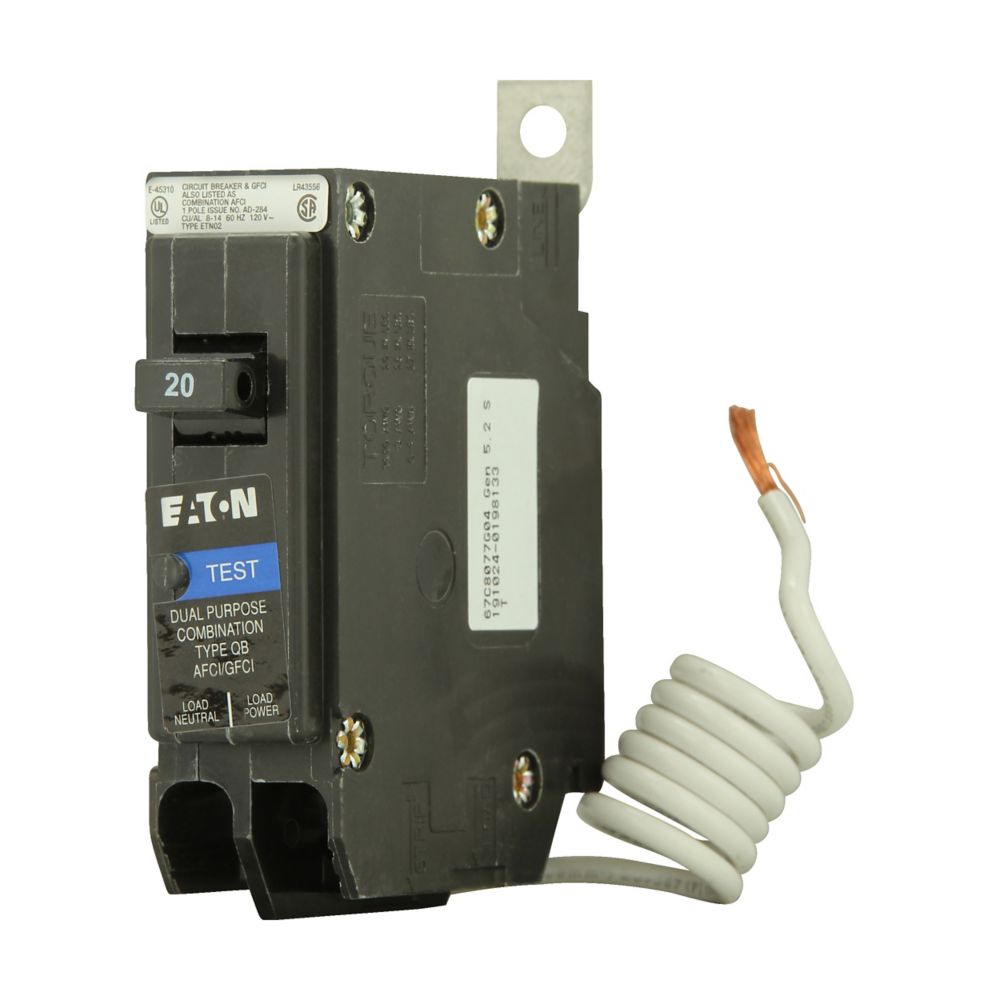

| Product Name | Eaton QB GFCI circuit breaker |
| Catalog Number | QB1015EP |
| UPC | 786679185988 |
| Product Length/Depth | 4 in |
| Product Height | 1 in |
| Product Width | 3.5 in |
| Product Weight | 0.45 lb |
| Warranty | 1 year |
| Certifications | UL 489 |
| Product Type | GFCI circuit breakers |
Physical Attributes
| Circuit breaker type | QB |
| Connection | Bolt-on |
| Mounting Method | Bolt-on |
| Number of poles | Single-pole |
| Type | Bolt-on equipment protection |
| Wire size | #14-4 AWG |
Performance Ratings
| Amperage Rating | 15 A |
| Interrupt rating | 10 kAIC |
| Trip Type | Non-Interchangeable |
| Trip rating | 30 mA trip sensitivity |
| Voltage rating | 120/240 V |
Product Datasheet
QB1015EP
QB1015EP
