Description
General specifications

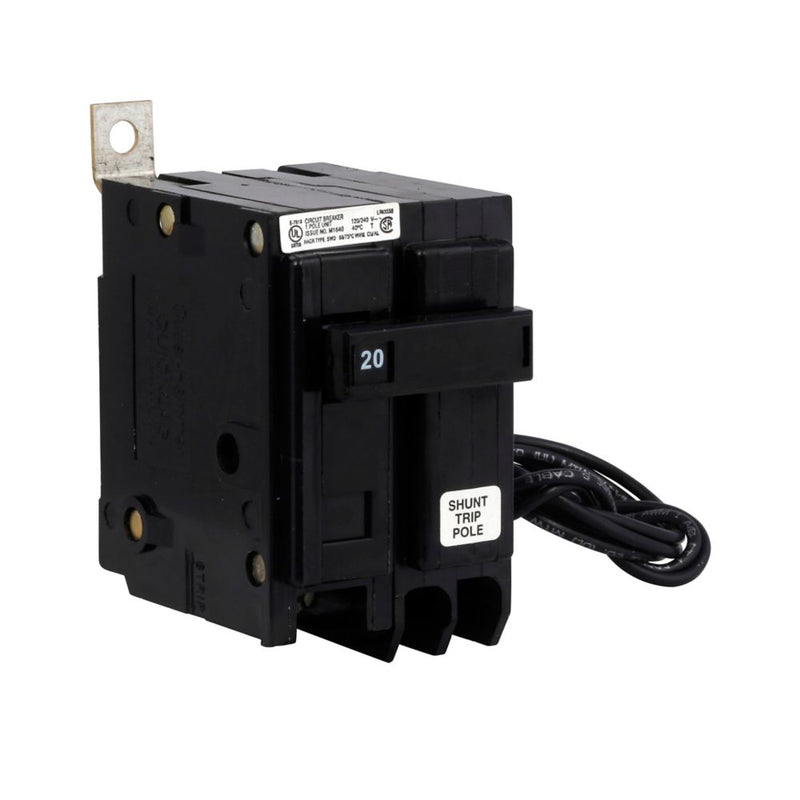

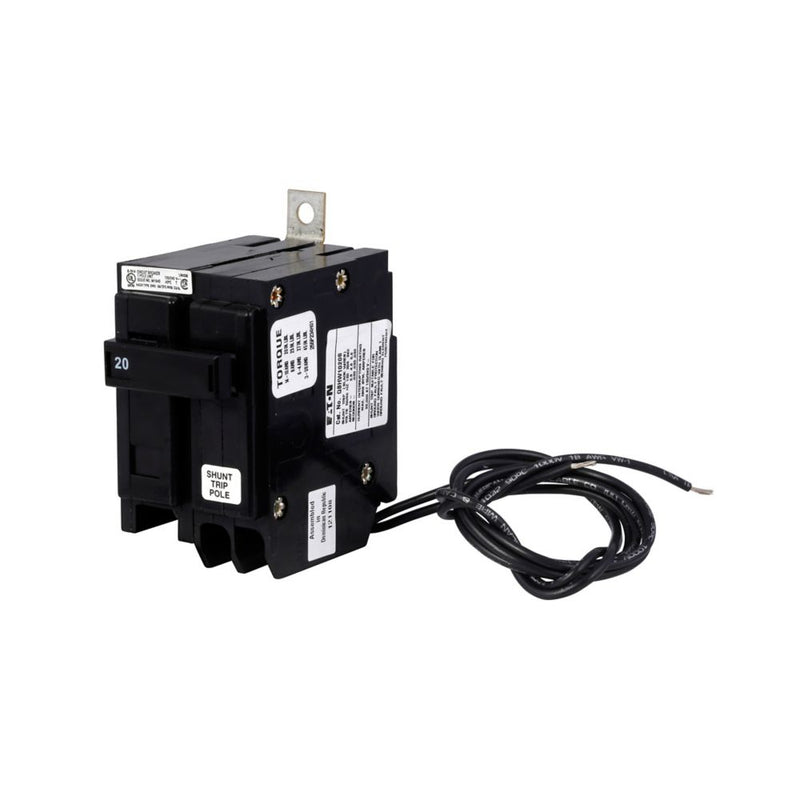

| Product Name | Eaton QB thermal magnetic circuit breaker |
| Catalog Number | QBHW1020S |
| UPC | 786679852804 |
| Product Length/Depth | 3.9 in |
| Product Height | 4.8 in |
| Product Width | 2 in |
| Product Weight | 0.6 lb |
| Warranty | 1 year |
| Certifications | UL Listed CSA Certified |
| Catalog Notes | HACR rated |
| Product Type | Thermal magnetic circuit breakers |
Physical Attributes
| Circuit breaker type | QBHW |
| Mounting Method | Bolt-on |
| Number of poles | Single-pole |
| Type | Quicklag |
Performance Ratings
| Amperage Rating | 20 A |
| Interrupt rating | 22 kAIC |
| Trip Type | Non-Interchangeable |
| Voltage rating | 120/240 V |
Miscellaneous
| Quantity | 17 |
| Special features | 120V, 208V, 240V shunt trip |
Product Datasheet
QBHW1020S
