Description
General specifications

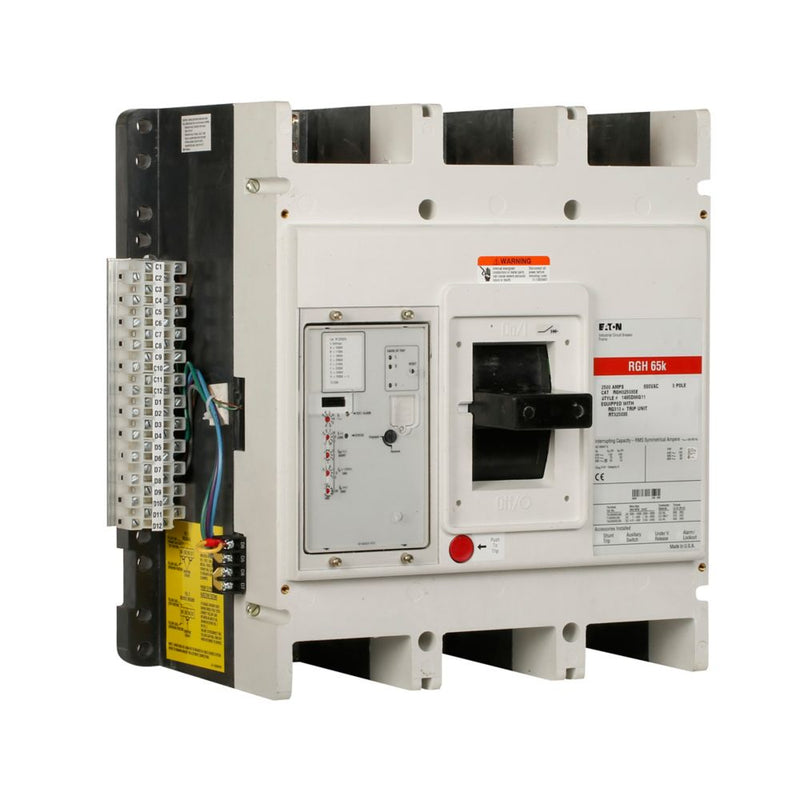

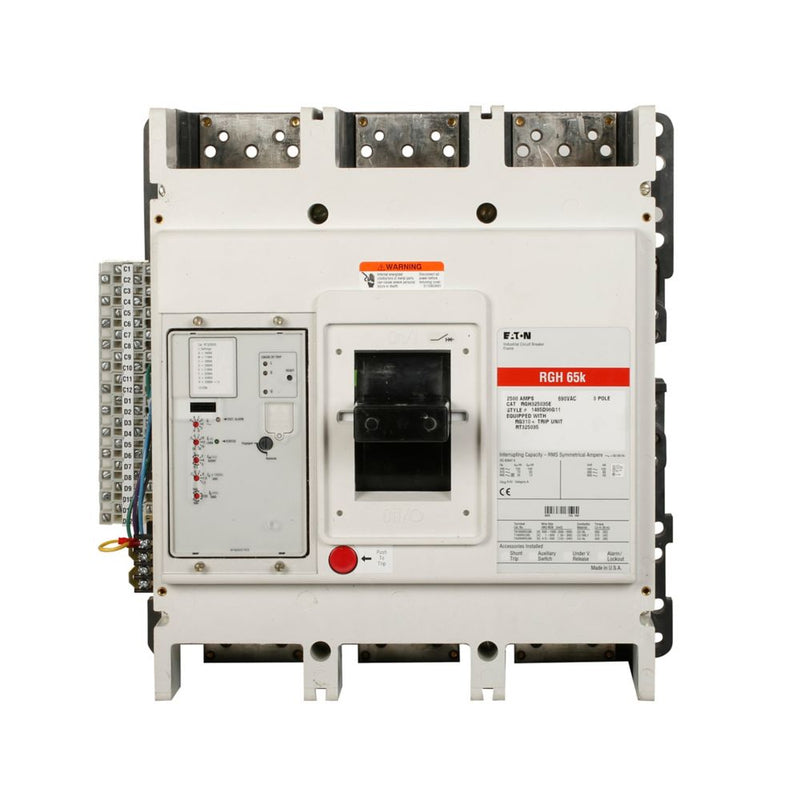

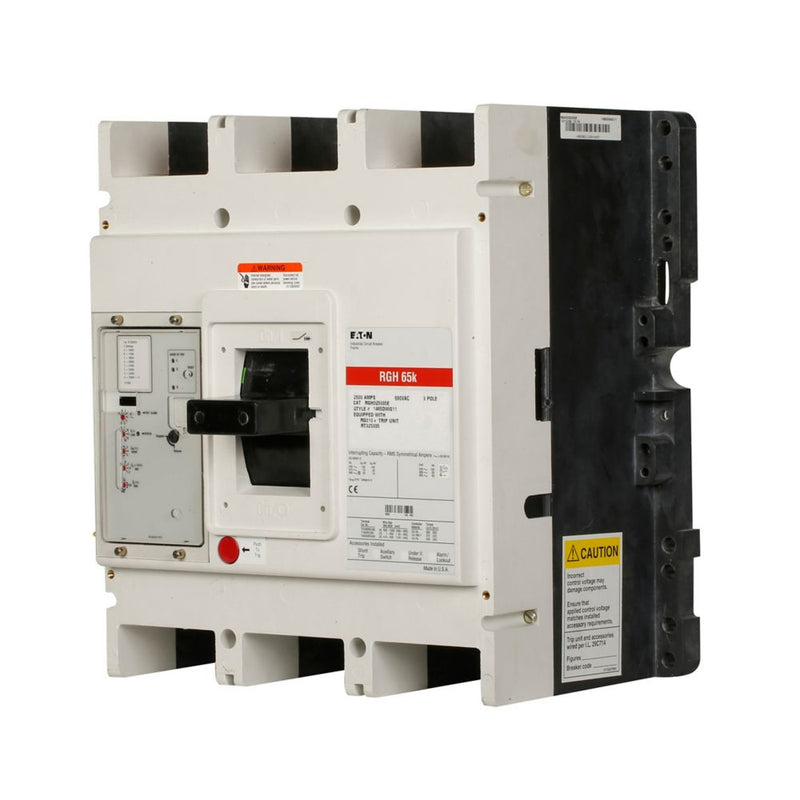

| Product Name | Eaton Series G electronic molded case circuit breaker |
| Catalog Number | RGH320032E |
| UPC | 786685574691 |
| Product Length/Depth | 9.75 in |
| Product Height | 15.5 in |
| Product Width | 15.5 in |
| Product Weight | 102 lb |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Certifications | UL Listed |
| Catalog Notes | All R-Frame circuit breakers are suitable for reverse feed use. Order terminals separately. Mounting hardware not included. |
| Product Type | Electronic molded case circuit breaker |
Product specifications
| Amperage Rating | 2000 A |
| Trip Type | Electronic LSI |
| Circuit breaker type | RG |
| Circuit breaker frame type | Complete breaker |
| Rating | 80% rated |
| Series | 80% rated |
| Terminals | Line and load |
| Interrupt rating | 125 kAIC at 240 Vac 65 kAIC at 480 Vac |
| Number of poles | Three-pole |
| Type | Complete breaker |
