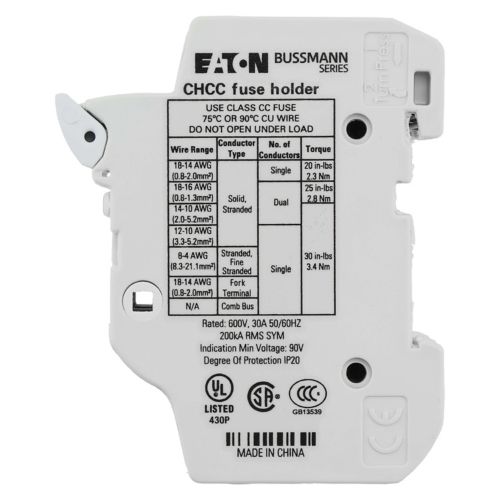

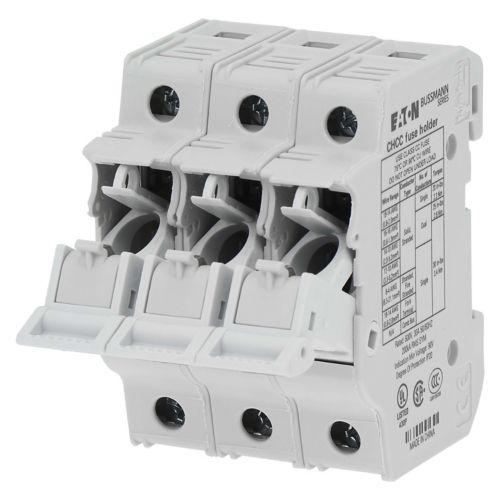

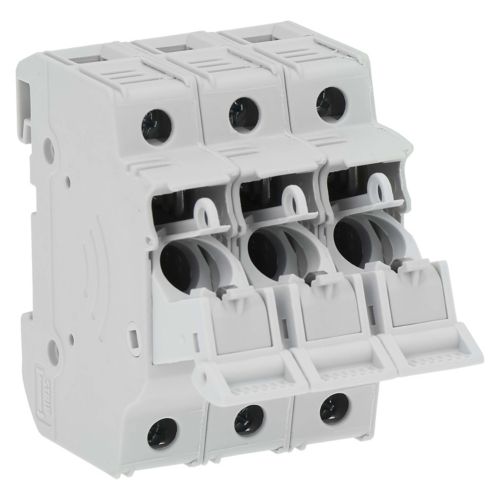

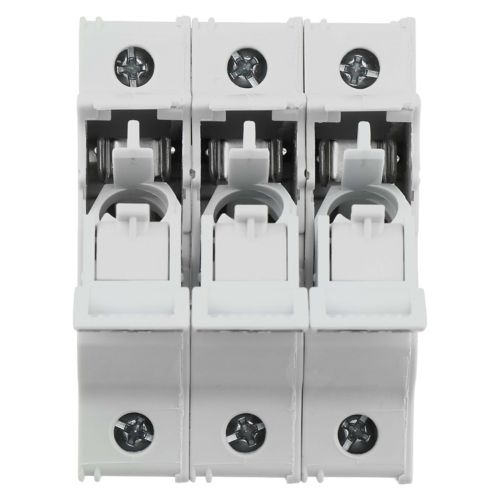

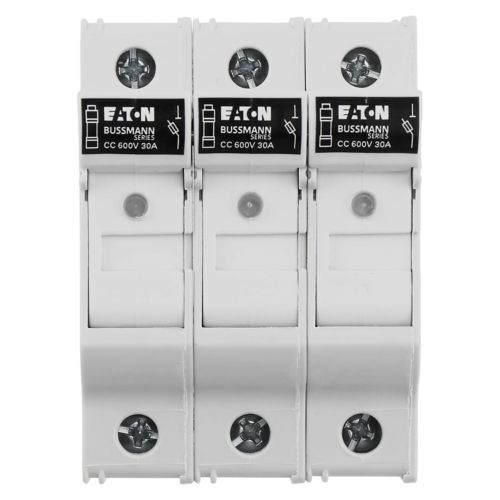

CHCC3DIU - Eaton Bussmann Series - 30A CHCC Modular Fuse Holder
Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30 A, Three-pole, With indicator
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series CHCC modular fuse holder |
| Catalog Number |
CHCC3DIU |
| UPC |
051712362702 |
| Product Length/Depth |
2.7 in |
| Product Height |
2.91 in |
| Product Width |
3.28 in |
| Product Weight |
0.3875 lb |
| Warranty |
Not Applicable |
| Compliances |
RoHS Compliant |
| Certifications |
Contact Manufacturer |
| Product Type |
Modular fuse holder |
ELECTRICAL RATING
| Amperage Rating |
30 A |
| Voltage rating |
48 Vdc |
PHYSICAL DETAILS
| Number of poles |
Three-pole |
| Operating temperature - max |
90 °C |
| Operating temperature - min |
-20 °C |
GENERAL INFORMATION
| Class |
Class CC |
| Used with |
For use with KTK-R, LP-CC and FNQ-R Class CC fuse |
PRODUCT DATASHEET
skuPage.CHCC3DIU.pdf
