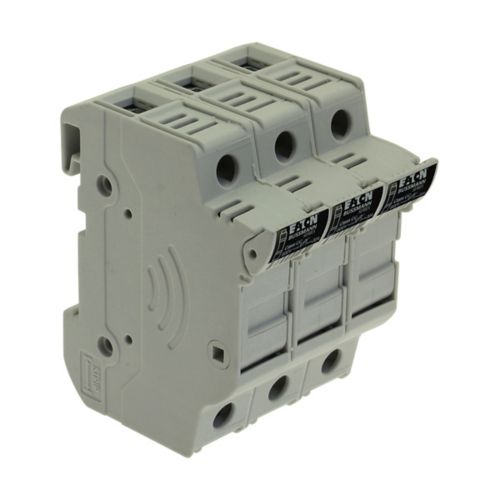

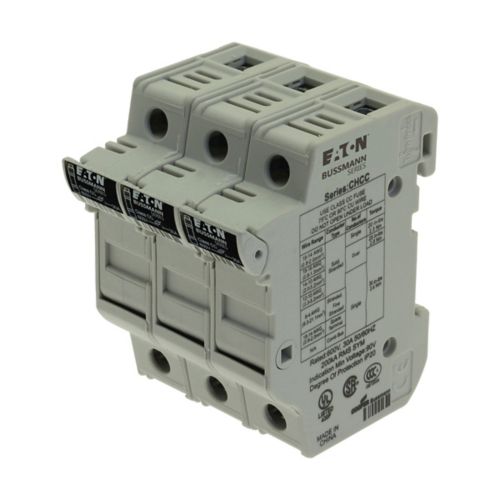

CHCC3DU - Eaton Bussmann Series - 30A CHCC Modular Fuse Holder
Eaton Bussmann series CHCC modular fuse holder, 600 Vdc, 30 A, Three-pole
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series CHCC modular fuse holder |
| Catalog Number |
CHCC3DU |
| UPC |
051712362696 |
| Product Length/Depth |
69 mm |
| Product Height |
74 mm |
| Product Width |
83 mm |
| Product Weight |
99.79 g |
| Warranty |
Not Applicable |
| Compliances |
RoHS Compliant |
| Certifications |
Contact Manufacturer |
| Product Type |
Modular fuse holder |
ELECTRICAL RATING
| Amperage Rating |
30 A |
| Voltage rating |
600 Vdc |
PHYSICAL DETAILS
| Number of poles |
Three-pole |
| Operating temperature - max |
120 °C |
| Operating temperature - min |
-20 °C |
GENERAL INFORMATION
| Class |
Class CC |
| Used with |
For use with KTK-R, LP-CC and FNQ-R Class CC fuse |
PRODUCT DATASHEET
skuPage.CHCC3DU.pdf
