Description

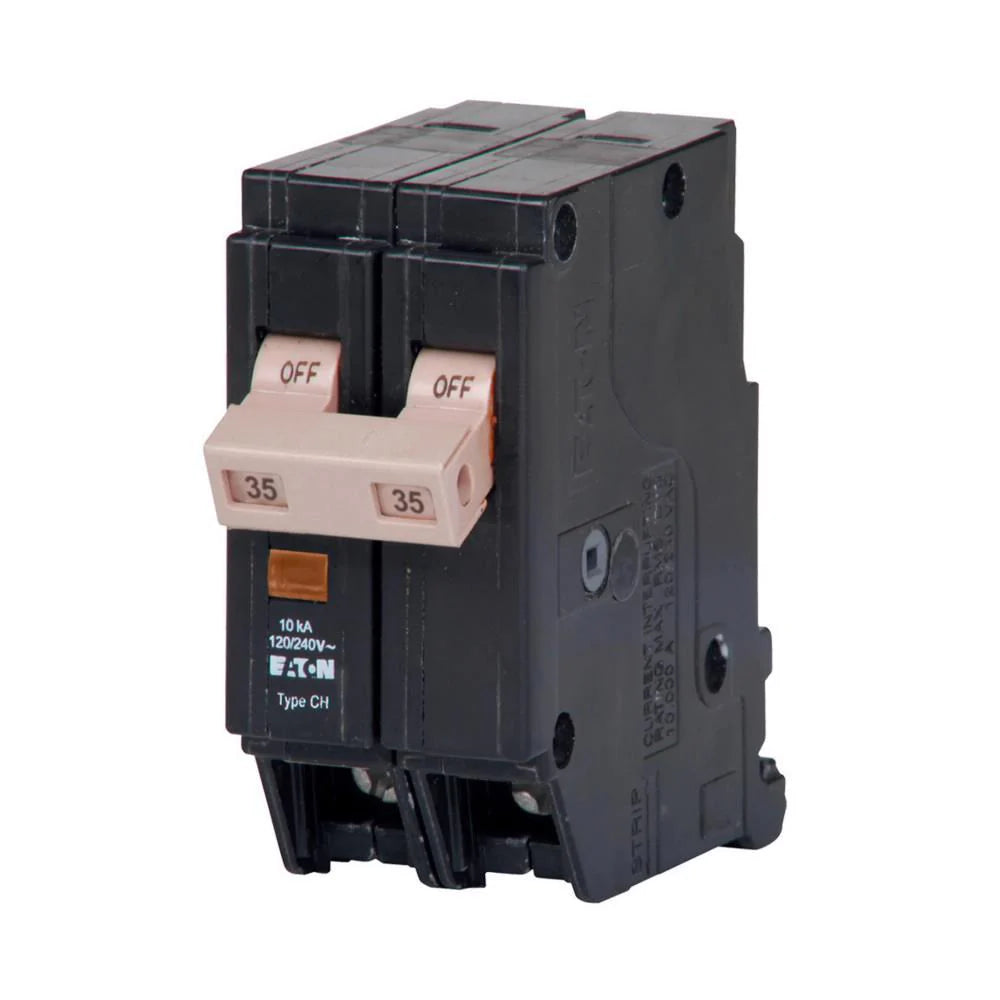

CHF235 - Eaton Cutler-Hammer - Plug-In 35 Amp 240 Volt 2 Pole Circuit Breaker
Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,35 A,10 kAIC,Two-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker
|
| Catalog Number |
CHF235
|
| UPC |
786685532158
|
| Product Length/Depth |
1.5 in
|
| Product Height |
2.6 in
|
| Product Width |
0.75 in
|
| Product Weight |
0.25 lb
|
| Compliances |
HACR Rated
|
| Certifications |
UL 489
|
| Catalog Notes |
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
|
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Type |
Type CHF 3/4-Inch standard circuit breaker
|
| Amperage Rating |
35 A
|
| Voltage rating |
120/240 V
|
| Trip Type |
Trip flag
|
| Circuit breaker type |
CHF
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CHF
|
| Wire size |
(1) #14-8 AWG
(2) #14-10 AWG Cu/Al |
| Number of poles |
Two-pole
|
