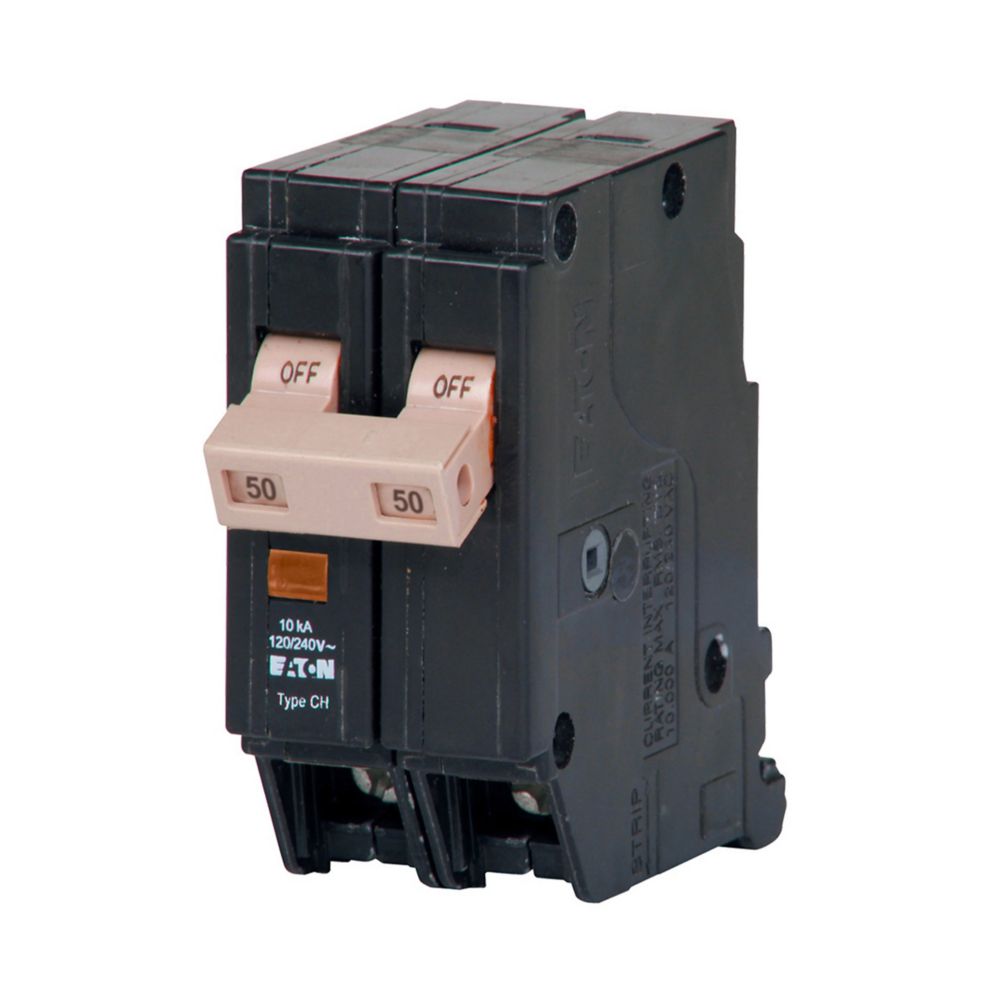

CHF250 - Eaton Cutler Hammer - 50 A Ch Thermal Magnetic Circuit Breakers
Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 50 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, #10-1/0 AWG Cu/Al, CHF, Type CH Loadcenters.
GENERAL SPECIFICATIONS
| Product Name |
Eaton CH thermal magnetic circuit breaker
|
| Catalog Number |
CHF250
|
| UPC |
786685532172
|
| Product Length/Depth |
1.5 in
|
| Product Height |
2.6 in
|
| Product Width |
0.75 in
|
| Product Weight |
0.28 lb
|
| Compliances |
HACR Rated
|
| Certifications |
UL 489
|
| Catalog Notes |
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
|
| Product Type |
Thermal magnetic circuit breakers
|
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Amperage Rating |
50 A
|
| Voltage rating |
120/240 V
|
| Trip Type |
Trip flag
|
| Circuit breaker type |
CHF
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CHF
|
| Wire size |
#10-1/0 AWG Cu/Al
|
| Number of poles |
Two-pole
|
| Type |
Type CHF 3/4-Inch standard circuit breaker
|
