| SKU |
CHM1DIU |
| descriptionLabel |

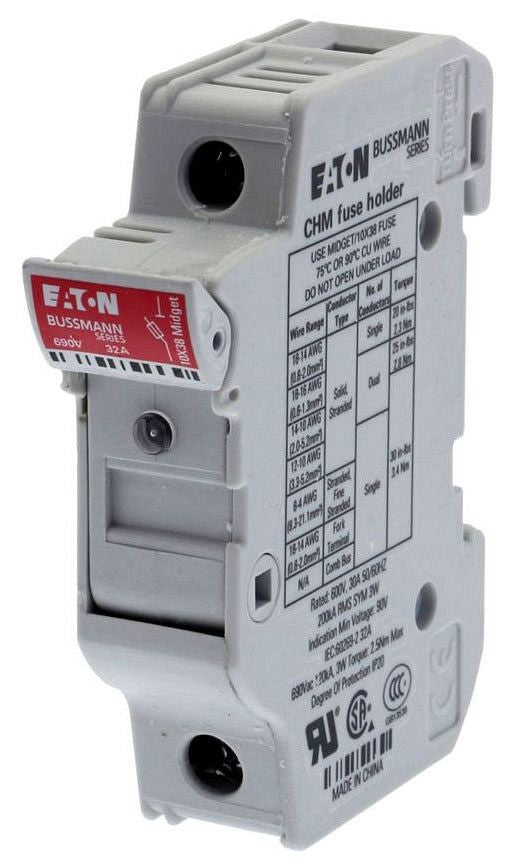

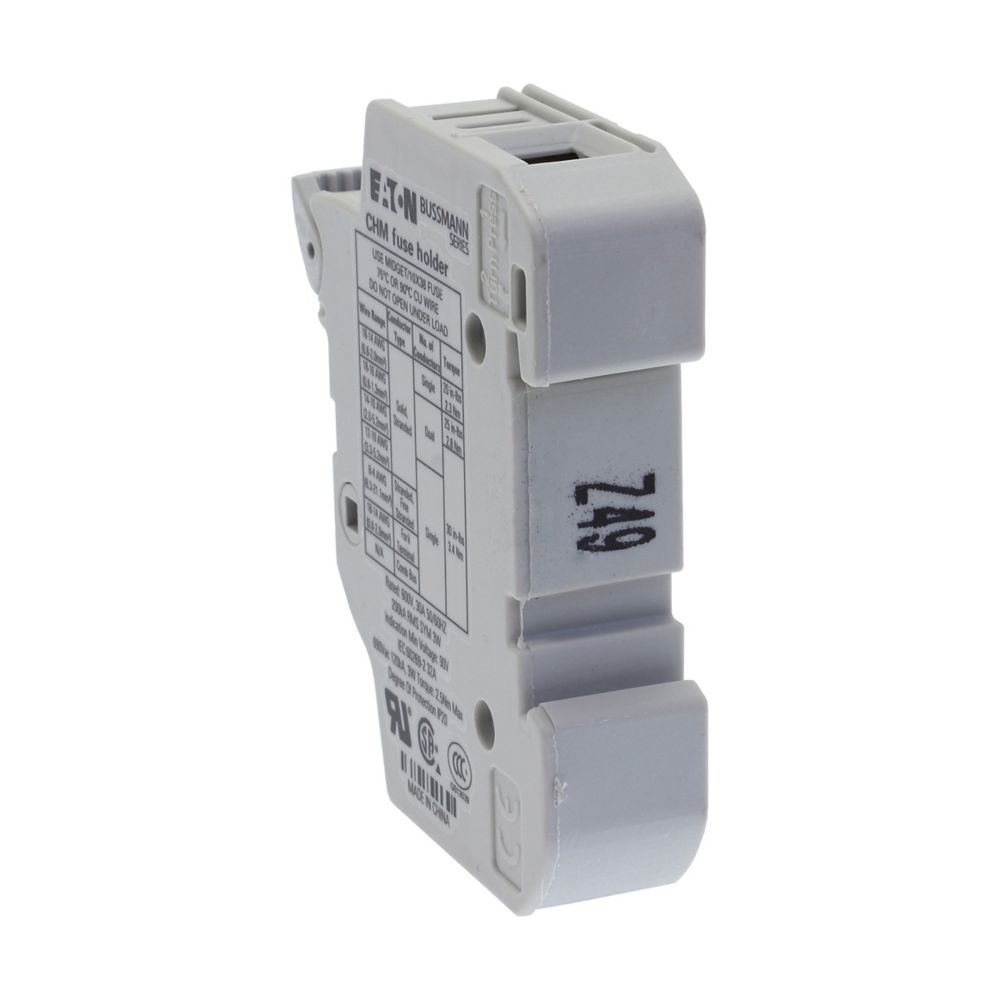

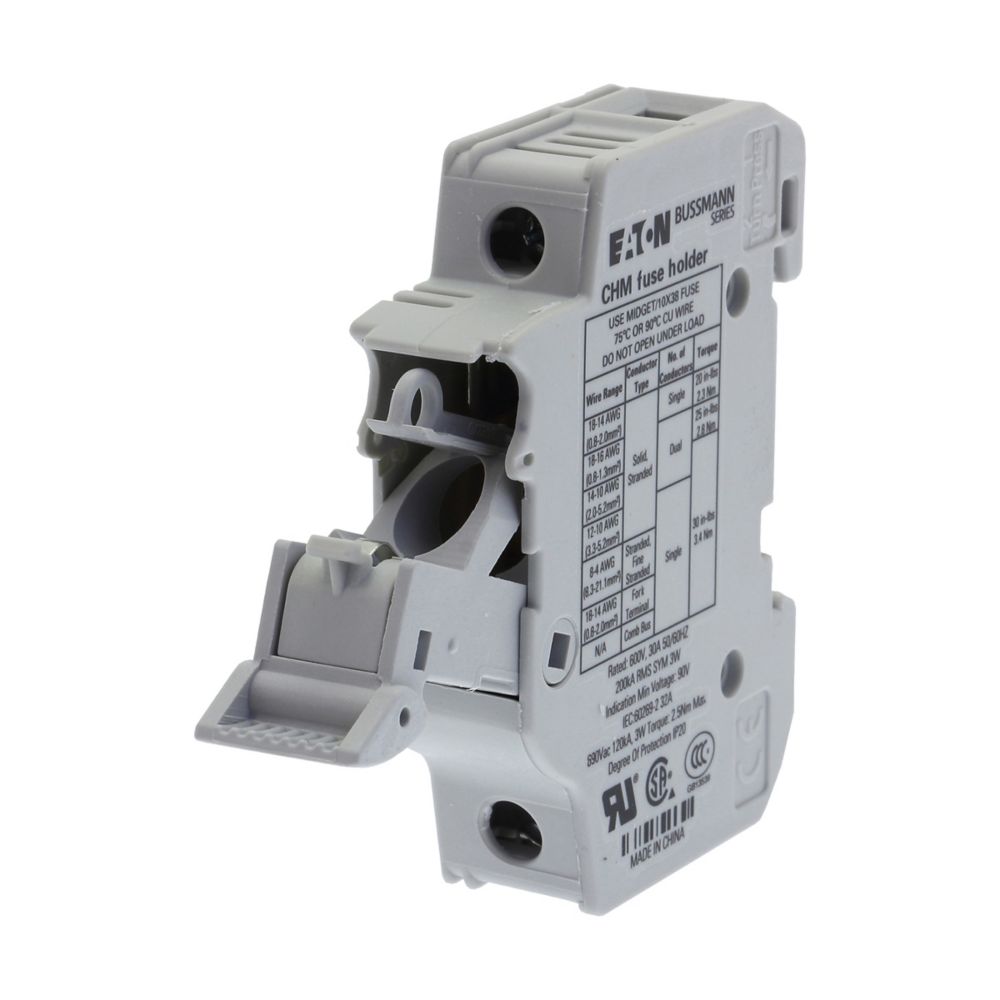

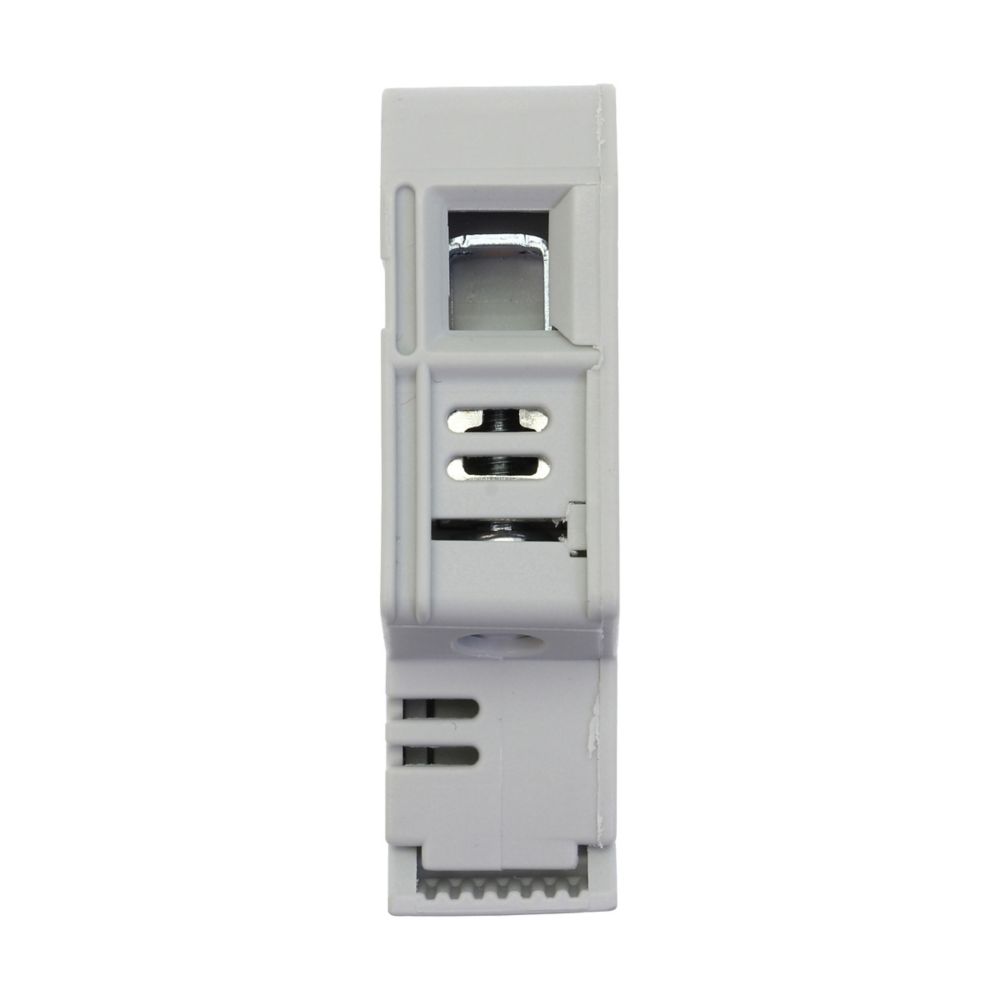

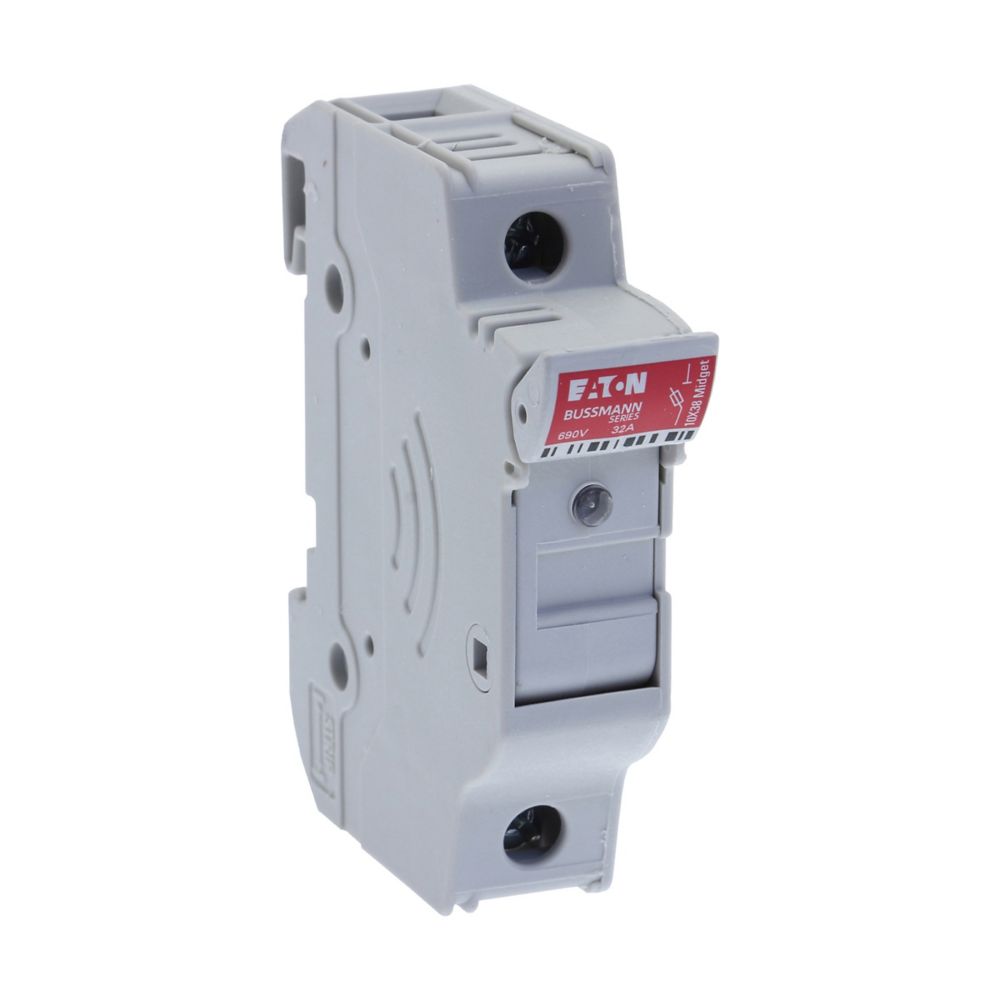

Eaton Bussmann series CHM modular fuse holder, 600V (UL), 690V (IEC), 30A (UL), 32A (IEC), Modular fuse holder, Single-pole - CHM1DIU |
| Product Name |
Eaton Bussmann series CHM modular fuse holder |
| Catalog Number |
CHM1DIU |
| UPC |
051712362757 |
| EAN |
51712362757 |
| Product Length/Depth |
0.001 mm |
| Product Height |
0.001 mm |
| Product Width |
0.001 mm |
| Product Weight |
52.667 g |
| Warranty |
Not Applicable |
| Compliances |
Contact factory RoHS Compliant |
| Certifications |
Contact Manufacturer |
| Product Type |
Modular fuse holder |
| Amperage Rating |
30A (UL), 32A (IEC) |
| Voltage rating |
600 V (UL), 690 V (IEC) |
| Number of poles |
Single-pole |
| Operating temperature - max |
90 °C |
| Operating temperature - min |
-20 °C |
| Used with |
For use with 10 mm X 38 mm fuse |
