Description

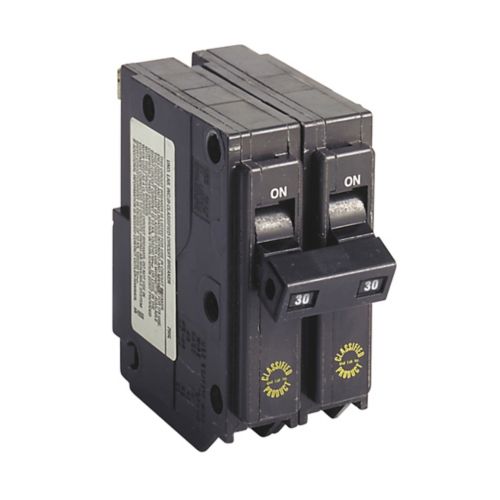

CHQ230 - 3/4 Inch Classified Replacement Breaker Thermal Magnetic Circuit Breakers
3/4" Thermal magnetic circuit breakers, Type CHQ 3/4-Inch classified replacement breaker,30 A,10 kAIC, Two-pole,120/240V, CHQ, Common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al, CHQ, Type CH Loadcenters
GENERAL SPECIFICATIONS
| Product Name |
Eaton Classified 3/4" thermal magnetic circuit breaker
|
| Catalog Number |
CHQ230
|
| UPC |
782113010922
|
| Product Length/Depth |
1.5 in
|
| Product Height |
2.7 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.6 lb
|
| Certifications |
UL 489
|
| Catalog Notes |
Replacement for Square D Type QO Breakers. Requires two 3/4-inch (19.1 mm) spaces.
|
| Product Type |
3/4" Thermal magnetic circuit breakers
|
PRODUCT SPECIFICATIONS
| Used with |
Type CH Loadcenters
|
| Amperage Rating |
30 A
|
| Voltage rating |
120/240 V
|
| Trip Type |
Common breaker trip
|
| Circuit breaker type |
CH
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
CHQ
|
| Wire size |
(1) #14-8 AWG
(2) #14-10 AWG Cu/Al |
| Number of poles |
Two-pole
|
| Type |
Type CHQ 3/4-Inch classified replacement breaker
|
