Description

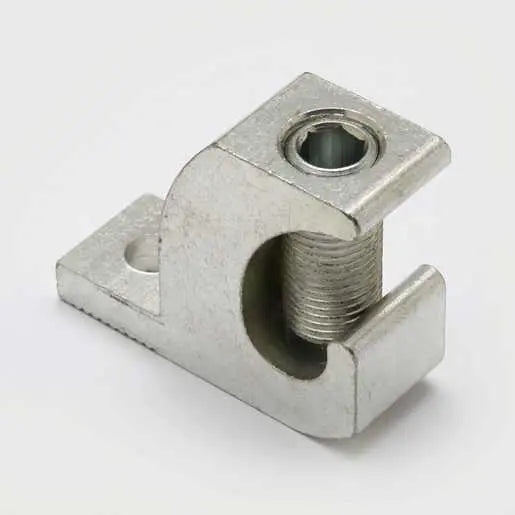

CL501TN - Burndy - 14-4 AWG Copper Lay-in Lug
Copper Lay-in Lug, 14-4 AWG, #10 Stud, Tin Plated.
- UL2703 for Solar Applications
- UL467 for Direct Burial
GENERAL SPECIFICATIONS
| Application | For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking, For Solar Panel Grounding |
| Catalog Number | CL501TN |
| EU RoHS Indicator | Yes |
| Material | Copper |
| Material - Hardware | Stainless Steel |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Sub Brand | QIKLUG |
| Trade Name | QIKLUG |
| Type | Open-Faced |
| UPC | 781810352342 |
| UPC 14 Digit GTIN | 00781810352342 |
Dimensions
| Dimension - D inch | 0.47 in |
| Dimension - Height inch | 0.85 in |
| Dimension - Height mm | 21.6 mm |
| Dimension - Hole Size inch | 0.22 in |
| Dimension - Hole Size mm | 6 mm |
| Dimension - L Length Overall mm | 29 mm |
| Dimension - Length Overall inch | 1.13 in |
| Dimension - N inch | 0.19 in |
| Dimension - Stud Size inch | 17/64 |
| Dimension - Thread Size | - |
| Dimension - Width inch | 0.38 in |
| Dimension - Width mm | 10 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
Conductor Related
| Conductor - Copper Solid Size | 14 AWG; 13 AWG; 12 AWG; 11 AWG; 10 AWG; 9 AWG; 8 AWG; 7 AWG; 6 AWG; 5 AWG; 4 AWG |
| Conductor - Copper Solid Size Range | 14 AWG – 4 AWG |
| Conductor - Copper Str Size | 14 AWG; 12 AWG; 10 AWG; 9 AWG; 8 AWG; 7 AWG; 6 AWG; 5 AWG; 4 AWG |
| Conductor - Copper Str Size Range | 14 AWG – 4 AWG |
| Conductor Type | CU C Str-Size |
Logistics
| Carton Quantity | 700 |
| Minimum Pack Quantity | 100 |
| Pallet Quantity | 2700 |
