Description

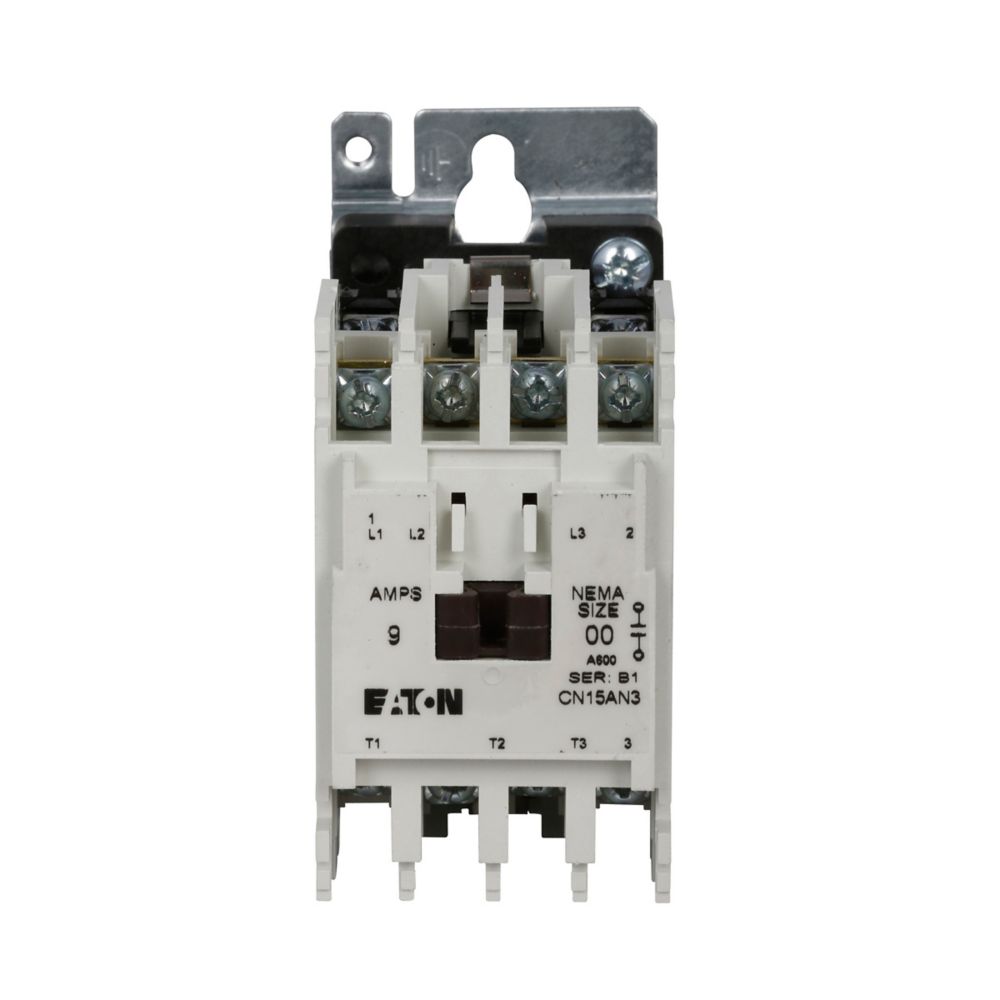

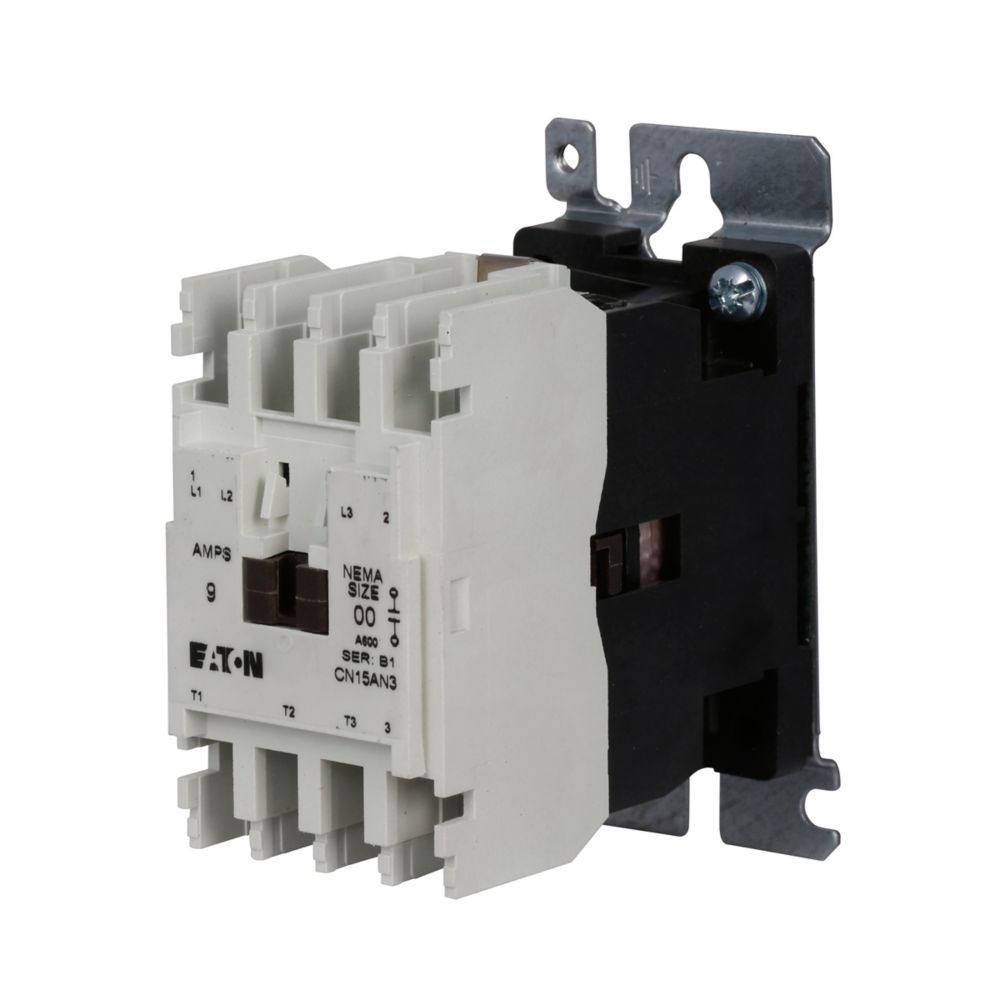

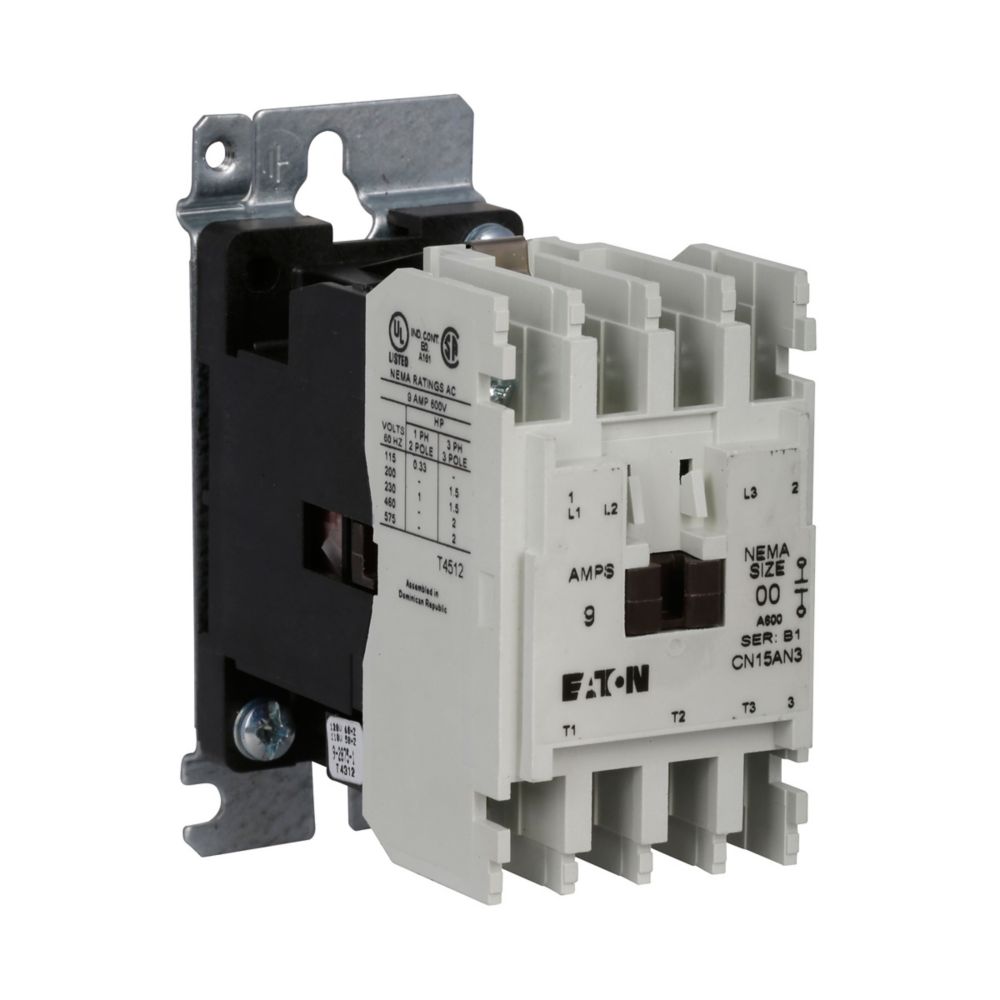

CN15AN3AB - Eaton Cutler-Hammer - 9 Amp 3 Pole 600 Volt Magnetic Contactor
Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 9A, Three-pole, Size 00
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton Freedom NEMA motor control contactor |
|
CATALOG NUMBER |
CN15AN3AB |
|
UPC |
782113777153 |
|
PRODUCT LENGTH/DEPTH |
3.49 in |
|
PRODUCT HEIGHT |
3.88 in |
|
PRODUCT WIDTH |
1.75 in |
|
PRODUCT WEIGHT |
1.1 lb |
|
CERTIFICATIONS |
Eaton Selling Policy 25-000. one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first |
| Catalog Notes |
Common Control
|
| Product Type |
Motor control contactor
|
PRODUCT SPECIFICATIONS
| HP rating - max |
1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V
|
| Phase |
Single-phase, three-phase
|
| Number of poles |
Three-pole
|
| Amperage Rating |
9A
|
| Size |
0
|
| Coil voltage |
110-120 Vac, 50/60 Hz
|
