Description

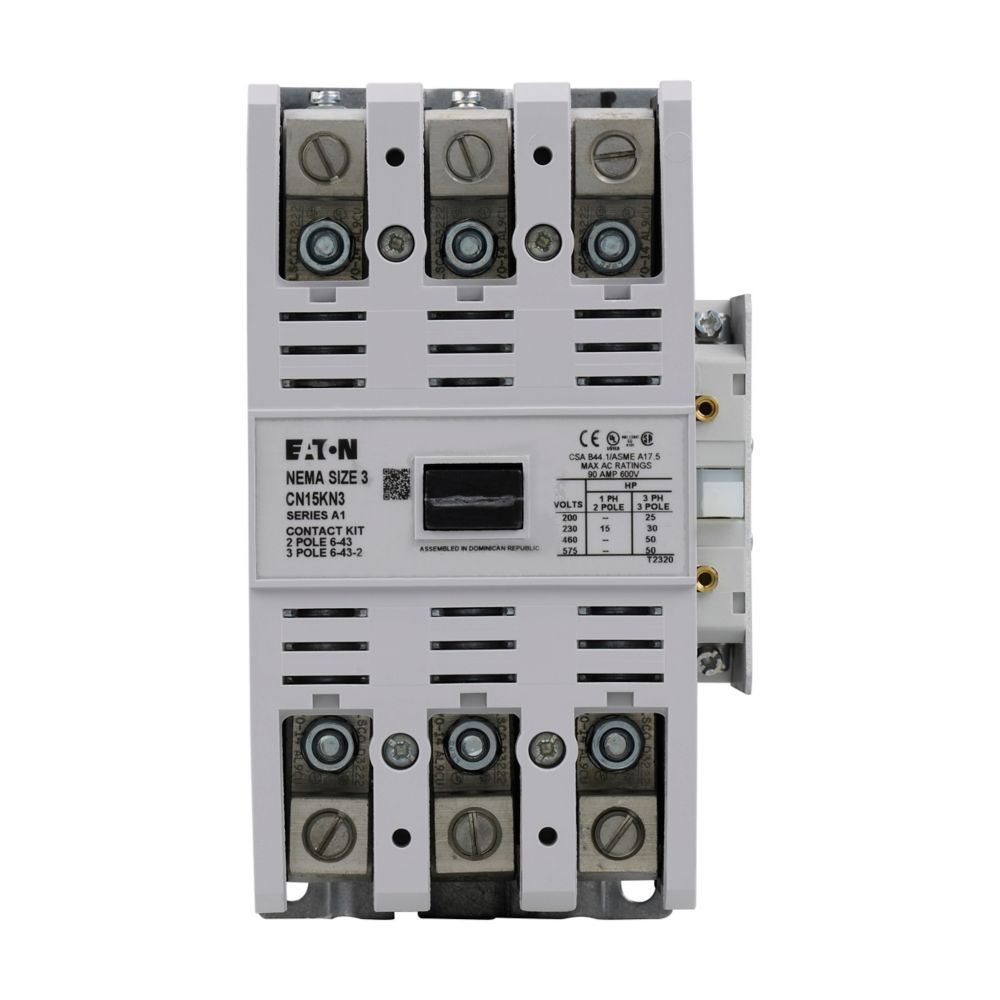

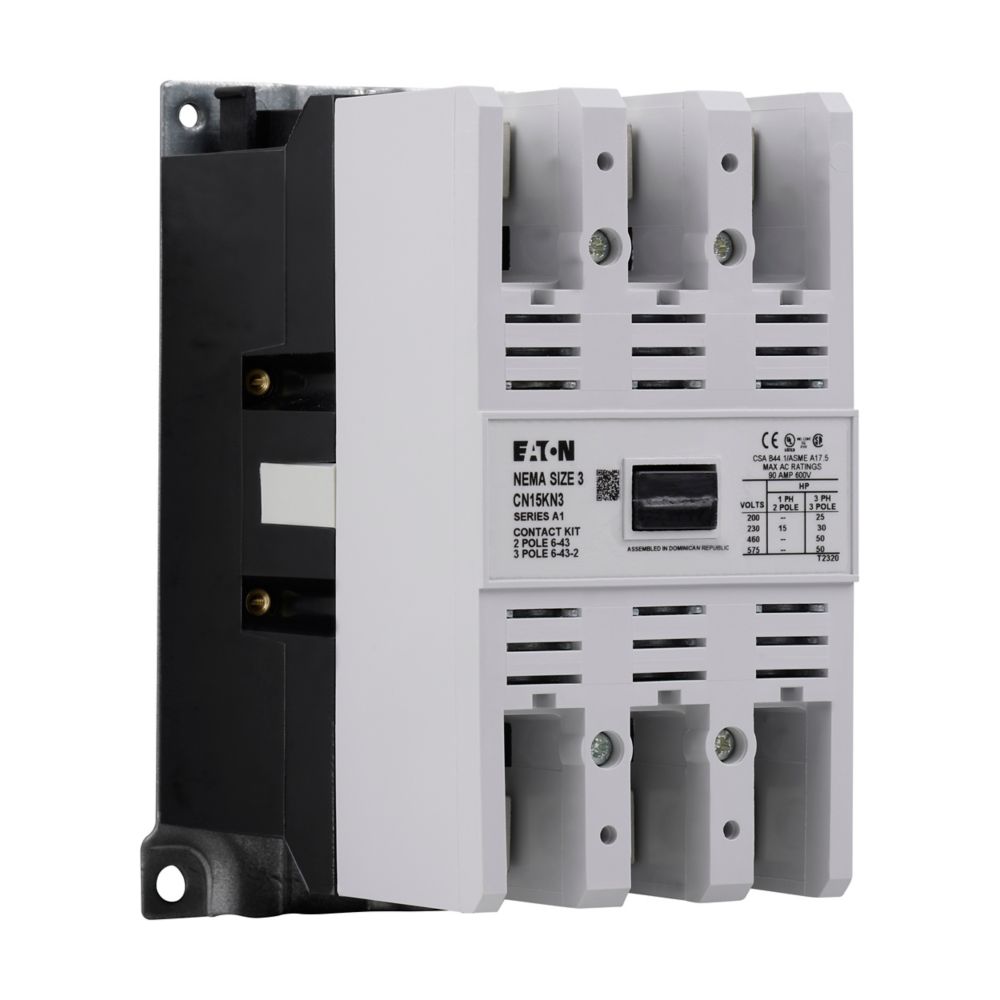

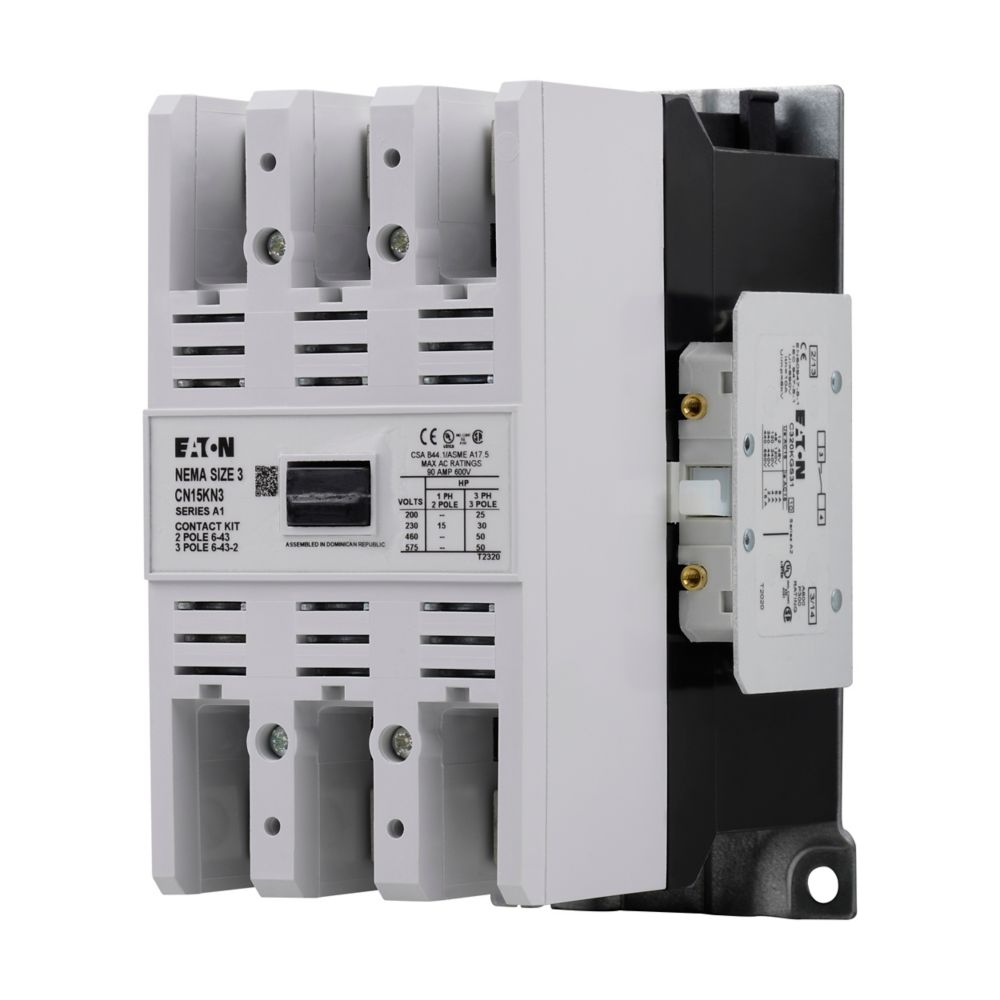

CN15KN3A - Eaton Cutler-Hammer Non-Reversing Contactor
Eaton Freedom NEMA Contactor, Full voltage non-reversing, NEMA Size 3 open enclosure - 90 A, Three-pole, 120/60 or 110/50 coil voltage.
GENERAL SPECIFICATIONS
| Product Name | Eaton Freedom NEMA motor control contactor |
| Catalog Number | CN15KN3A |
| UPC | 782113603919 |
| Product Length/Depth | 5.94 in |
| Product Height | 7.17 in |
| Product Width | 4.08 in |
| Product Weight | 8 lb |
| Certifications | UL Listed CSA Certified |
| Catalog Notes | Common Control |
| Product Type | Motor control contactor |
PRODUCT SPECIFICATIONS
| NEMA frame size | NEMA Size 3 |
| Relay | None |
| Type | Contactor |
| Configuration | Non-reversing |
| Phase | Three-phase |
| Amperage Rating | 90 A |
| Size | 3 |
| Horsepower | 25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V |
| Overload relay | None |
| Coil voltage | 120/60 or 110/50 |
