Description

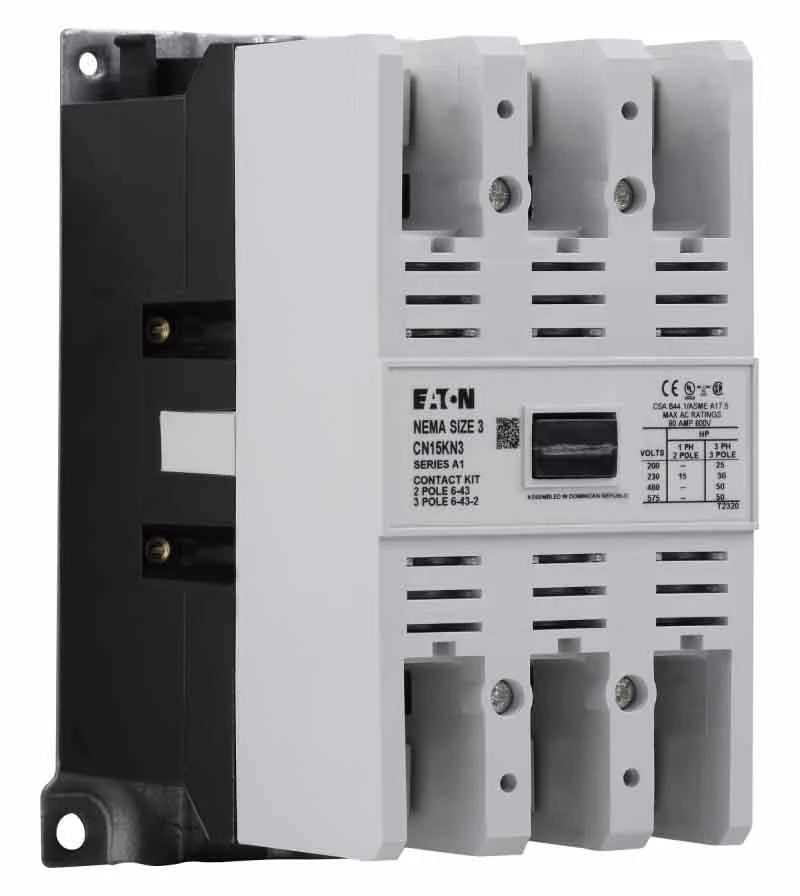

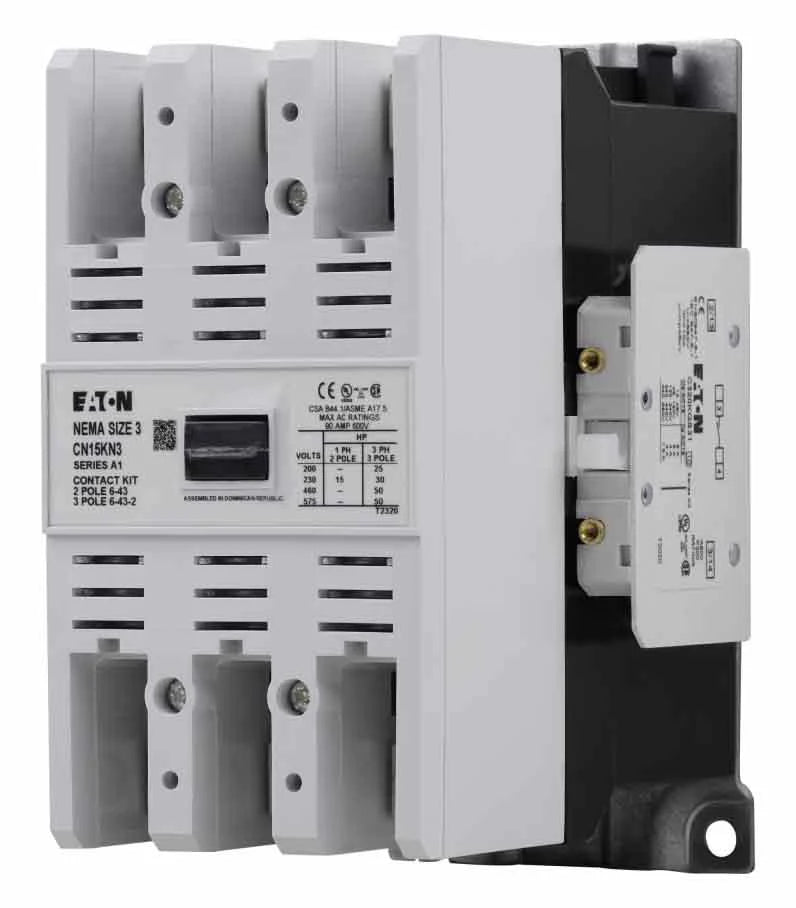

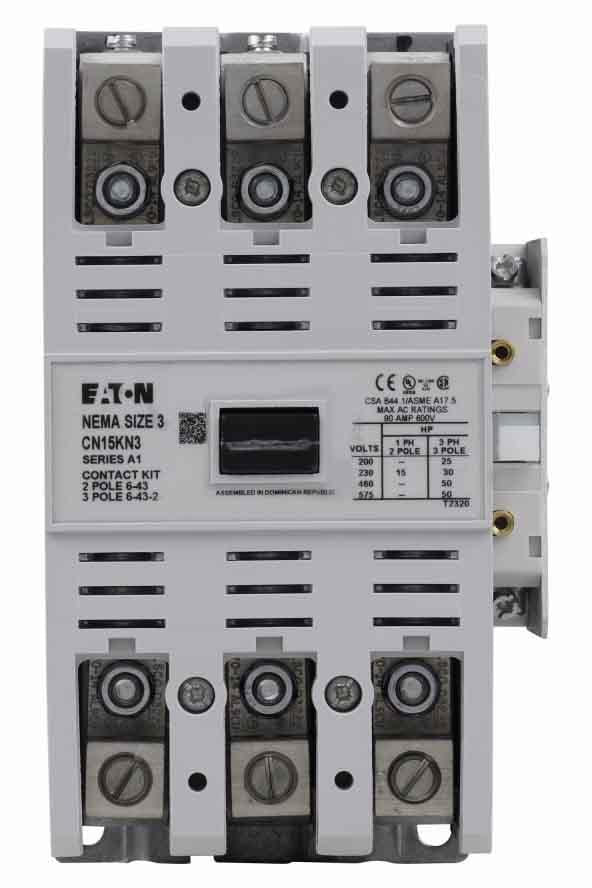

CN15KN3C - Eaton Cutler-Hammer - 3 Pole 90 Amp 600 Volt Magnetic Contactors
Eaton Freedom NEMA Contactor, Full voltage non-reversing, NEMA Size 3 open enclosure - 90 A, Three-pole, 480/60 or 440/50 coil voltage.
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton Freedom NEMA motor control contactor |
|
CATALOG NUMBER |
CN15KN3C |
|
UPC |
782113622439 |
|
PRODUCT LENGTH/DEPTH |
5.94 in |
|
PRODUCT HEIGHT |
7.17 in |
|
PRODUCT WIDTH |
4.08 in |
|
PRODUCT WEIGHT |
8 lb |
|
CERTIFICATIONS |
CSA Certified UL Listed |
|
CATALOG NOTES |
Common Control |
| Product Type |
Motor control contactor
|
PRODUCT SPECIFICATIONS
| NEMA frame size |
NEMA Size 3
|
| Relay |
None
|
| Type |
Contactor
|
| Configuration |
Non-reversing
|
| Phase |
Three-phase
|
| Number of poles |
Two-pole
|
| Amperage Rating |
90 A
|
| Size |
3
|
| Horsepower |
25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V
|
| Overload relay |
None
|
| Coil voltage |
480/60 or 440/50
|
