Description

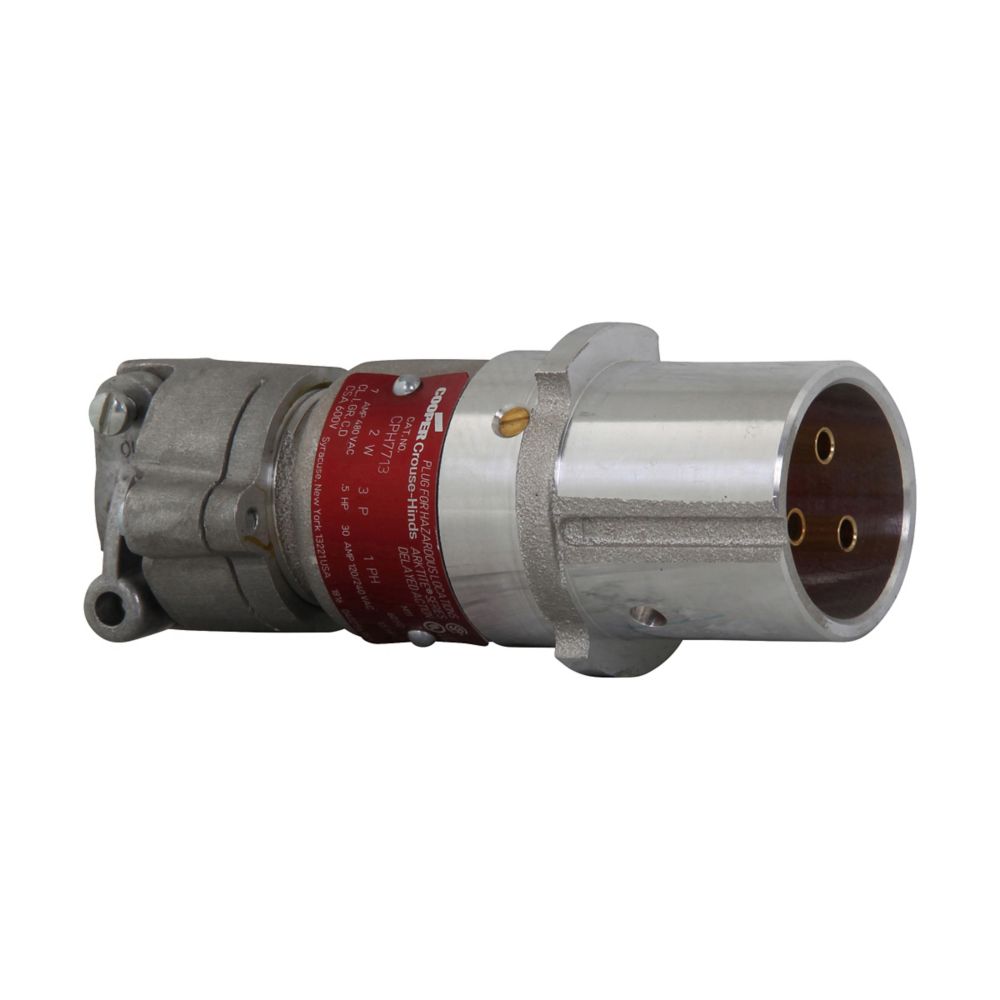

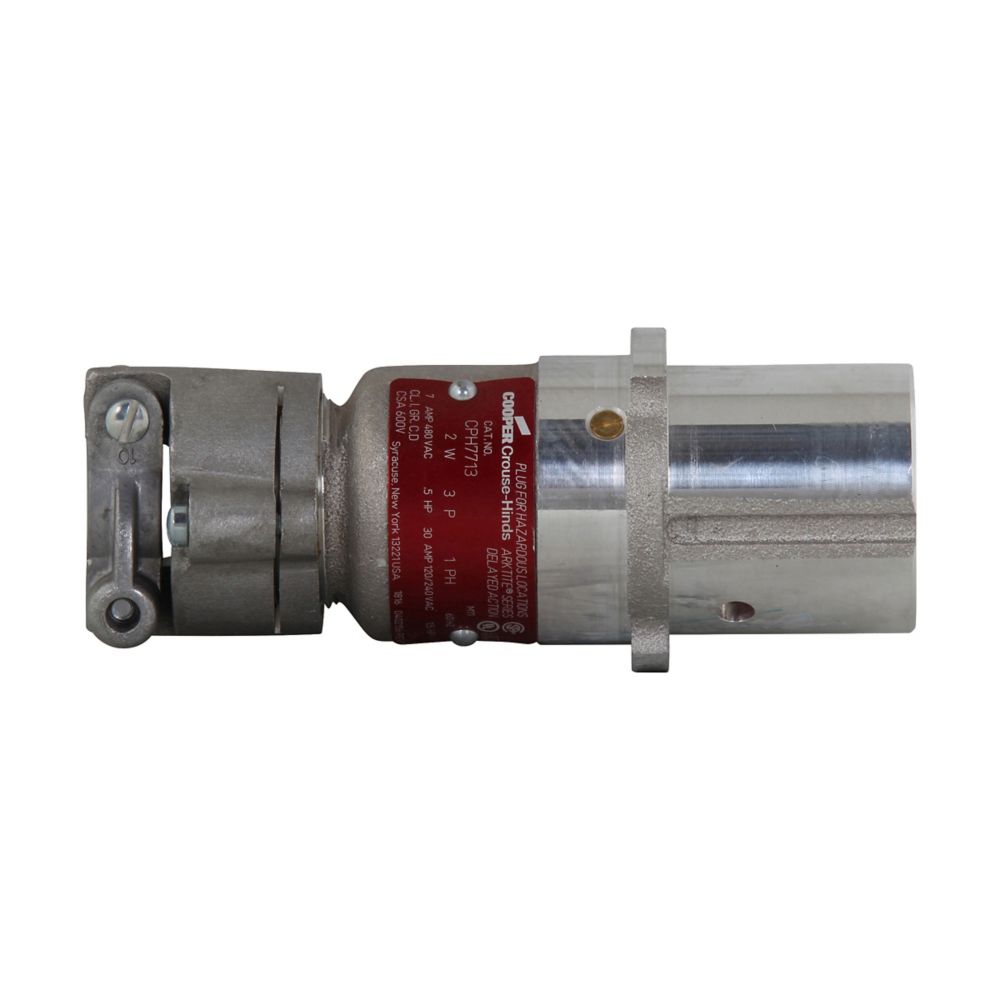

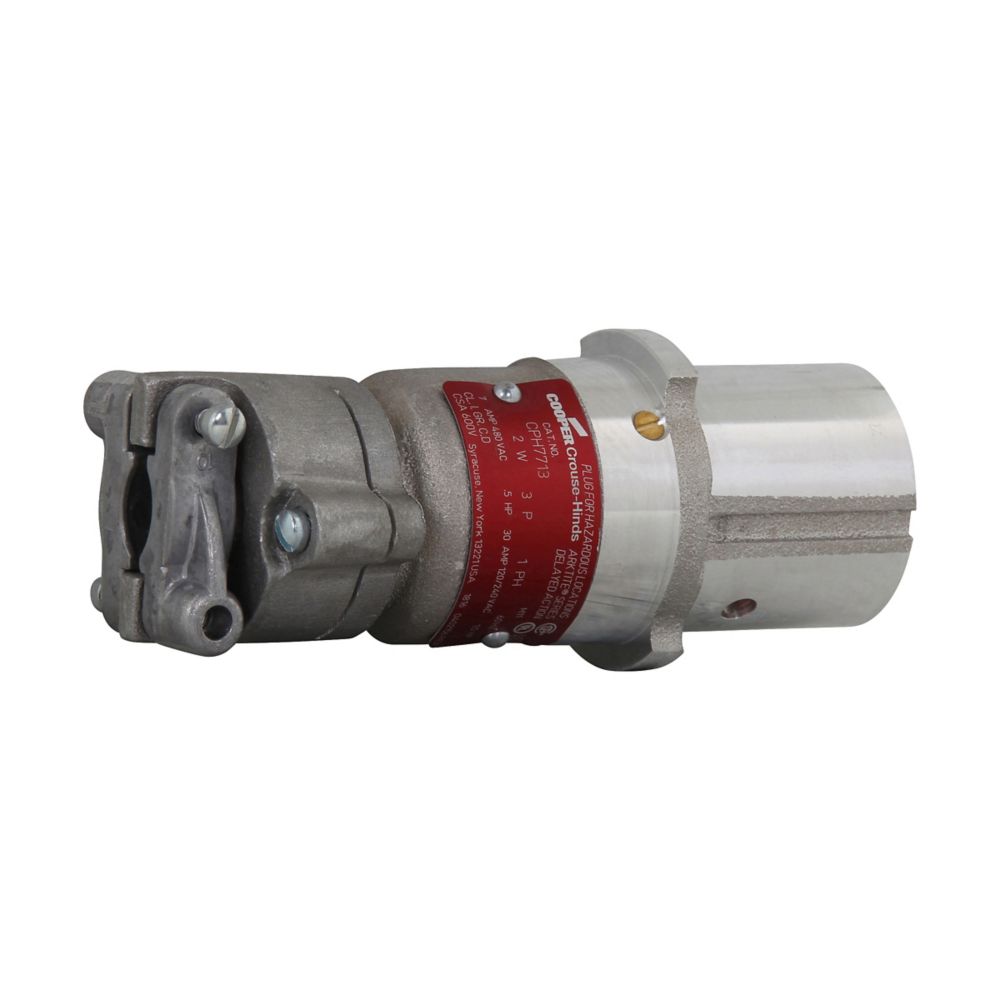

CPH7713 - Eaton Crouse-Hinds Series - 2-Wire 3-Pole 7A/30A Copper-Free Aluminum Arktite CPH Plug
Eaton Crouse-Hinds series Arktite CPH plug, 7A/30A, 0.375-0.875" cable dia, Two-wire, three-pole, Brass or copper contacts, Style 2, 0.5 HP/1.5 HP, Copper-free alum, Single-phase, Mechanical cable grip and neoprene bush, 120-240/480 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CPH plug
|
| Catalog Number |
CPH7713
|
| UPC |
782274173207
|
| Product Length/Depth |
6 in
|
| Product Height |
2.38 in
|
| Product Width |
2.38 in
|
| Product Weight |
1.2 lb
|
| Product Type |
Plug
|
PRODUCT SPECIFICATIONS
| Grounding style |
Style 2
|
| Configuration |
Two-wire, three-pole
|
| Phase |
Single-phase
|
| Horsepower |
0.50 hp, 1.50 hp
|
| Amperage Rating |
7A/30A
|
| Voltage rating |
120-240 Vac/480 Vac
|
| Cable diameter |
0.375-0.875 in
|
| Material |
Copper-free aluminum
|
| Contact material |
Hand-drawn copper
Brass |
| Special features |
Mechanical cable grip and neoprene bushing
|
PRODUCT DATASHEET
