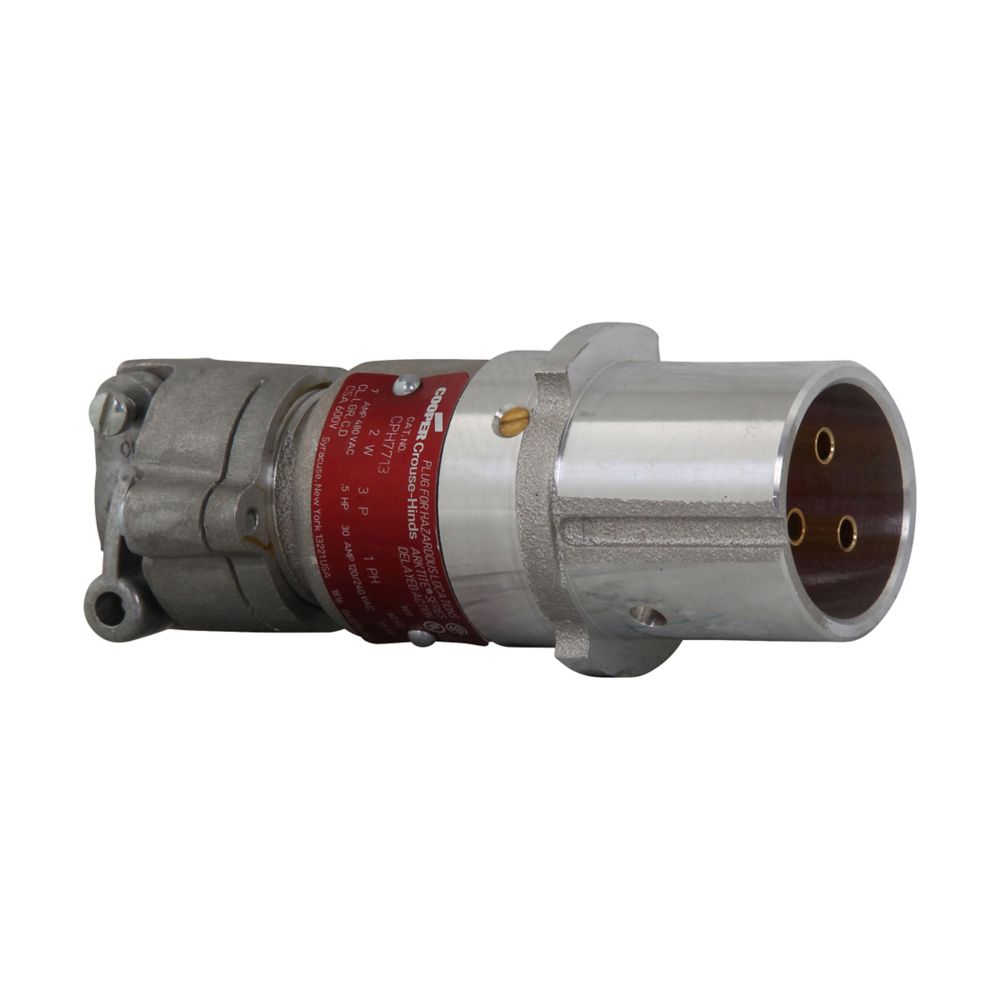

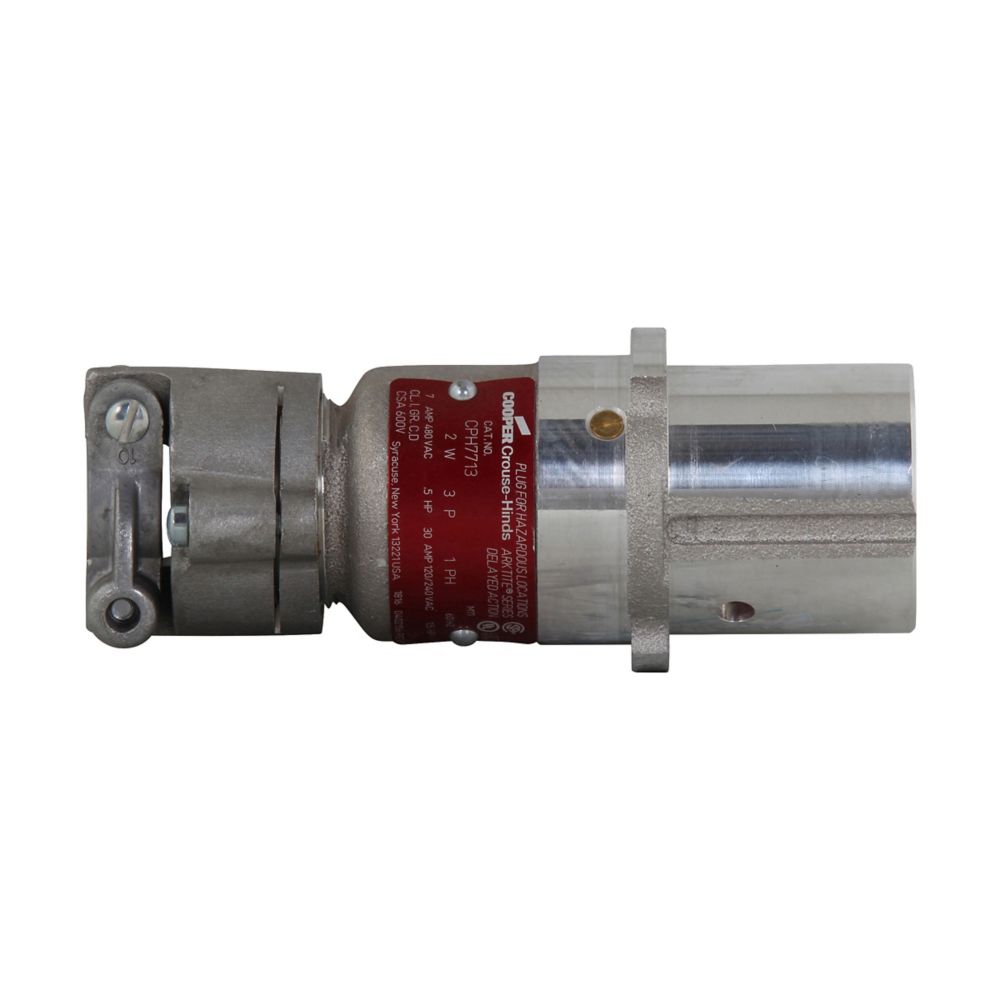

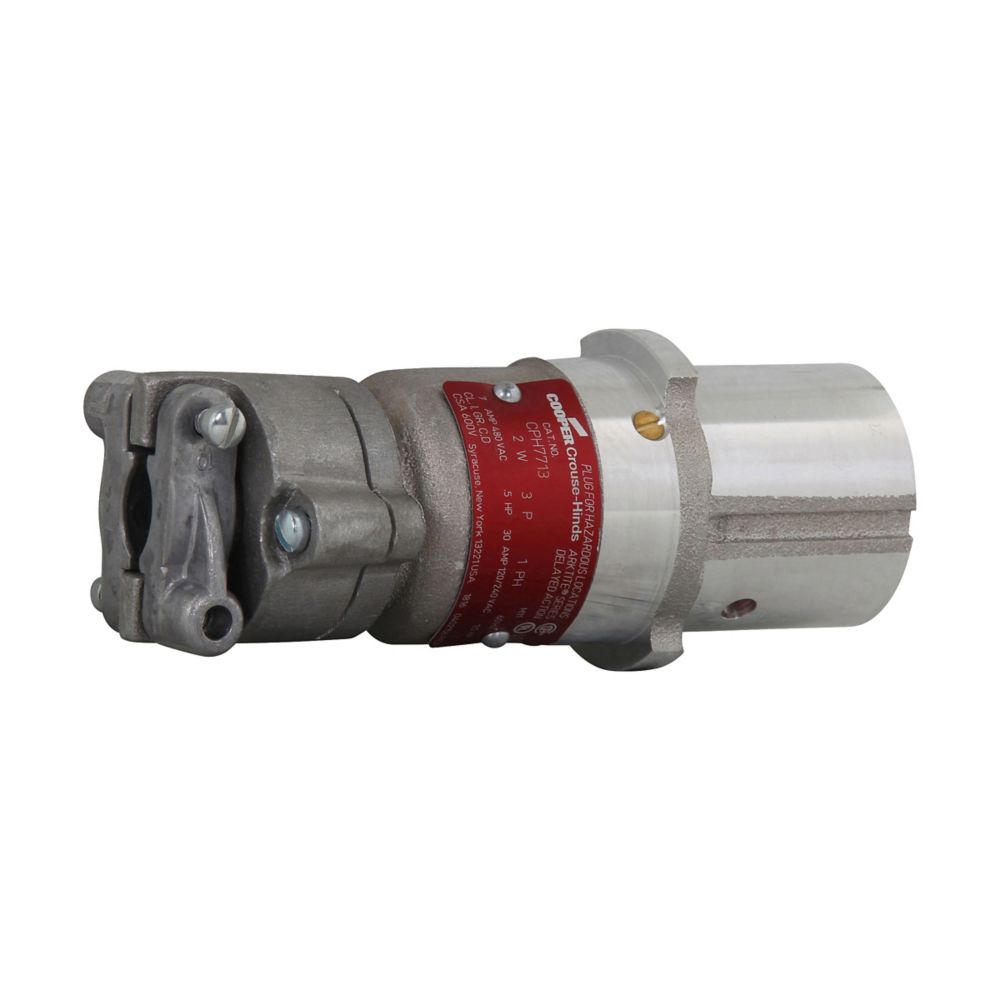

CPH7934 - Eaton Crouse-Hinds Series - 3-Wire 4-Pole 30A/60A Copper-Free Aluminum Arktite CPH Plug
Eaton Crouse-Hinds series Arktite CPH plug, 30A/60A, 0.875-1.375" cable diameter, Three-wire, four-pole, Brass or copper contacts, Style 2, 5 HP, Copper-free alum, 3-phase, Mechanical cable grip and neoprene bushing, 120-240/480 Vac
GENERAL SPECIFICATIONS
| Product Name | Eaton Crouse-Hinds series Arktite CPH plug |
| Catalog Number | CPH7934 |
| UPC | 782274173900 |
| Product Length/Depth | 8.13 in |
| Product Height | 3.06 in |
| Product Width | 3.06 in |
| Product Weight | 2.6 lb |
| Product Type | Plug |
PRODUCT SPECIFICATIONS
| Grounding style | Style 2 |
| Configuration | Three-wire, four-pole |
| Phase | Three-phase |
| Horsepower | 5 hp |
| Amperage Rating | 30A/60A |
| Voltage rating | 120-240 Vac/480 Vac |
| Cable diameter | 0.875-1.375 in |
| Material | Copper-free aluminum |
| Contact material | Hand-drawn copper Brass |
| Special features | Mechanical cable grip and neoprene bushing |
