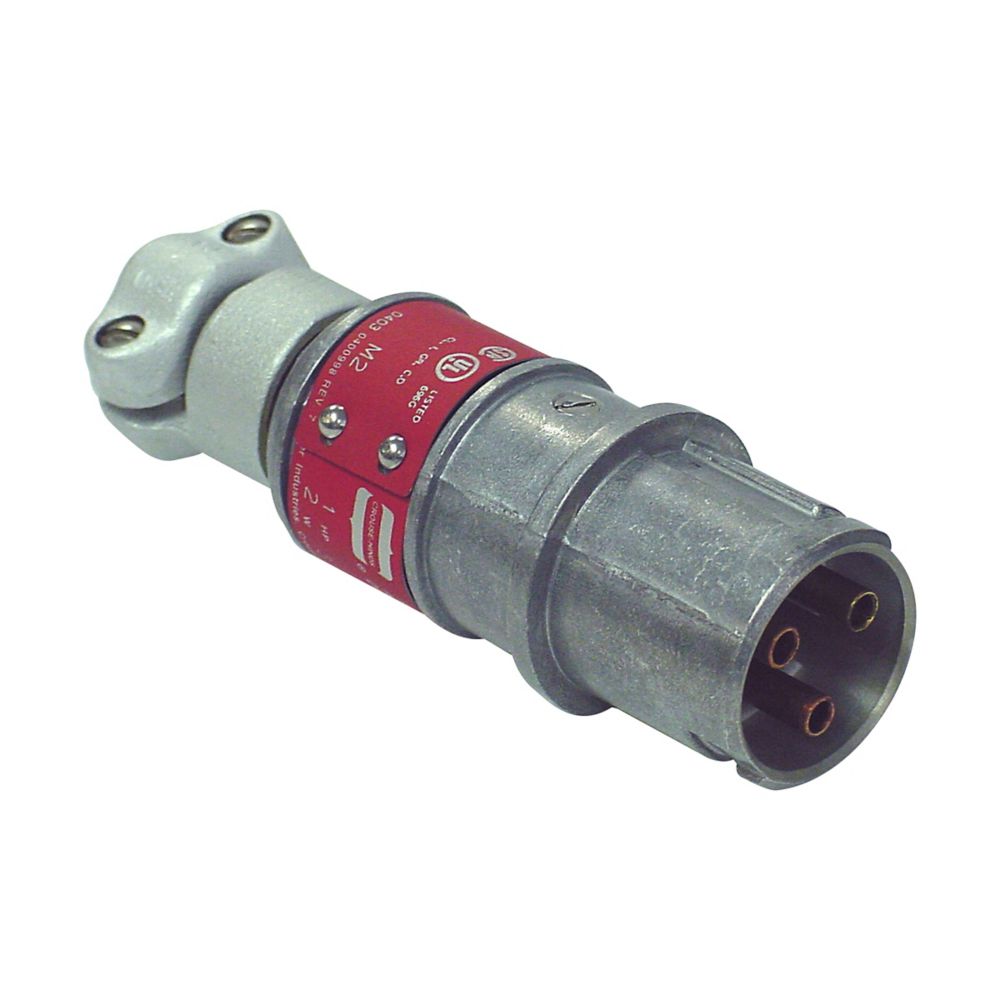

CPP4752 - Eaton Crouse-Hinds Series - 3-Wire 4-Pole 7A/30A Copper-Free Aluminum Arktite CPP Plug
Eaton Crouse-Hinds series Arktite CPP plug, 7A/30A, 0.375-0.875" cable diameter, Three-wire, four-pole, Brass contacts, 60 Hz, Style 2, 1 HP/3 HP, Copper-free alum, Factory sealed, Delayed action circuit breaking, 125-250 Vac/480 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CPP plug |
| Catalog Number |
CPP4752 |
| UPC |
782274175904 |
| Product Length/Depth |
6.38 in |
| Product Height |
2.5 in |
| Product Width |
2.5 in |
| Product Weight |
1.2 lb |
| Product Type |
Plug |
PRODUCT SPECIFICATIONS
| Grounding style |
Style 2 |
| Amperage Rating |
7A/30A |
| Configuration |
Three-wire, four-pole |
| Cable diameter |
0.375-0.875 in |
| Voltage rating |
125-250 Vac/480 Vac |
| Horsepower |
1 hp/3 hp |
| Frequency rating |
60 Hz |
| Material |
Copper-free aluminum |
| Contact material |
Brass |
| Special features |
Factory sealed |
| Type |
Delayed action circuit breaking |
