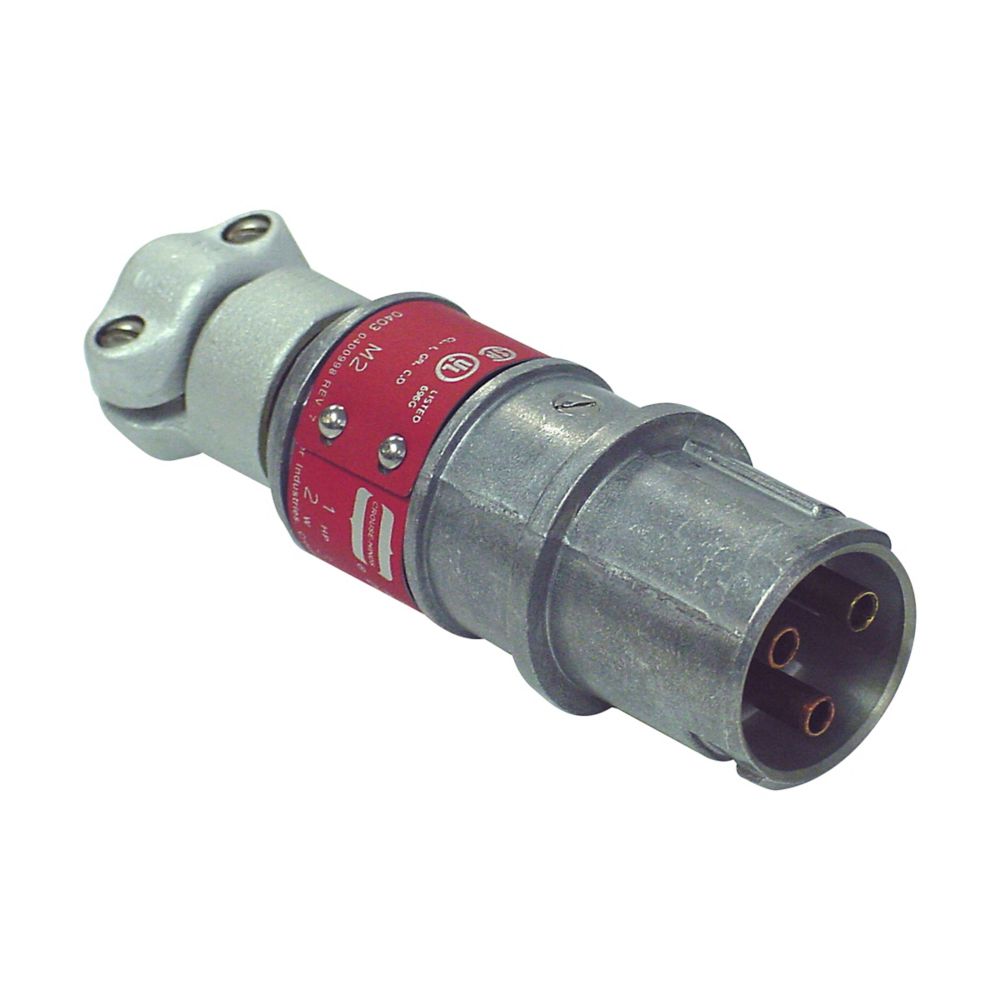

CPP512 - Eaton Crouse-Hinds Series - 20A Arktite CPP Plug
Eaton Crouse-Hinds series Arktite CPP plug, 20A, 0.312-0.625" cable diameter, 2-wire, 3-pole, Brass contact, 60 Hz, Style 2, 1 HP, Krydon fiberglass-reinforced polyester, Factory sealed, Delayed action circuit breaking, 125-250 Vac/18 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CPP plug |
| Catalog Number |
CPP512 |
| UPC |
782274175003 |
| Product Length/Depth |
7.59 in |
| Product Height |
1.75 in |
| Product Width |
1.75 in |
| Product Weight |
0.63 lb |
PRODUCT SPECIFICATIONS
| Grounding style |
Style 2 |
| Amperage Rating |
20A |
| Configuration |
Two-wire, three-pole |
| Cable diameter |
0.312-0.625 in |
| Voltage rating |
125-250 Vac/18 Vdc |
| Horsepower |
1 hp |
| Frequency rating |
60 Hz |
| Material |
Krydon fiberglass-reinforced polyester |
| Contact material |
Brass |
| Special features |
Factory sealed |
| Type |
Delayed action circuit breaking |
PRODUCT DATASHEET
