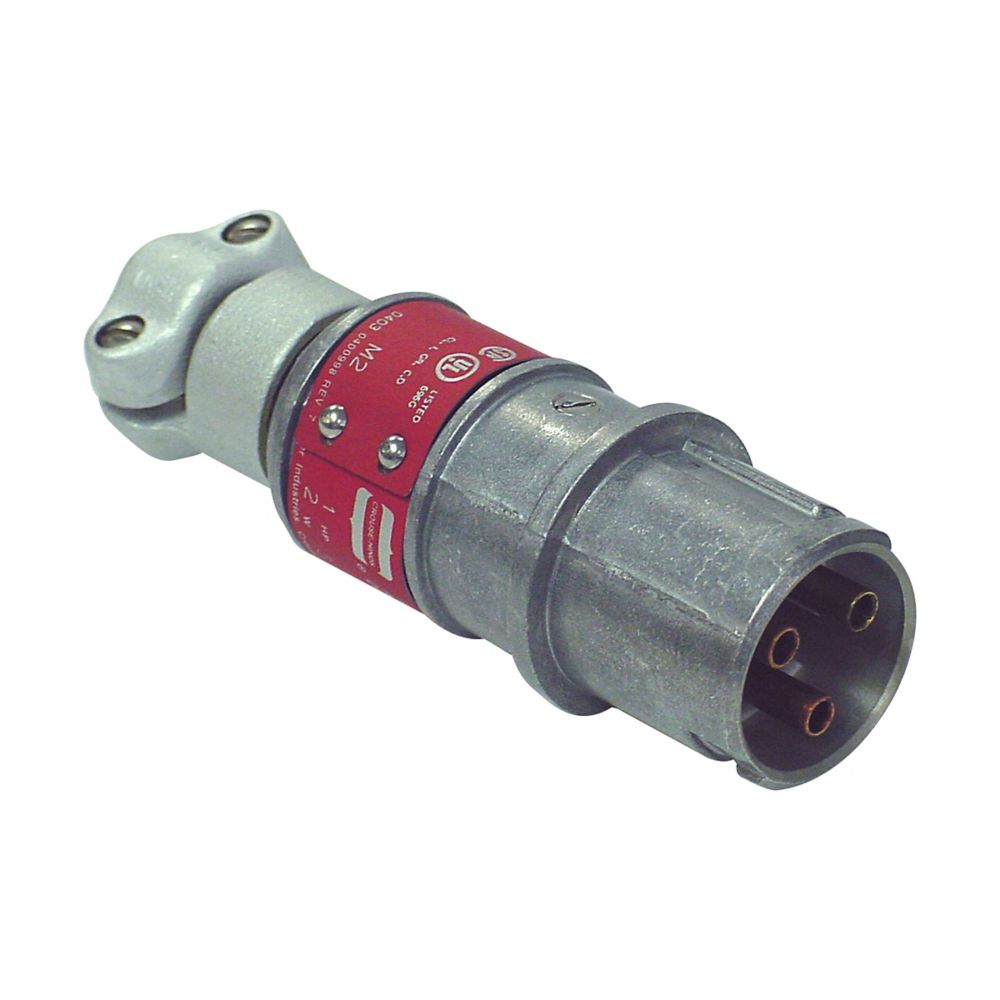

CPP516 - Eaton Crouse-Hinds Series - 2-Wire 3-Pole 20A Copper-Free Aluminum Arktite CPP Plug
Eaton Crouse-Hinds series Arktite CPP plug, 20A, 0.312-0.625" cable diameter, Two-wire, three-pole, Brass contacts, 60 Hz, Style 2, 1 HP, Copper-free aluminum, Factory sealed, Delayed action circuit breaking, 125-250 Vac/18 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CPP plug
|
| Catalog Number |
CPP516
|
| UPC |
782274175102
|
| Product Length/Depth |
8.38 in
|
| Product Height |
1.75 in
|
| Product Width |
1.75 in
|
| Product Weight |
0.8 lb
|
| Product Type |
Plug
|
PRODUCT SPECIFICATIONS
| Grounding style |
Style 2
|
| Amperage Rating |
20A
|
| Configuration |
Two-wire, three-pole
|
| Cable diameter |
0.312-0.625 in
|
| Voltage rating |
125-250 Vac/18 Vdc
|
| Horsepower |
1 hp
|
| Frequency rating |
60 Hz
|
| Material |
Copper-free aluminum
|
| Contact material |
Brass
|
| Special features |
Factory sealed
|
| Type |
Delayed action circuit breaking
|
