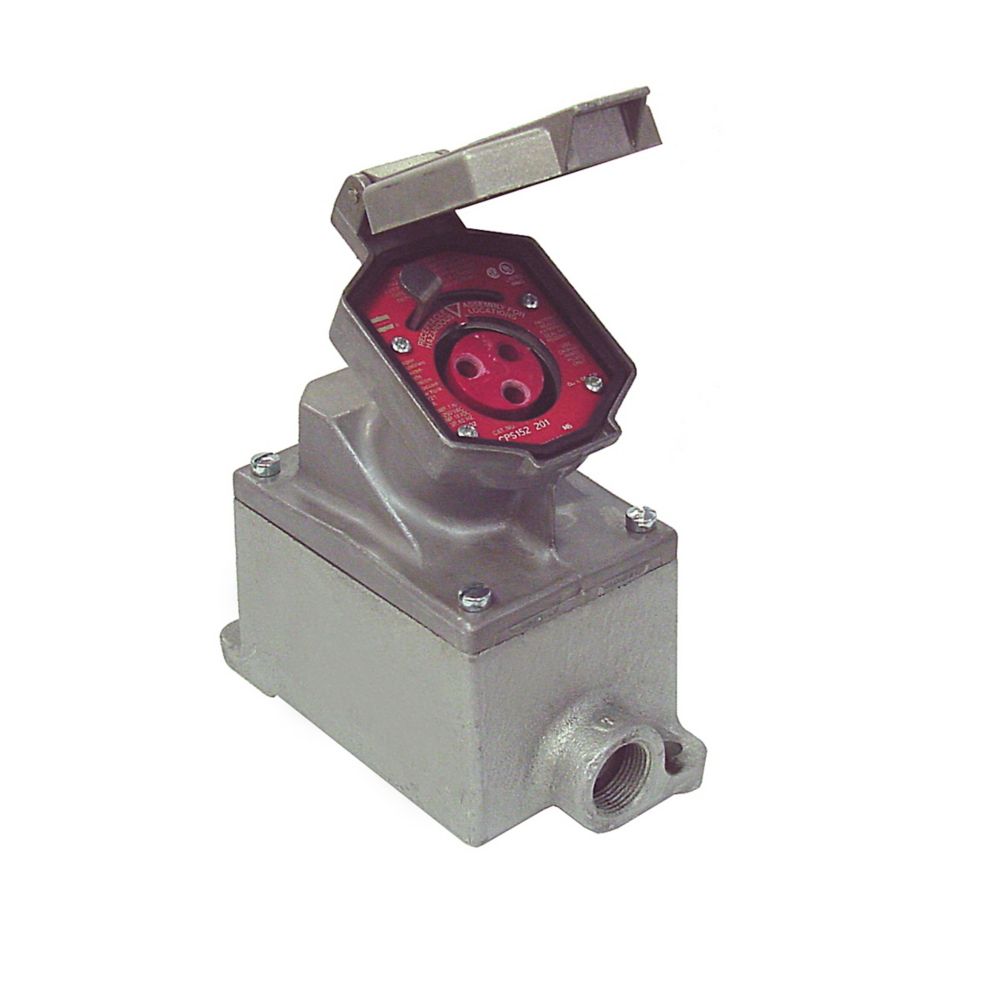

CPS152201 - Eaton Crouse-Hinds Series - 20A 2-Wire 3-Pole Copper-Free Aluminum Arktite CPS Receptacle Assembly
Eaton Crouse-Hinds series Arktite CPS receptacle assembly, 20A, Dead end, Two-wire, three-pole, Brass contacts, 60 Hz, Style 2, 1 HP, Copper-free alum, Single-gang, Factory sealed, 3/4", Delayed action circuit breaking, 125-250 Vac/18 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CPS receptacle assembly |
| Catalog Number |
CPS152 201 |
| UPC |
782274181400 |
| Product Length/Depth |
3.5 in |
| Product Height |
6.72 in |
| Product Width |
8 in |
| Product Weight |
6.85 lb |
| Product Type |
Receptacle assembly |
PRODUCT SPECIFICATIONS
| Grounding style |
Style 2 |
| Number of gangs |
Single-gang |
| Amperage Rating |
20A |
| Configuration |
Two-wire, three-pole |
| Back box style |
Dead end |
| Trade size |
3/4" |
| Voltage rating |
125-250 Vac/18 Vdc |
| Horsepower |
1 hp |
| Frequency rating |
60 Hz |
| Material |
Copper-free aluminum |
| Contact material |
Brass |
| Special features |
Factory sealed |
| Type |
Delayed action circuit breaking |
