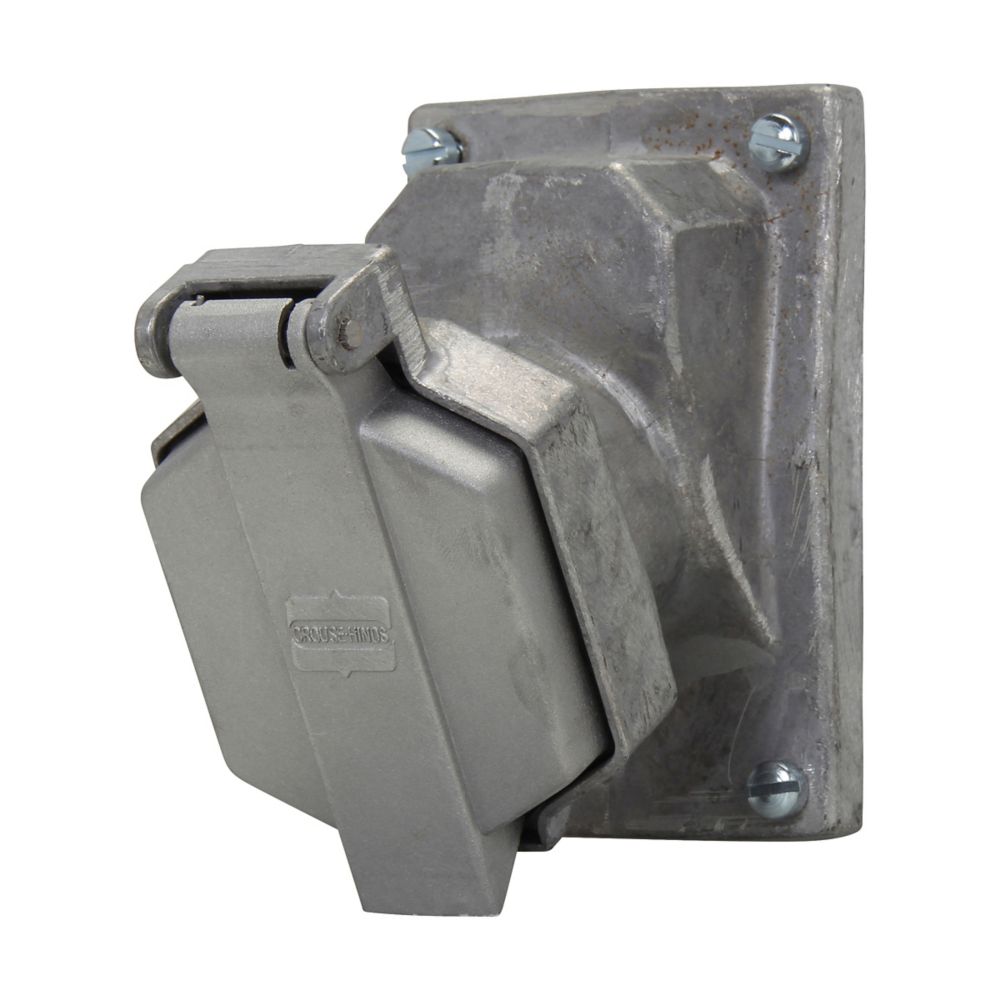

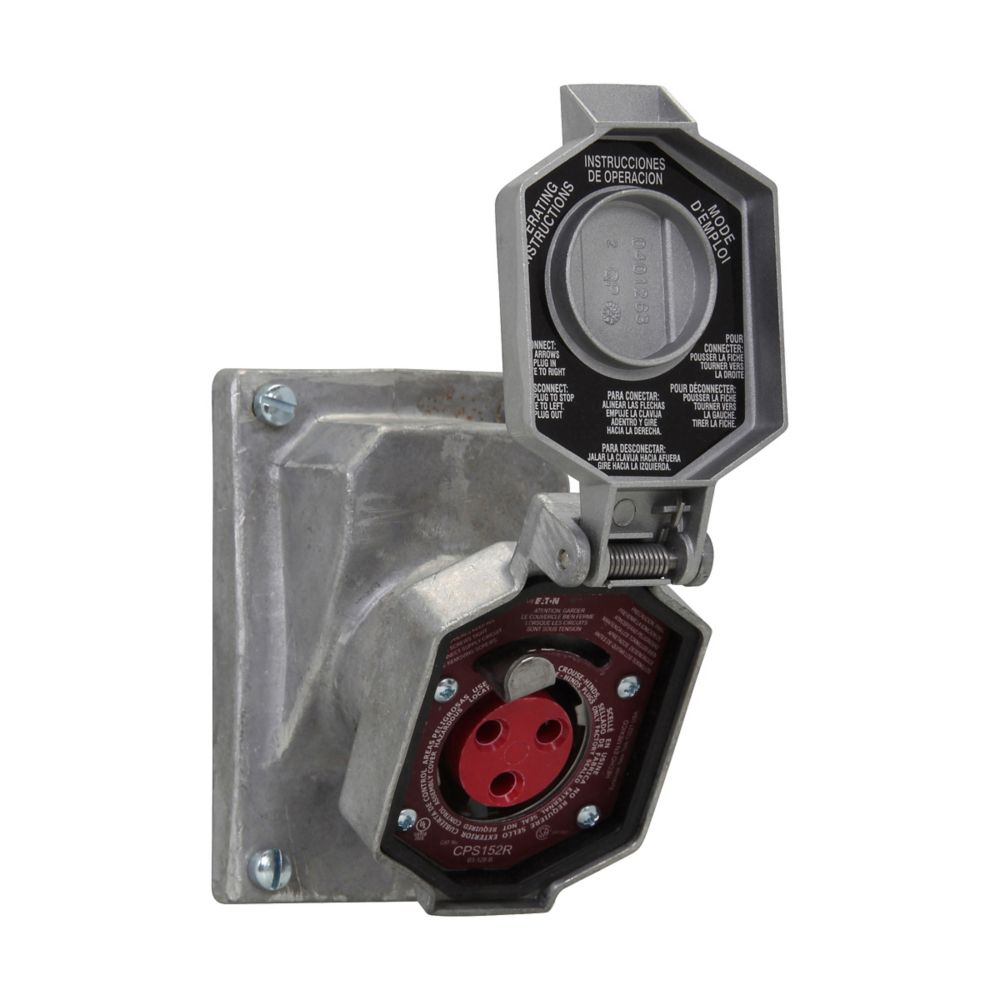

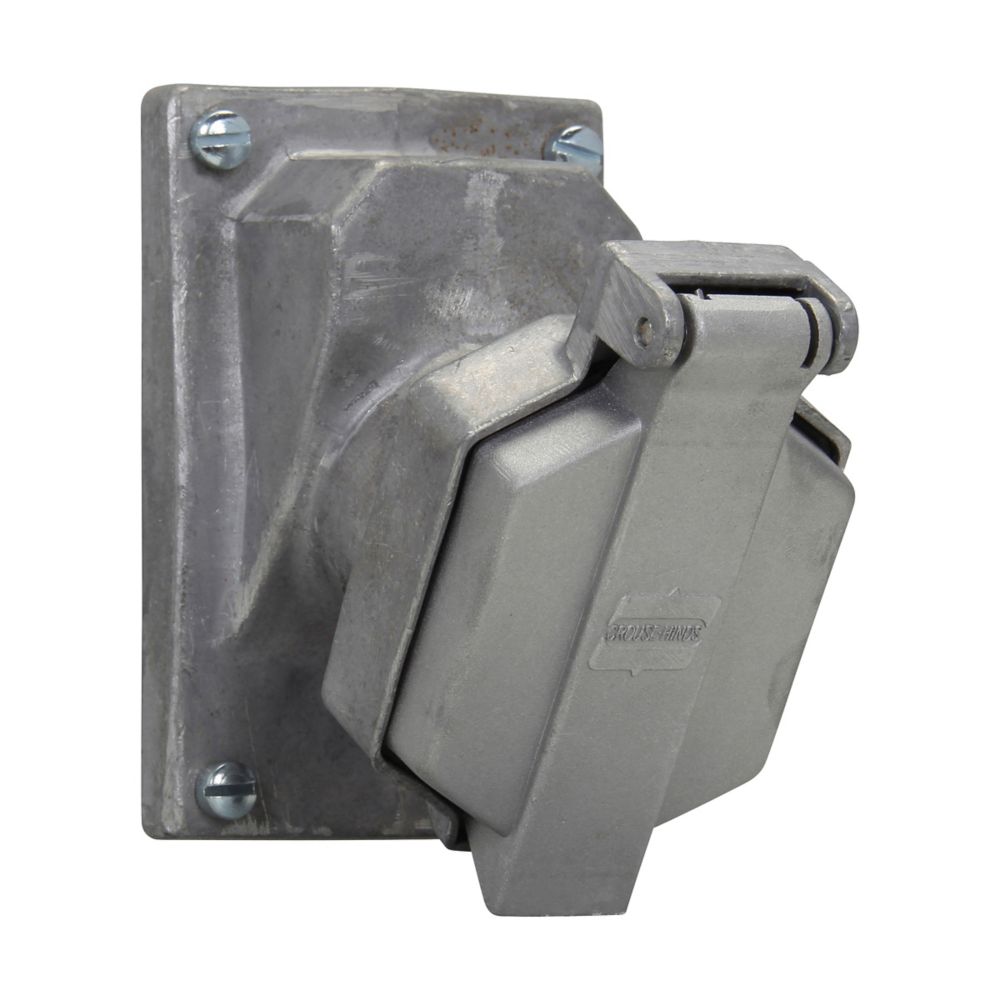

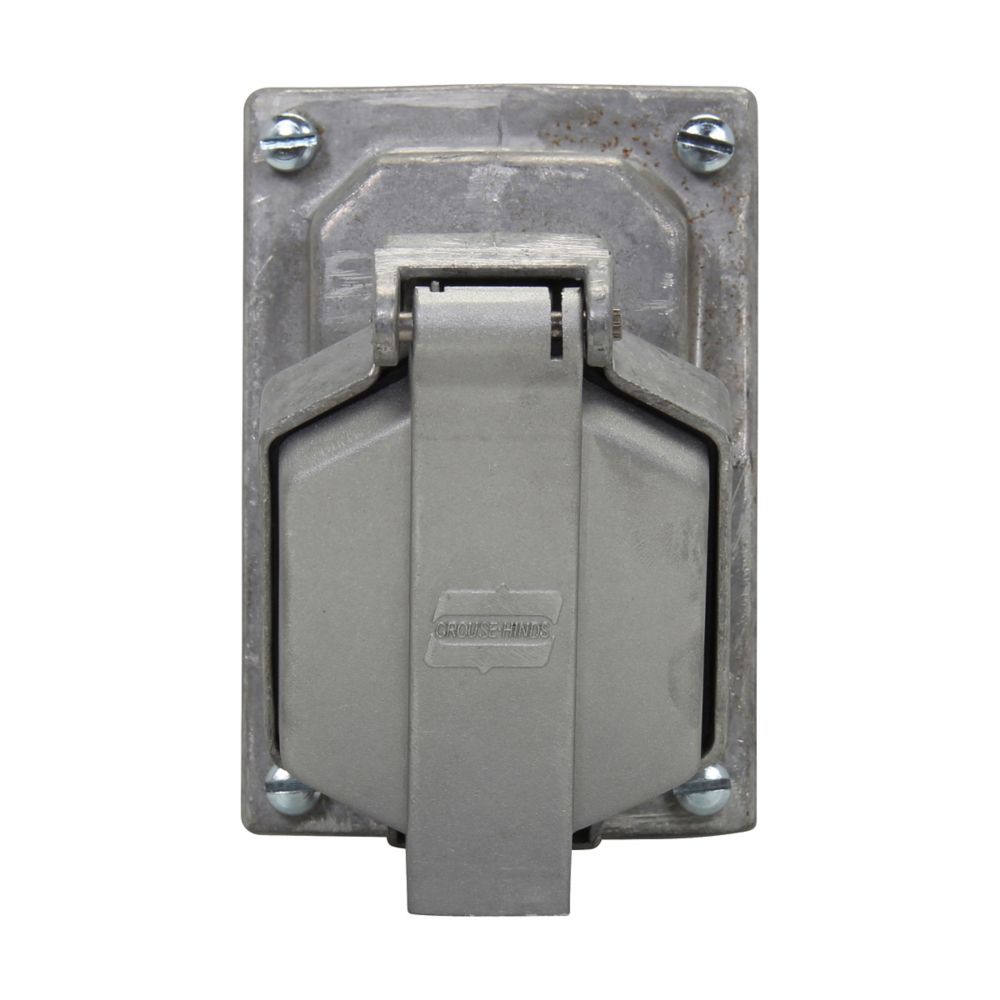

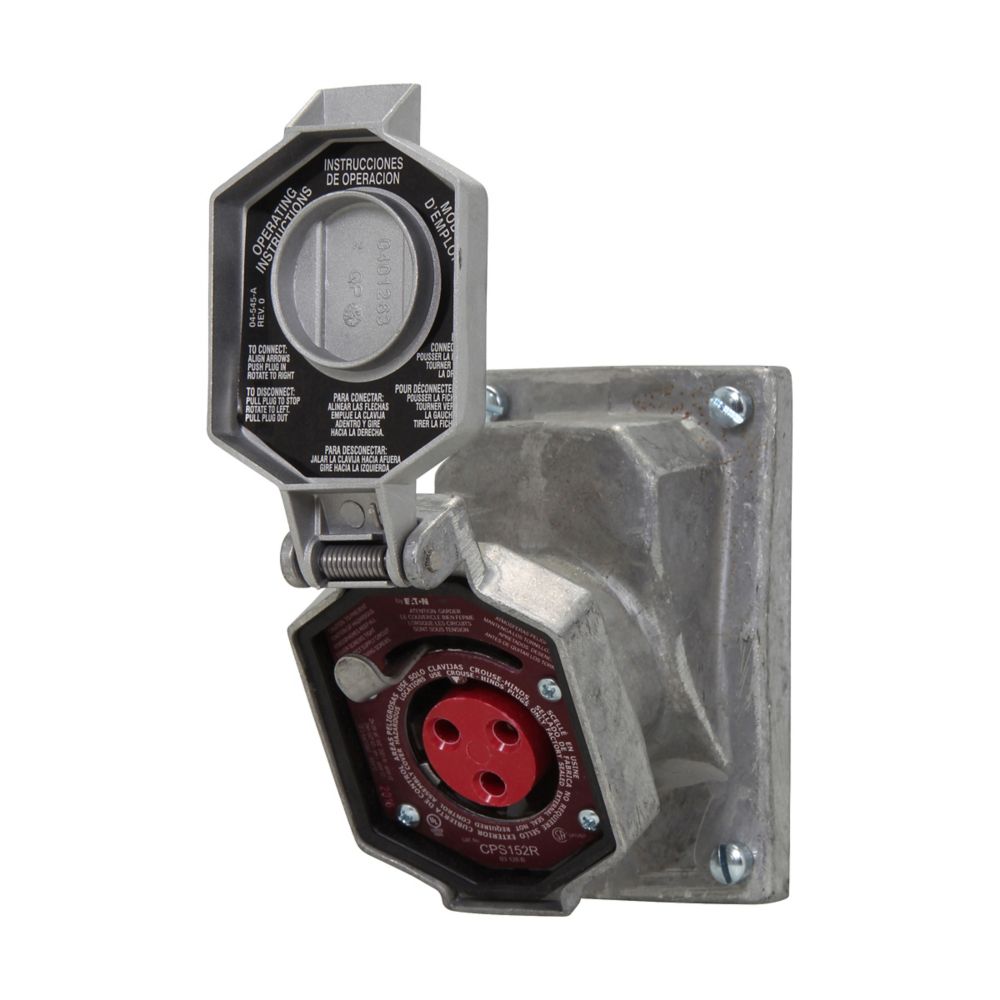

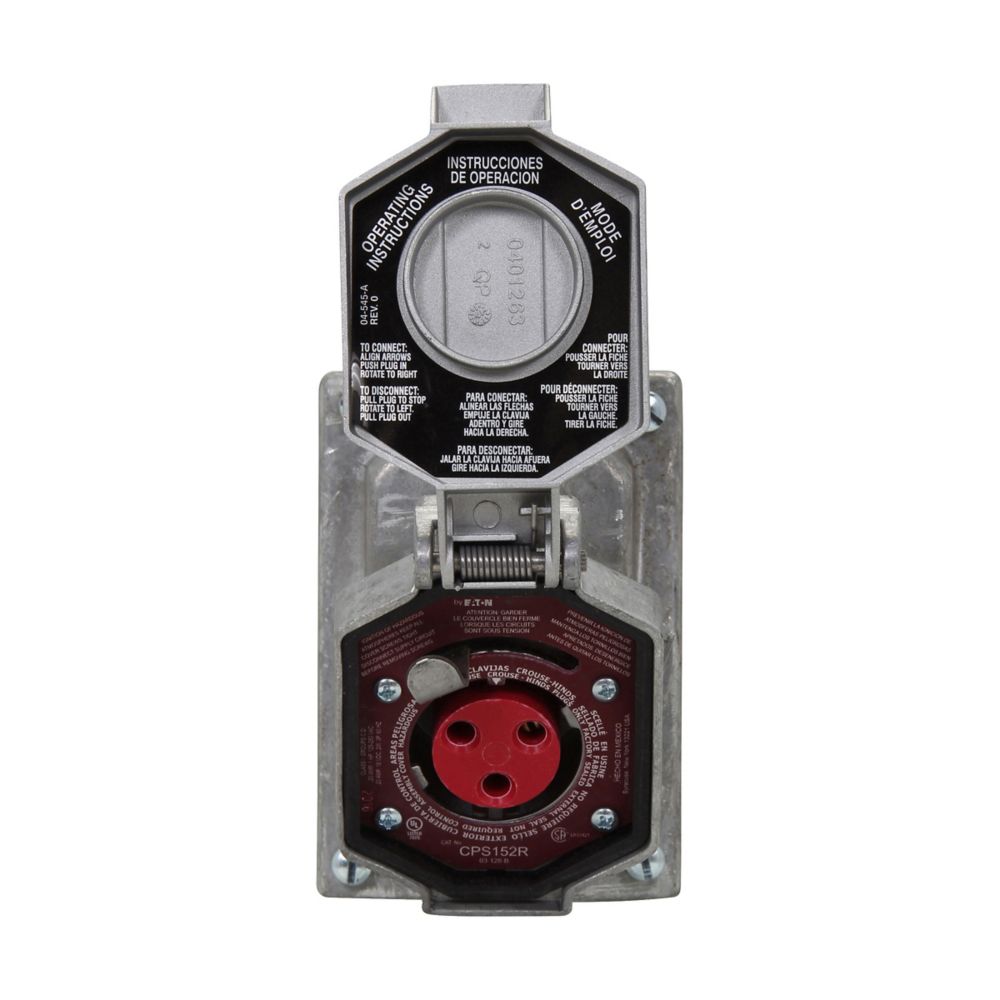

CPS732R - Eaton Crouse-Hinds Series - 7A/30A 3-Wire Four-Pole Copper-Free Aluminum Arktite CPS Receptacle
Eaton Crouse-Hinds series Arktite CPS receptacle, 7A/30A, Three-wire, four-pole, Brass contacts, 60 Hz, Style 2, 1 HP/3 HP, Copper-free aluminum, Factory sealed, Delayed action circuit breaking, 125-250 Vac/480 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CPS receptacle |
| Catalog Number |
CPS732R |
| UPC |
782274186207 |
| Product Length/Depth |
5.125 in |
| Product Height |
6.72 in |
| Product Width |
3.5 in |
| Product Weight |
2.2 lb |
| Product Type |
Receptacle |
PRODUCT SPECIFICATIONS
| Grounding style |
Style 2 |
| Amperage Rating |
7A/30A |
| Configuration |
Three-wire, four-pole |
| Voltage rating |
125-250 Vac/480 Vac |
| Horsepower |
1 hp/3 hp |
| Frequency rating |
60 Hz |
| Material |
Copper-free aluminum |
| Contact material |
Brass |
| Special features |
Factory sealed |
| Type |
Delayed action circuit breaking |
