Description
General Specifications

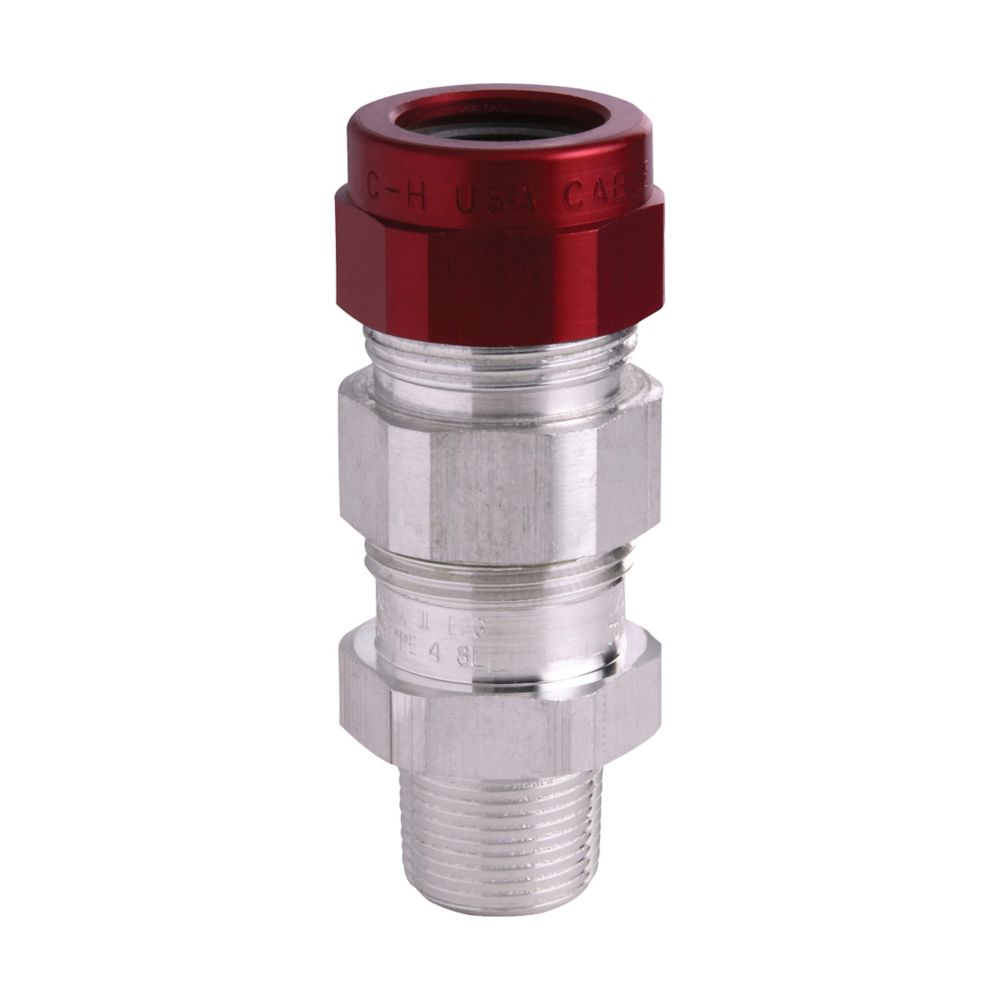

| Product Name | Eaton Crouse-Hinds series TMCX cable gland |
| Catalog Number | TMCX9352 |
| UPC | 782274414751 |
| Product Length/Depth | 9.38 in |
| Product Height | 5.38 in |
| Product Width | 5.38 in |
| Product Weight | 10.2 lb |
| Product Type | Cable gland |
Certifications and Compliances
| Area classification | Hazardous/Classified Locations |
| Standards type | NEC/CEC |
| NEC hazardous rating |
Class I, Division 1 Class II, Division 1 Class III |
| NEMA Rating | 4 |
Product Specifications
| Protection type | Explosion-proof |
| Cable type |
TECK armoured Tray cable Metal-clad with interlocked or continuously welded corrugated armoured |
| Gland type | Armoured Barrier and Non-armoured Barrier |
| Material | Aluminum |
| Thread Size | 3-1/2" |
| Thread type | NPT |
| Armor (min/max) | 2.95-3.52" |
| Outer sheath (min/max) | 3.02-3.78" |
