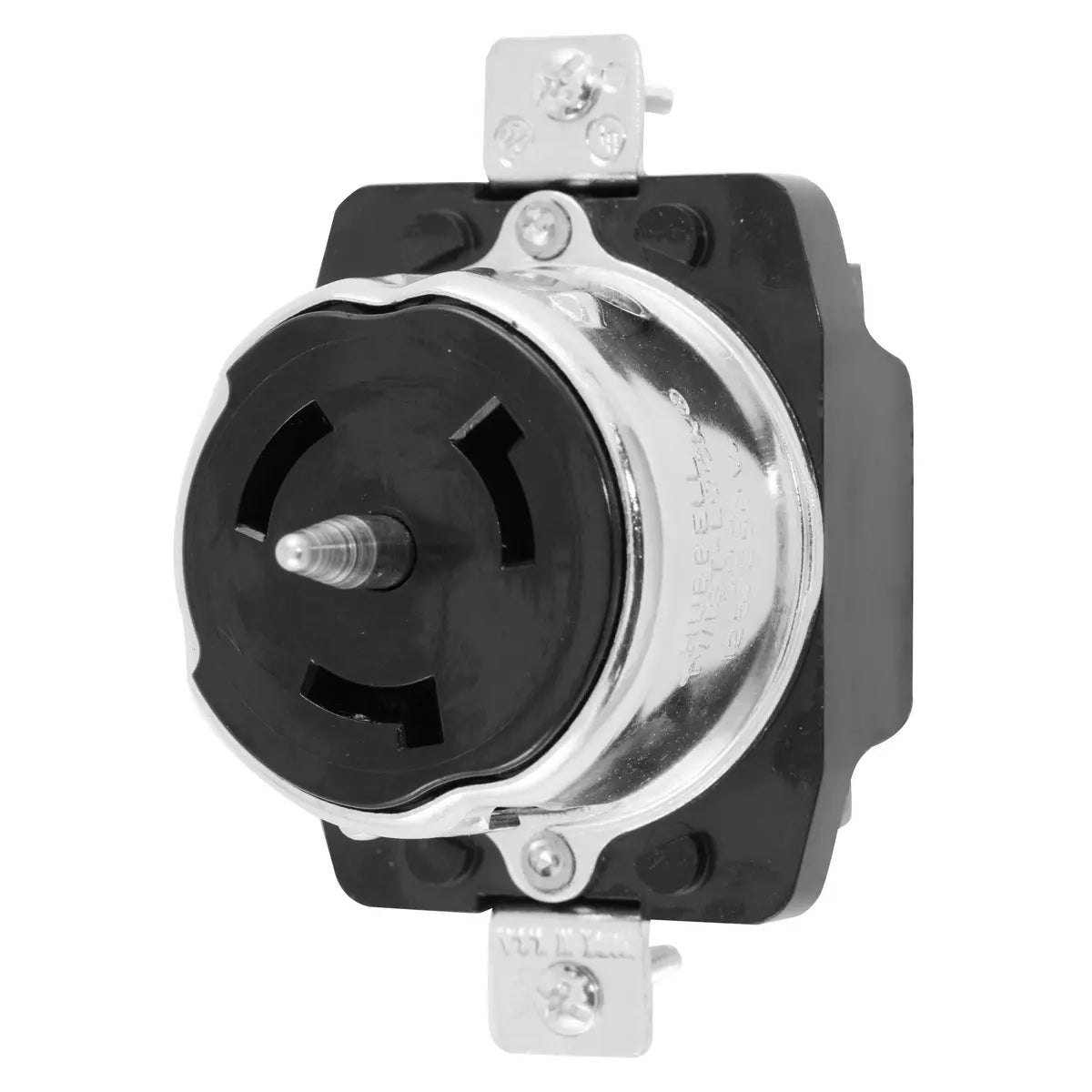

CS6369 - Hubbell Wiring Device-Kellems - 50A 125/250V 3-Pole 4-Wire Grounding Twist-Lock Receptacle
Locking Devices, Twist-Lock(R), Industrial, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Hubbell's 50 Amp Twist-Lock(R) Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip's offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
CS6369 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
No |
| Item Type |
Single Receptacle |
| Material |
Phenolic |
| Material - Mounting Hardware |
Screw Mounting |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V0
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
|
| Specifications |
- Body - Phenolic
- Contacts - Brass
- Face - Phenolic
- Insulator - Phenolic
- Terminal Screws - Steel
|
| Type |
Device |
| UPC |
783585828107 |
Dimensions
| Dimensions |
2.69 in x 2.12 in x 2.36 in |
| Height |
2.36 in |
| Length |
2.69 in |
| Width |
2.12 in |
| Weight |
0.8 lb |
Electrical Ratings
| Amperage Rating |
50 A |
| Connectivity |
Screw Terminals |
| Current Amperage Description |
50 Amp |
| Current Rating |
50 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
125/250 VAC |
| Voltage Rating Description |
125/250V AC |
Conductor Related
| Number Of Poles |
3-Pole |
| Number of Wires |
4-Wire |
| Wire Size |
#10 AWG to #6 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - UL 94 V0
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact)
- Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
|
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
1600 |
