Description

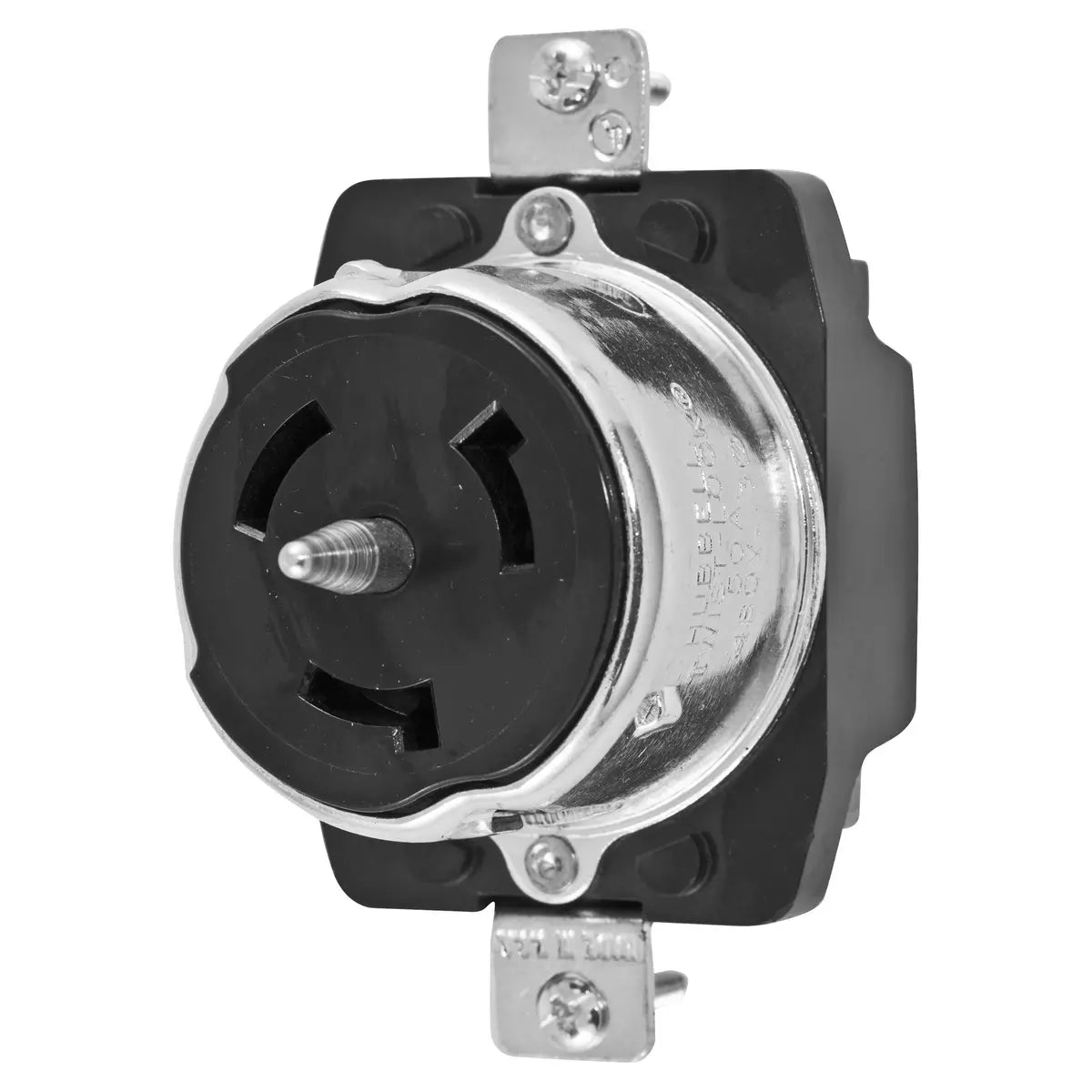

CS8169 - Hubbell Wiring Device-Kellems - 50A 3-Phase 480V 3-Pole 4-Wire Grounding Twist-Lock Receptacle
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | CS8169 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | No |
| Item Type | Receptacles |
| Material | Phenolic |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Receptacle |
| UPC | 783585828503 |
Dimensions
| Dimensions | 2.69 in x 2.11 in x 2.36 in |
| Display Size | Standard Sized Product |
| Height | 2.36 in |
| Length | 2.69 in |
| Weight | 0.75 lb |
| Width | 2.11 in |
Electrical Ratings
| Amperage Rating | 50 A |
| Connectivity | Screw Terminals |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 3-Phase Delta 480 VAC |
| Voltage Rating Description | 3-Phase Delta 480 VAC |
Conductor Related
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #10 AWG to #6 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 1600 |
