Description

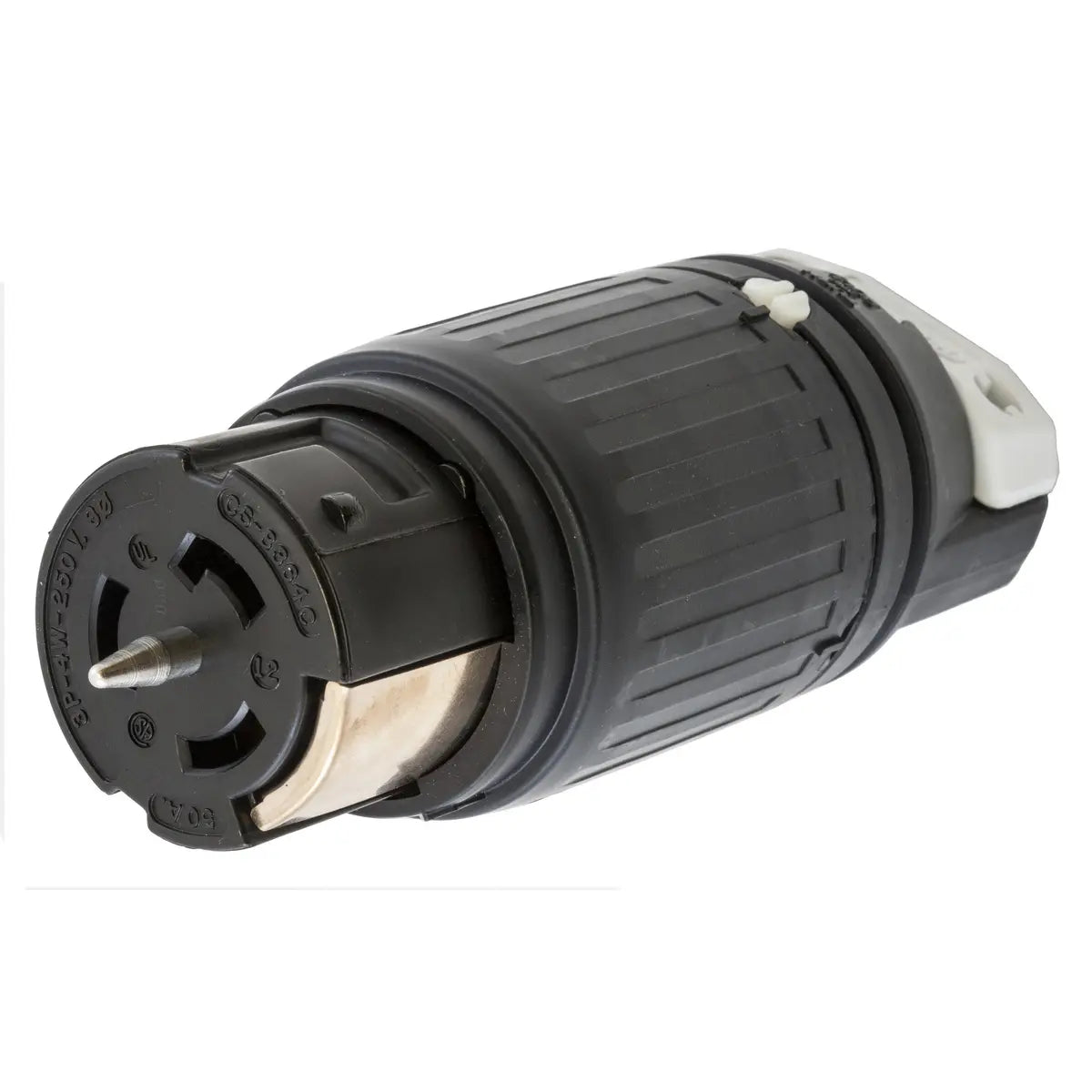

CS8364C - Hubbell Wiring Device-Kellems - 50A 3‑Phase 250V AC 3‑Pole 4‑Wire Grounding Twist‑Lock Female Connector Body
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Thermoplastic polyester interior provides heat resistance and impact strength
- Oversized contacts minimize operating temperature
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | CS8364C |
| Color |
Black, White
|
| Cord Range | .830"-1.250" (21.08-31.75 mm) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | No |
| Insulation | Insulated Body |
| Item Type | Insulgrip Connector |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Connector Body |
| UPC | 783585829104 |
Dimensions
| Dimensions | 6.50 in x 2.56 in x 2.50 in |
| Display Size | Standard |
| Height | 2.5 in |
| Length | 6.5 in |
| Weight | 1.1 lb |
| Width | 2.56 in |
Electrical Ratings
| Amperage Rating | 50 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 3 - Phase Delta 250 VAC |
| Voltage Rating Description | 3-Phase Delta 250 VAC |
Conductor Related
| Cable Range | 0.830 - 1.250 in |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #8 AWG to #4 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 1190 |
