Description

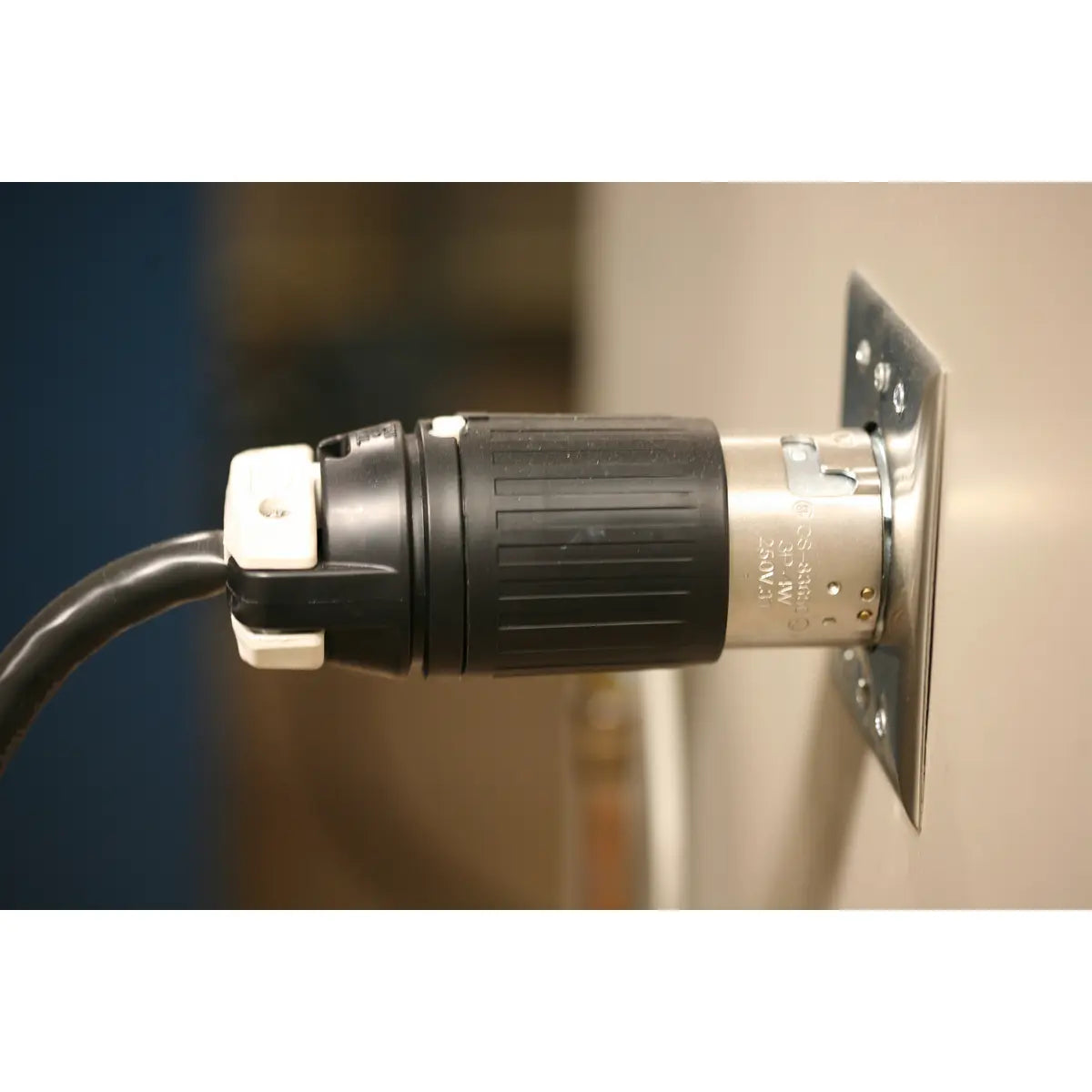

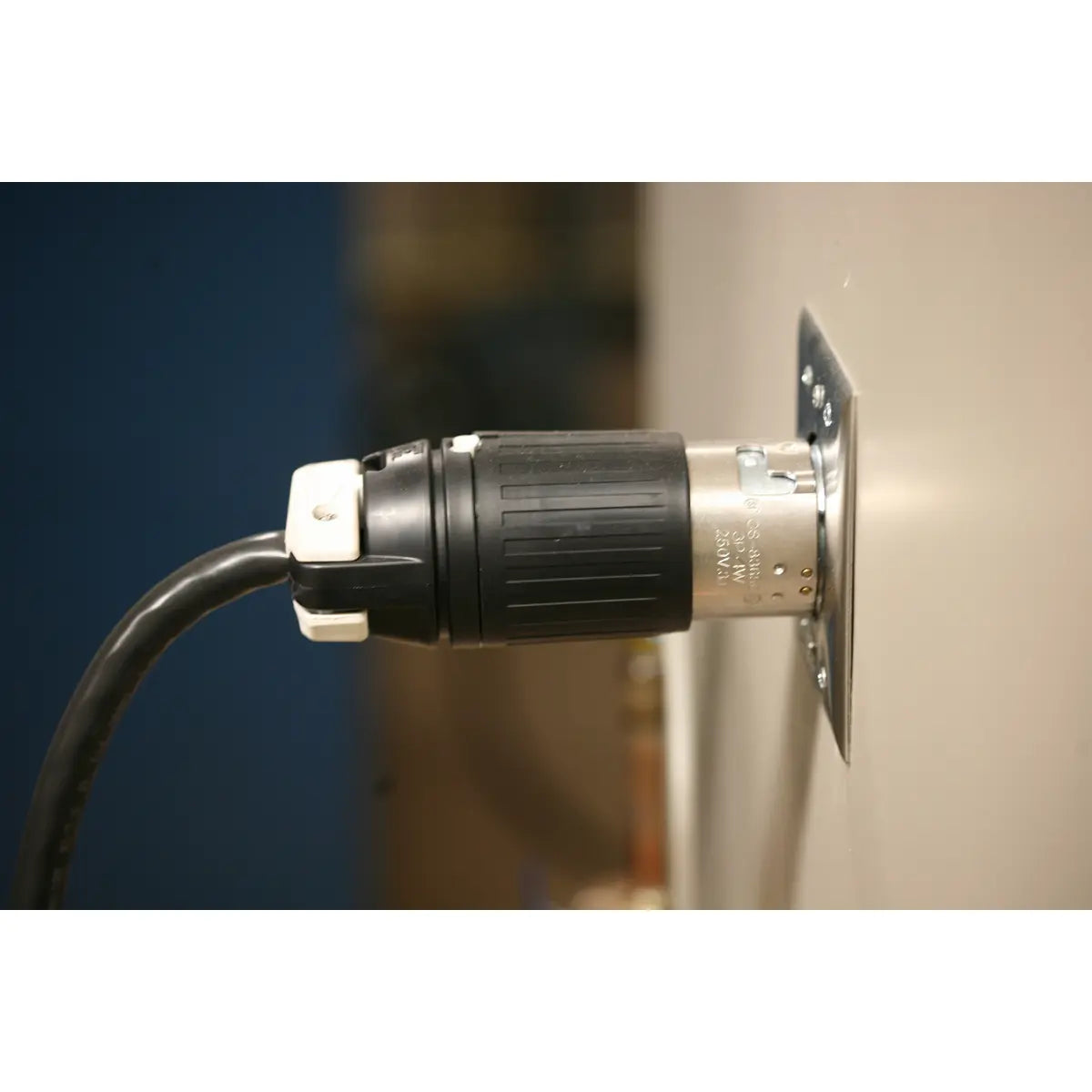

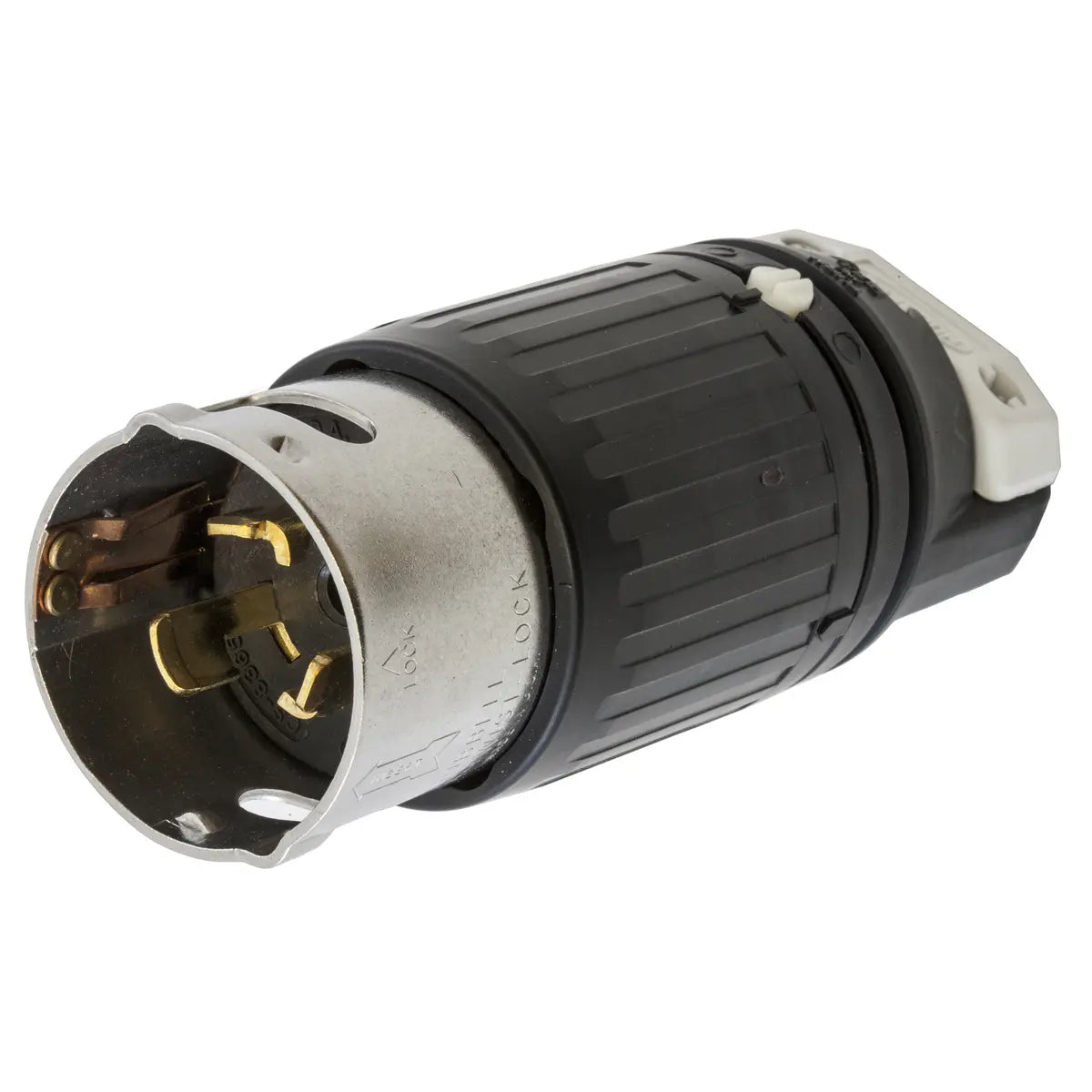

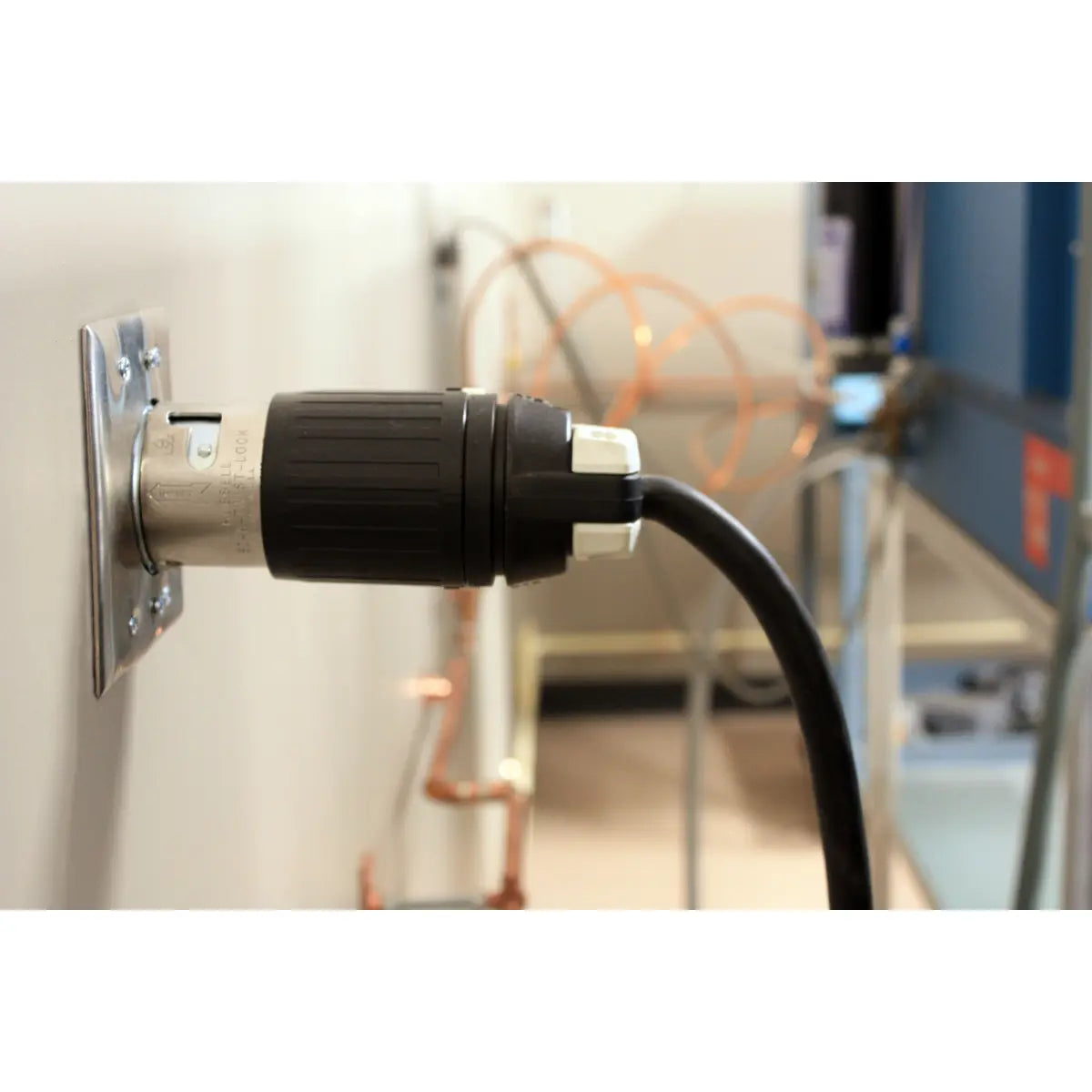

CS8365C - Hubbell Wiring Device-Kellems - 50A 3‑Phase 250V AC 3‑Pole 4‑Wire Grounding Twist‑Lock Male Plug
Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black and White
Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number | CS8365C |
| Color |
Black, White |
| Cord Range | .830"-1.250" (21.08–31.75 mm) |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Material | Nylon |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Specifications |
|
| Type | Plugs |
| UPC | 783585829128 |
Dimensions
| Dimensions | 6.37 in x 2.56 in x 2.56 in |
| Display Size | Standard Sized |
| Height | 2.56 in |
| Length | 6.37 in |
| Weight | 1.25 lb |
| Width | 2.56 in |
Electrical Ratings
| Amperage Rating | 50 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Three Phase |
| Voltage Rating | 3-Phase Delta 250 VAC |
| Voltage Rating Description | 3-Phase Delta 250 VAC |
Conductor Related
| Cable Range | 0.830 - 1.250 in |
| Number Of Poles | 3-Pole |
| Number Of Wires | 4-Wire |
| Wire Size | #10 AWG to #6 AWG |
Operational
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Configuration
| Cord Type | All Listed Portables |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 900 |
