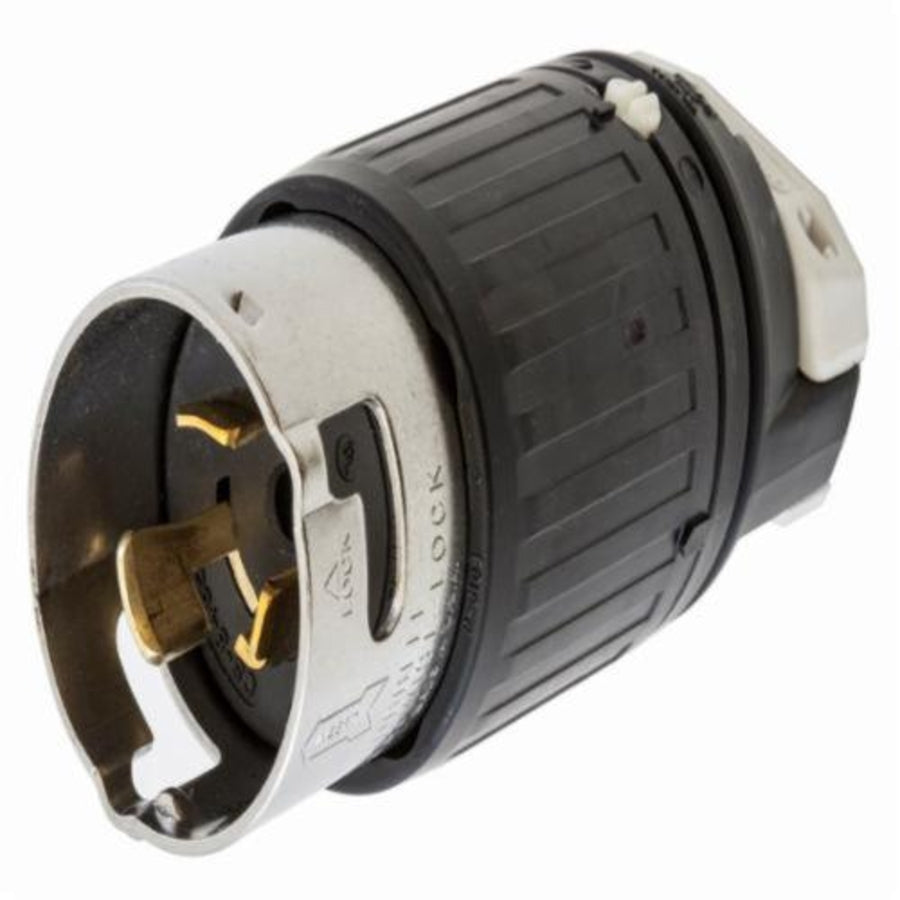

CS8465C - Hubbell Wiring Device-Kellems - 50A 480VAC 2-Pole 3-Wire Grounding Male Standard Cord Mount Locking Plug
Twist-Lock(R) Industrial Male Plug, 50A 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal
Hubbell's 50 Amp Twist-Lock(R) Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip's offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
Standard Product
GENERAL SPECIFICATIONS
| Catalog Number |
CS8465C |
| Color |
Black, White |
| Cord Range |
.830"-1.250" (21.08-31.75 mm) |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator |
Yes |
| Item Type |
Insulgrip Plug |
| Material |
Nylon |
| Material - Mounting HW |
Cord Mounted |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Operating Temperature |
Maximum continuous 75 degC - Minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
|
| Specifications |
- Blade Holder - Polyester
- Blades - Brass
- Cord Grip - Polyester
- Housing - Nylon
- Shell - Stainless Steel
- Terminal Screws - Stainless steel
|
| Type |
Plugs |
| UPC |
783585829166 |
Dimensions
| Dimensions |
6.37 in x 2.56 in x 2.56 in |
| Display Size |
Standard Sized |
| Height |
2.56 in |
| Length |
6.37 in |
| Weight |
1.25 lb |
| Width |
2.56 in |
Electrical Ratings
| Amperage Rating |
50 A |
| Connectivity |
Pressure Terminal Screws |
| Current / Amperage Rating |
50 A |
| Current Rating |
50 A |
| Dielectric Strength |
Withstands 2,000V minimum |
| Phase |
Single Phase |
| Voltage Rating |
480 VAC |
| Voltage Rating Description |
480 VAC |
Conductor Related
| Cable Range |
0.830 - 1.250 in |
| Number Of Poles |
2-Pole |
| Number of Wires |
3-Wire |
| Wire Size |
#10 AWG to #6 AWG |
Operational
| Operating Temperature
|
Maximum continuous 75 degC and minimum -40 degC without Impact |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Environmental - Flammability - HB or better
- Environmental - Operating Temperatures - Maximum continuous 75 degC minimum -40 degC (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
|
Configuration
| Cord Type
|
All Listed Portables |
Logistics
| Carton Quantity |
10 |
| Pallet Quantity |
1360 |
