Description

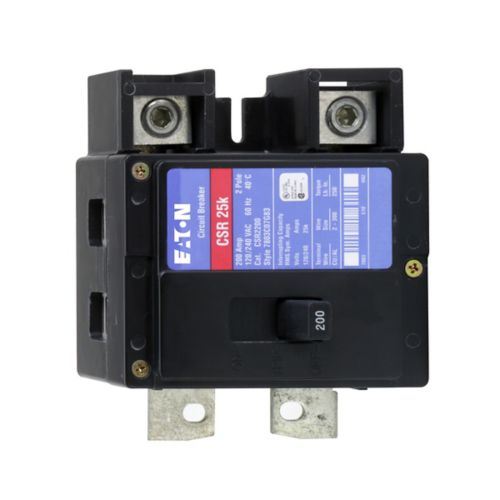

CSR2200N - Eaton - 200 A Two-Pole Standard Circuit Breaker Single-Phase Type CSR Standard Circuit Breakers
Eaton Type CSR Standard Circuit Breaker, Standard circuit breaker, 200 A,25 kAIC, Two-pole,120/240 V, CH,#2 - 300 kcmil, CSR, For use in type ECC unit enclosures, Single-phase
GENERAL SPECIFICATIONS
| Product Name |
Eaton CSR main breaker
|
| Catalog Number |
CSR2200N
|
| UPC |
782113098463
|
| Product Length/Depth |
5.3 in
|
| Product Height |
3.52 in
|
| Product Width |
4.2 in
|
| Product Weight |
2.5 lb
|
| Certifications |
UL 489
|
| Product Type |
Main breaker
|
PRODUCT SPECIFICATIONS
| Used with |
For use in Type ECC Unit Enclosures
|
| Amperage Rating |
200 A
|
| Voltage rating |
120/240 V
|
| Circuit breaker frame type |
CSR
|
| Interrupt rating |
25 kAIC
|
| Main circuit breaker |
CH
|
| Wire size |
#2 AWG-300 kcmil
|
| Number of poles |
Two-pole
|
| Type |
Standard circuit breaker
|
PRODUCT DATASHEET
