Description

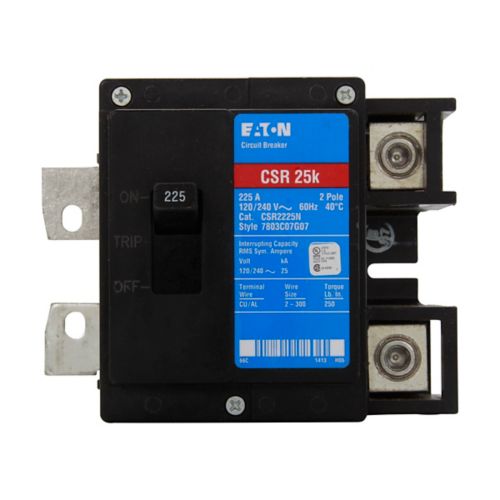

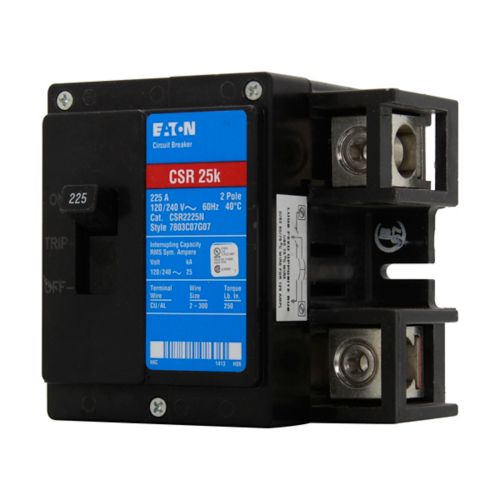

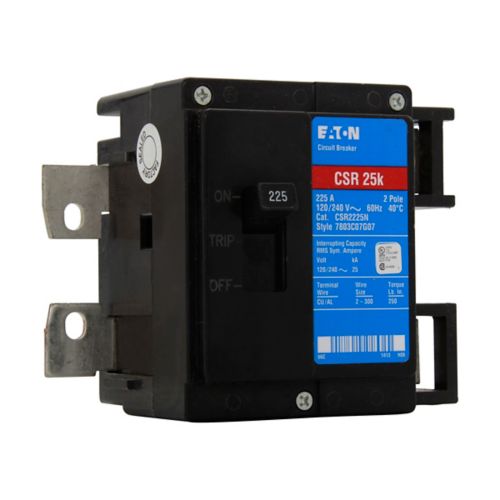

CSR2225N - Eaton - 225 A Two-Pole Single-Phase Type CSR Standard Circuit Breakers
Eaton Type CSR Standard Circuit Breaker, Standard circuit breaker, 225 A, 25 kAIC, Two-pole, 120/240 V, CH, #2 - 300 kcmil, CSR, For use in type ECC unit enclosures, Single-phase
GENERAL SPECIFICATIONS
| Product Name |
Eaton CSR main breaker
|
| Catalog Number |
CSR2225N
|
| UPC |
782114106242
|
| Product Length/Depth |
3.1 in
|
| Product Height |
3.1 in
|
| Product Width |
2 in
|
| Product Weight |
3 lb
|
| Certifications |
UL 489
|
| Product Type |
Main breaker
|
PRODUCT SPECIFICATIONS
| Used with |
For use in Type ECC Unit Enclosures
|
| Amperage Rating |
225 A
|
| Voltage rating |
120/240 V
|
| Circuit breaker frame type |
CSR
|
| Interrupt rating |
25 kAIC
|
| Main circuit breaker |
CH
|
| Wire size |
#2 AWG-300 kcmil
|
| Number of poles |
Two-pole
|
| Type |
Standard circuit breaker
|
