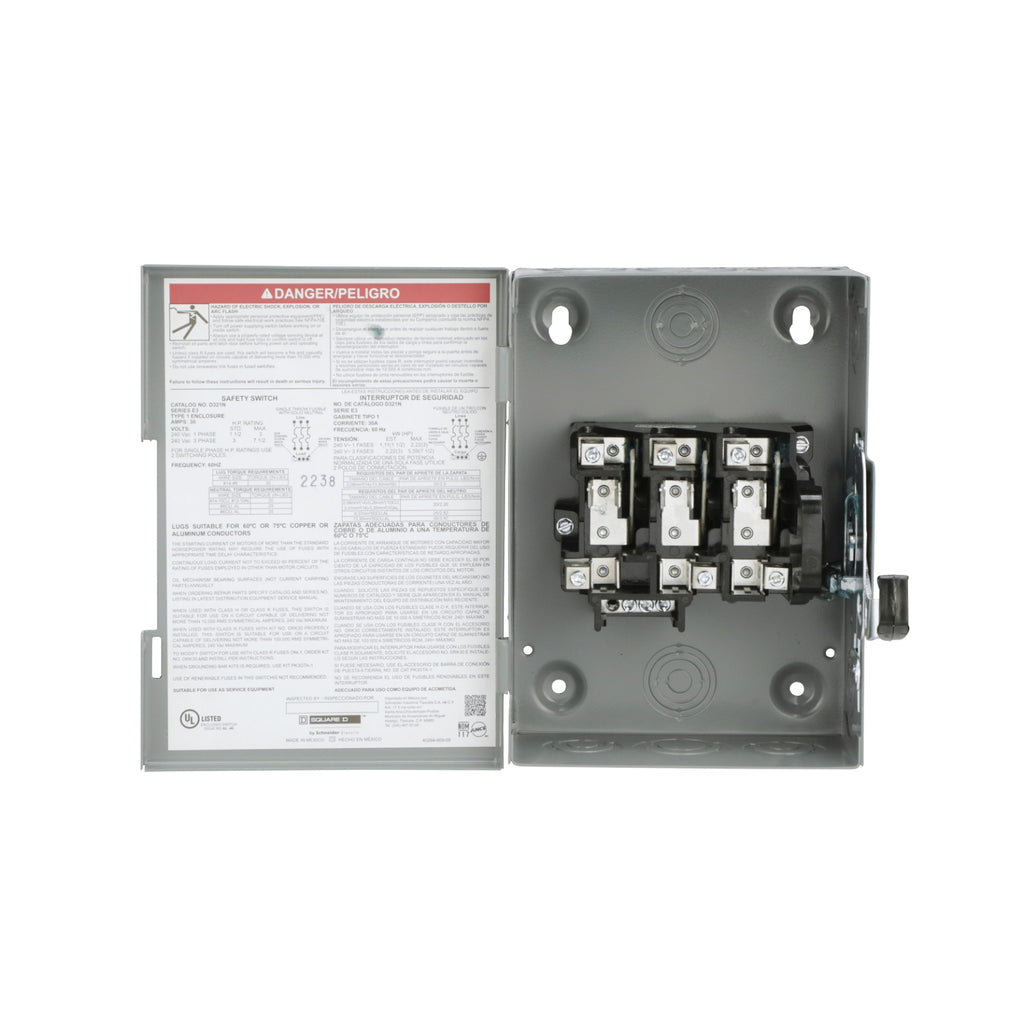

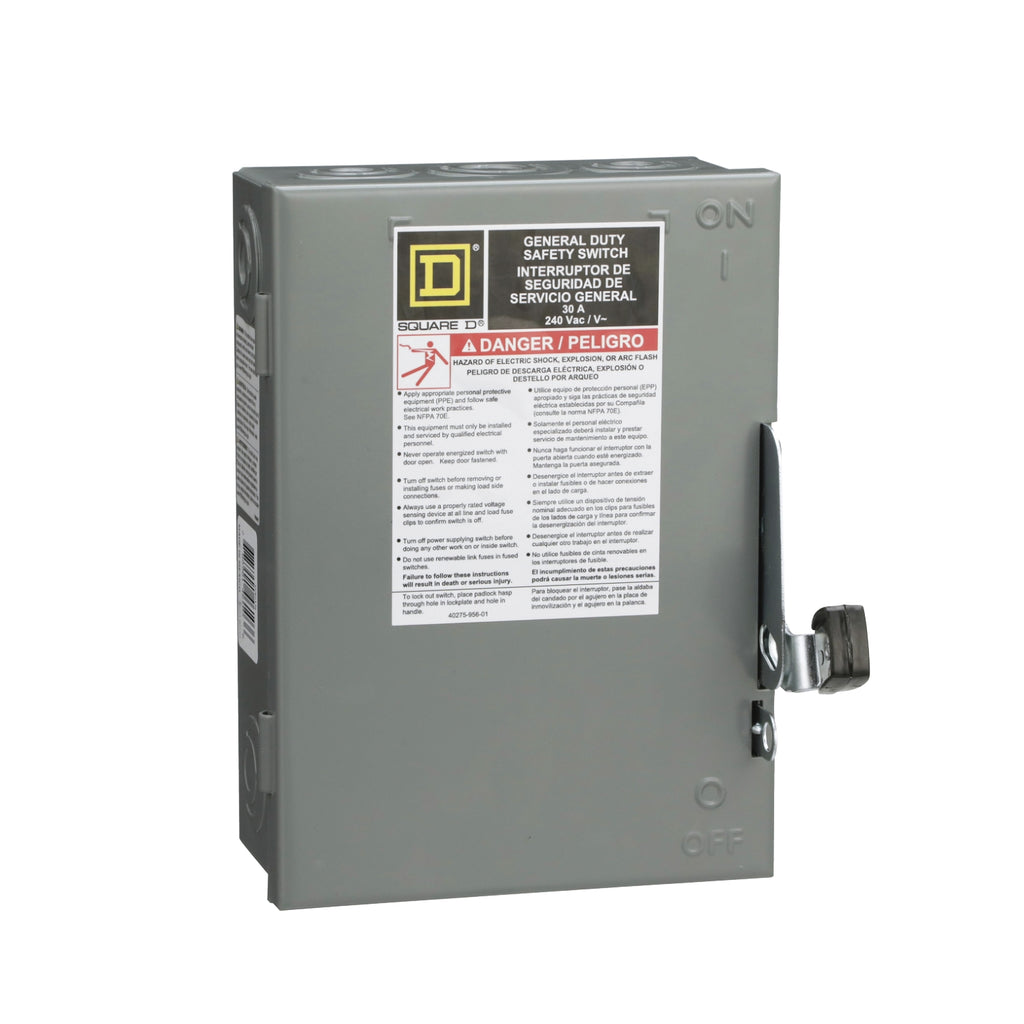

D321N - Schneider Electric - Square D Safety Switch General Duty Fusible 3 Pole 4 Wire 240VAC 30A Type 1 with Neutral
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | General duty |
| Device Application | Residential |
| Disconnect Type | Fusible disconnect switch |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 3 |
| Current Rating | 30 A |
| Voltage Rating | 240 V AC |
| Enclosure Rating NEMA | NEMA 1 |
| Motor power hp | 1.5 hp at 240 V AC 60 Hz for 1 phase motors 3 hp at 240 V AC 60 Hz for 3 phase motors 3 hp at 240 V AC 60 Hz for 1 phase motors 7.5 hp at 240 V AC 60 Hz for 3 phase motors |
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
|---|---|
| Fuse type | H, K or R |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 4-wire (3PH + G) |
| Wire Size | AWG 14...AWG 6 copper AWG 12...AWG 6 aluminium |
| Tightening torque | 30 lbf.in (3.4 N.m) 0.003…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6) |
| Depth | 3.63 in (92.20 mm) |
| Width | 7.25 in (184.15 mm) |
| Height | 9.25 in (234.95 mm) |
| Net Weight | 19.8 lb(US) (9 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US1DE1A00006 |
|---|---|
| Discount Schedule | DE1A |
| GTIN | 785901461036 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.20 in (13.208 cm) |
| Package 1 Width | 6.80 in (17.272 cm) |
| Package 1 Length | 9.20 in (23.368 cm) |
| Package 1 Weight | 4.451 lb(US) (2.019 kg) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.90 in (25.146 cm) |
| Package 2 Width | 8.90 in (22.606 cm) |
| Package 2 Length | 19.30 in (49.022 cm) |
| Package 2 Weight | 23.250 lb(US) (10.546 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 150 |
| Package 3 Height | 40.00 in (101.6 cm) |
| Package 3 Width | 40.00 in (101.6 cm) |
| Package 3 Length | 48.00 in (121.92 cm) |
| Package 3 Weight | 699.0004 lb(US) (317.061 kg) |
