D322N - Schneider Electric - Square D Safety Switch General Duty Fusible 3 Pole 4 Wire 240VAC 60A Type 1 with Neutral

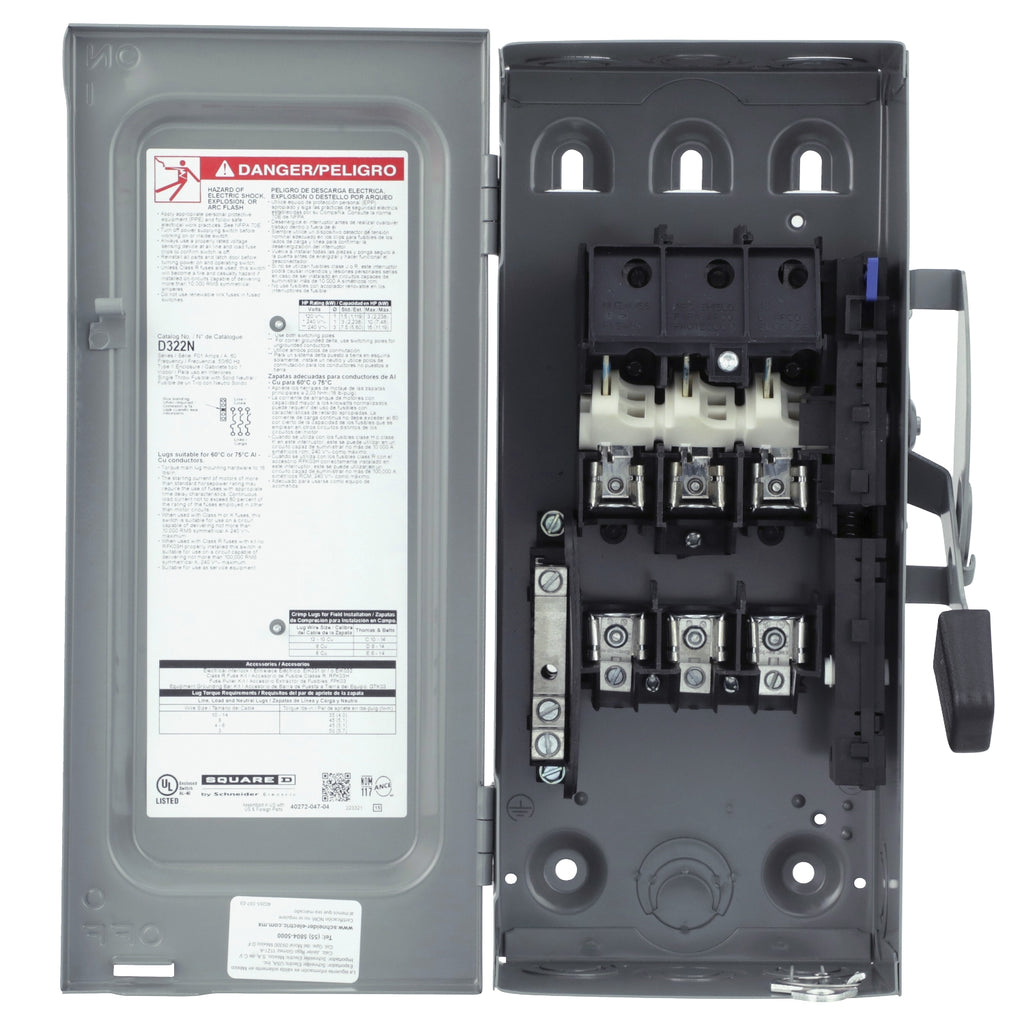

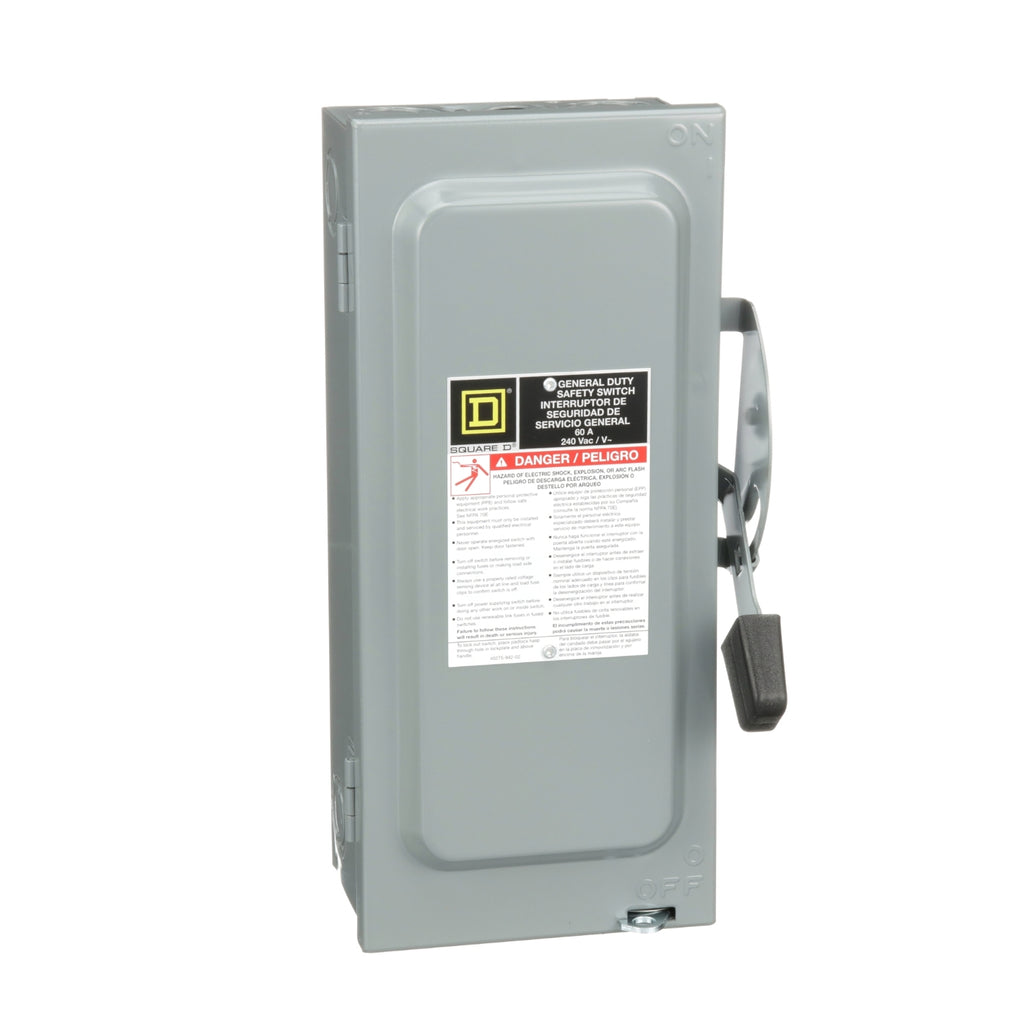

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 60A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | General duty |
| Device Application | Residential |
| Disconnect Type | Fusible disconnect switch |
| Factory Installed Neutral | Neutral (factory installed) |
| Number of Poles | 3 |
| Current Rating | 60 A |
| Voltage Rating | 240 V AC |
| Enclosure Rating NEMA | NEMA 1 |
| Motor power hp | 1.5 hp at 120 V AC 60 Hz for 1 phase motors 3 hp at 120 V AC 60 Hz for 3 phase motors 3 hp at 240 V AC 60 Hz for 1 phase motors 7.5 hp at 240 V AC 60 Hz for 3 phase motors 10 hp at 240 V AC 60 Hz for 1 phase motors 15 hp at 240 V AC 60 Hz for 3 phase motors |
| Short Circuit Current Rating | 100 kA maximum depending on fuse H, K or R |
|---|---|
| Fuse type | H, K or R |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring configuration | 4-wire (3PH + G) |
| Wire Size | AWG 12...AWG 3 aluminium AWG 14...AWG 3 copper |
| Tightening torque | 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.08…5.26 mm²) (AWG 14...AWG 10) 45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4) 50 lbf.in (5.6 N.m) 0.04 in² (26.67 mm²) (AWG 3) |
| Depth | 4.87 in (123.70 mm) |
| Width | 7.45 in (189.23 mm) |
| Height | 14.88 in (377.95 mm) |
| Net Weight | 8.8 lb(US) (4 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US1DE1A00006 |
|---|---|
| Discount Schedule | DE1A |
| GTIN | 785901461234 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.20 in (13.208 cm) |
| Package 1 Width | 7.60 in (19.304 cm) |
| Package 1 Length | 16.20 in (41.148 cm) |
| Package 1 Weight | 8.0006 lb(US) (3.629 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 45.50 in (115.570 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 981.999 lb(US) (445.427 kg) |
