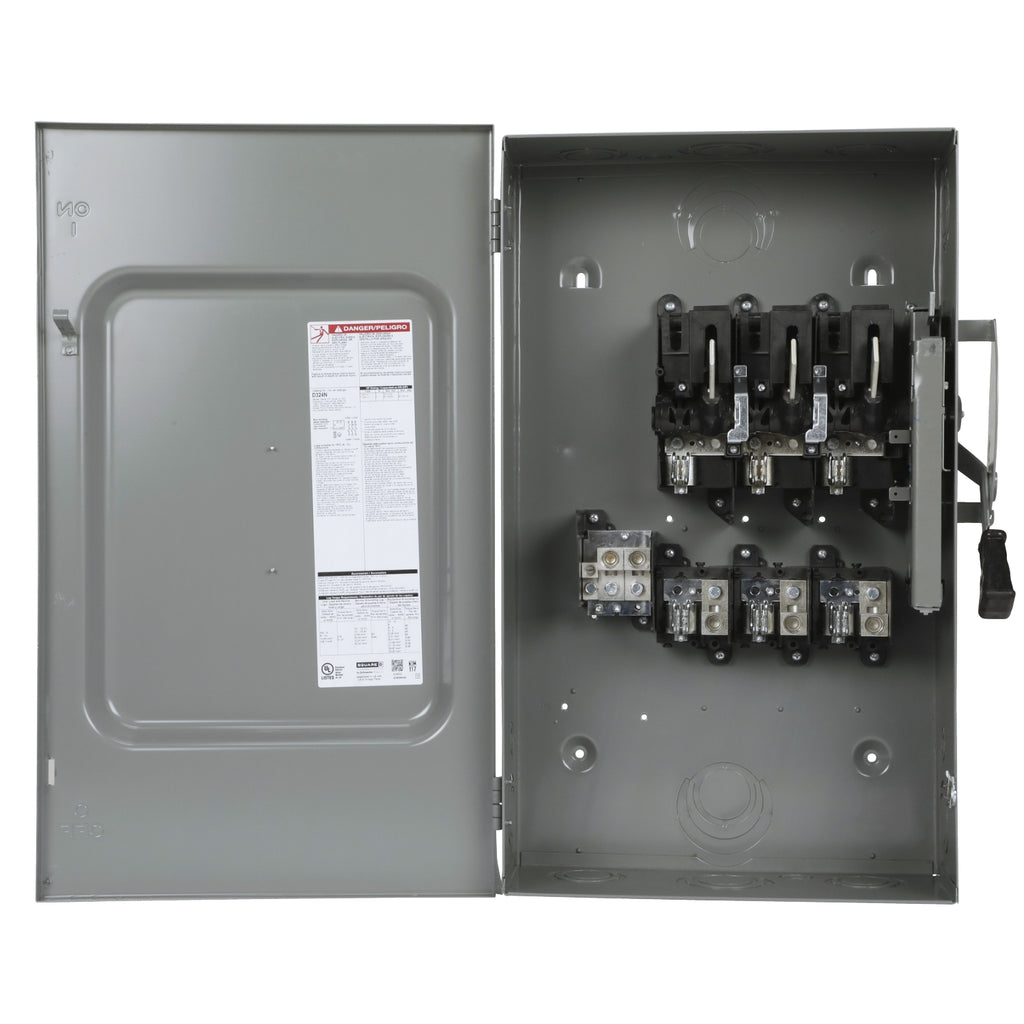

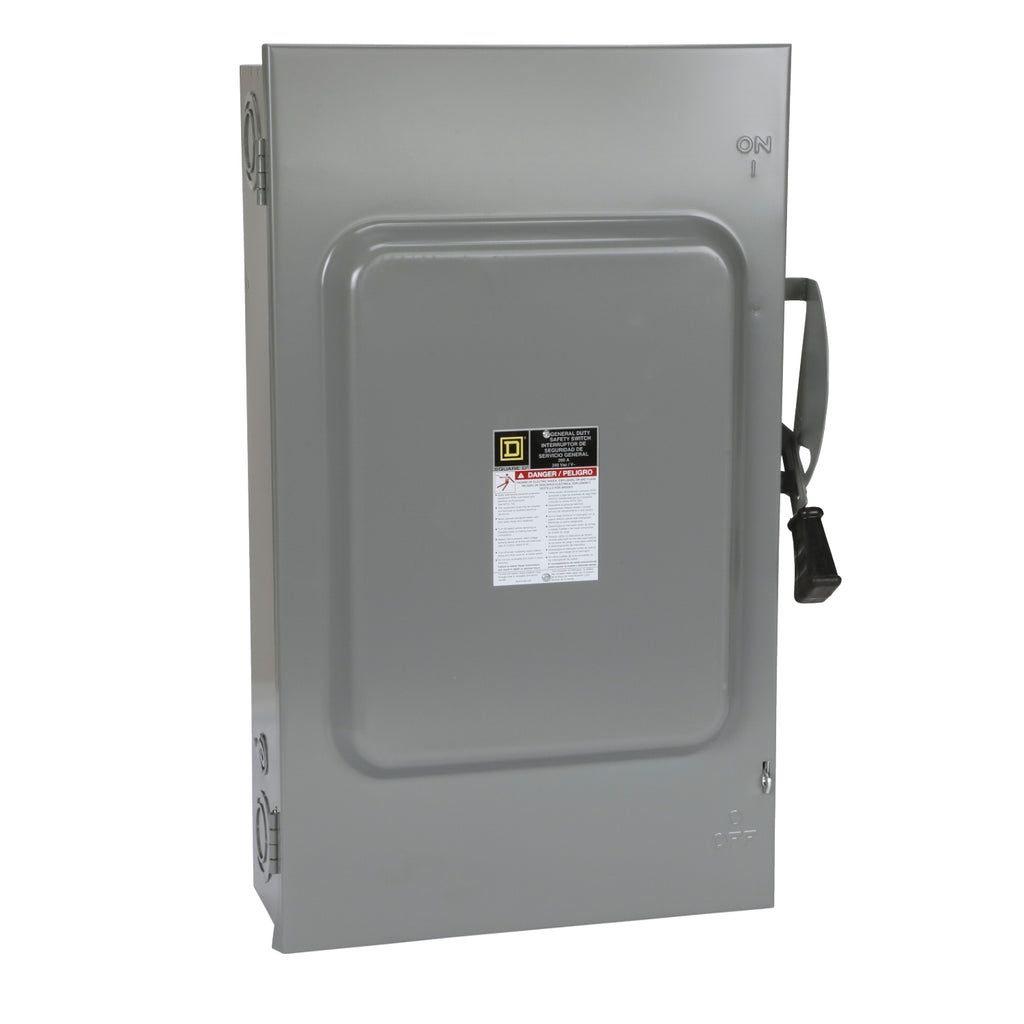

D324N - Schneider Electric - Square D Safety Switch General Duty Fusible 3 Pole 4 Wire 240VAC 200A Type 1 with Neutral
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 200A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
Main
| Product |
Single Throw Safety Switch |
| Duty Rating |
General duty |
| Device Application |
Residential |
| Disconnect Type |
Fusible disconnect switch |
| Factory Installed Neutral |
Neutral (factory installed) |
| Number of Poles |
3 |
| Current Rating |
200 A |
| Voltage Rating |
240 V AC |
| Enclosure Rating NEMA |
NEMA 1 |
| Motor power hp |
15 hp at 240 V AC 60 Hz for 1 phase motors
25 hp at 240 V AC 60 Hz for 3 phase motors
60 hp at 240 V AC 60 Hz for 3 phase motors |
Complementary
| Short Circuit Current Rating |
100 kA maximum depending on fuse H, K or R |
| Fuse type |
H, K or R |
| Mounting Type |
Surface |
| Electrical Connection |
Lugs |
| Wiring configuration |
4-wire (3PH + G) |
| Wire Size |
AWG 6...250 kcmil aluminium/copper |
| Tightening torque |
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil) |
| Depth |
8.25 in (209.55 mm) |
| Width |
19 in (482.6 mm) |
| Height |
29 in (736.6 mm) |
| Net Weight |
55.49 lb(US) (25.17 kg) |
Environment
| Certifications |
UL listed file E2875 |
Ordering and shipping details
| Category |
US1DE1A00006 |
| Discount Schedule |
DE1A |
| GTIN |
785901461470 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
8.60 in (21.844 cm) |
| Package 1 Width |
19.30 in (49.022 cm) |
| Package 1 Length |
30.50 in (77.470 cm) |
| Package 1 Weight |
43.250 lb(US) (19.618 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
15 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
660.999 lb(US) (299.824 kg) |
