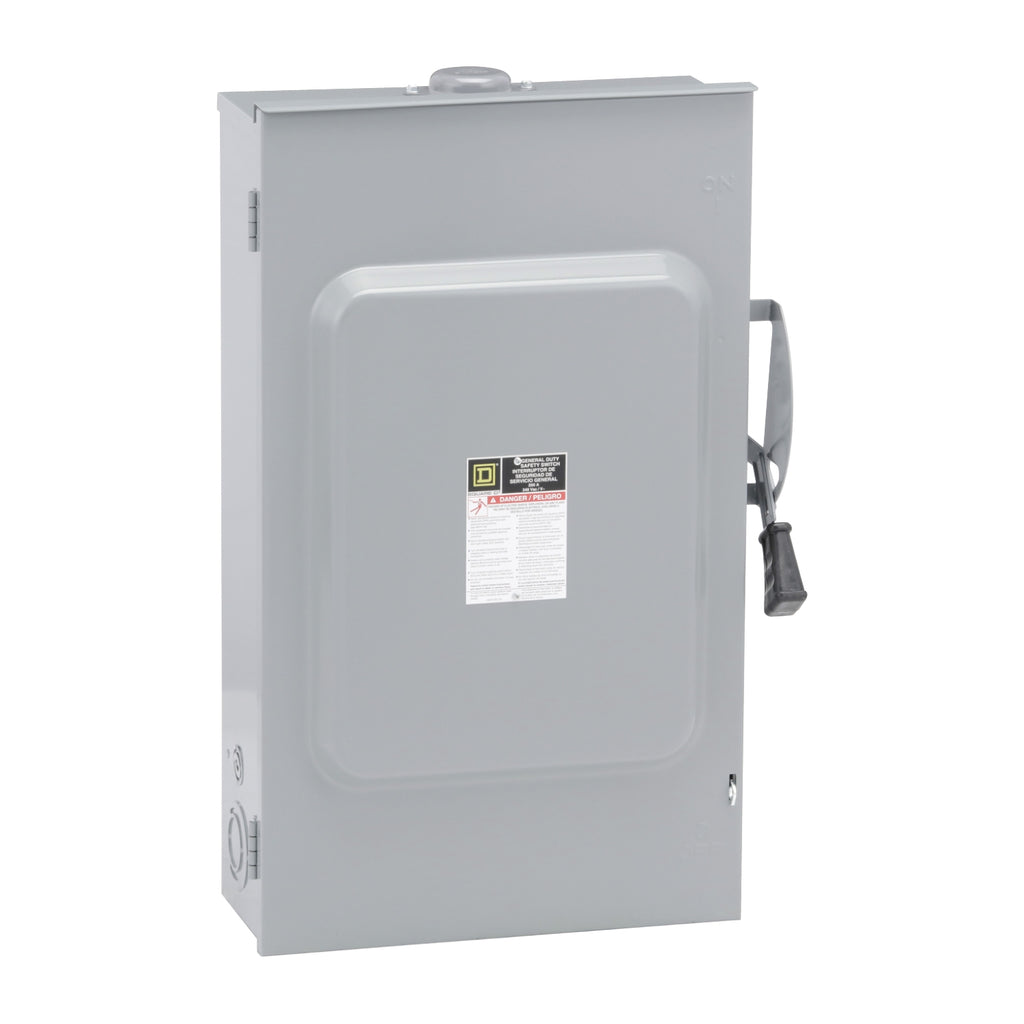

D324NRB - Schneider Electric - Square D Safety Switch General Duty Fusible 3 Pole 4 Wire 240VAC 200A Type 3R Bolt-on Hub Provision with Neutral
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 200A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 3R with bolt on provisions. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
GENERAL SPECIFICATIONS
Main
| Product |
Single Throw Safety Switch |
| Duty Rating |
General duty |
| Device Application |
Residential |
| Disconnect Type |
Fusible disconnect switch |
| Factory Installed Neutral |
Neutral (factory installed) |
| Number of Poles |
3 |
| Current Rating |
200 A |
| Voltage Rating |
240 V AC |
| Enclosure Rating NEMA |
NEMA 3R |
| Motor power hp |
15 hp at 240 V AC 60 Hz for 1 phase motors
25 hp at 240 V AC 60 Hz for 3 phase motors
60 hp at 240 V AC 60 Hz for 3 phase motors |
Complementary
| Short Circuit Current Rating |
100 kA maximum depending on fuse H, K or R |
| Fuse type |
H, K or R |
| Mounting Type |
Surface |
| Electrical Connection |
Lugs |
| Wiring configuration |
4-wire (3PH + G) |
| Wire Size |
AWG 6...250 kcmil aluminium/copper |
| Tightening torque |
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil) |
| Depth |
8.5 in (215.9 mm) |
| Width |
19 in (482.6 mm) |
| Height |
29.25 in (742.95 mm) |
| Net Weight |
56.50 lb(US) (25.63 kg) |
Environment
| Certifications |
UL listed file E2875 |
Ordering and shipping details
| Category |
US1DE1A00106 |
| Discount Schedule |
DE1A |
| GTIN |
785901461524 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
8.400 in (21.336 cm) |
| Package 1 Width |
19.300 in (49.022 cm) |
| Package 1 Length |
30.800 in (78.232 cm) |
| Package 1 Weight |
44.650 lb(US) (20.253 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
15 |
| Package 2 Height |
40.000 in (101.600 cm) |
| Package 2 Width |
40.000 in (101.600 cm) |
| Package 2 Length |
48.000 in (121.920 cm) |
| Package 2 Weight |
680.0010 lb(US) (308.443 kg) |
PRODUCT DATASHEET
D324NRB_Product Datasheet
