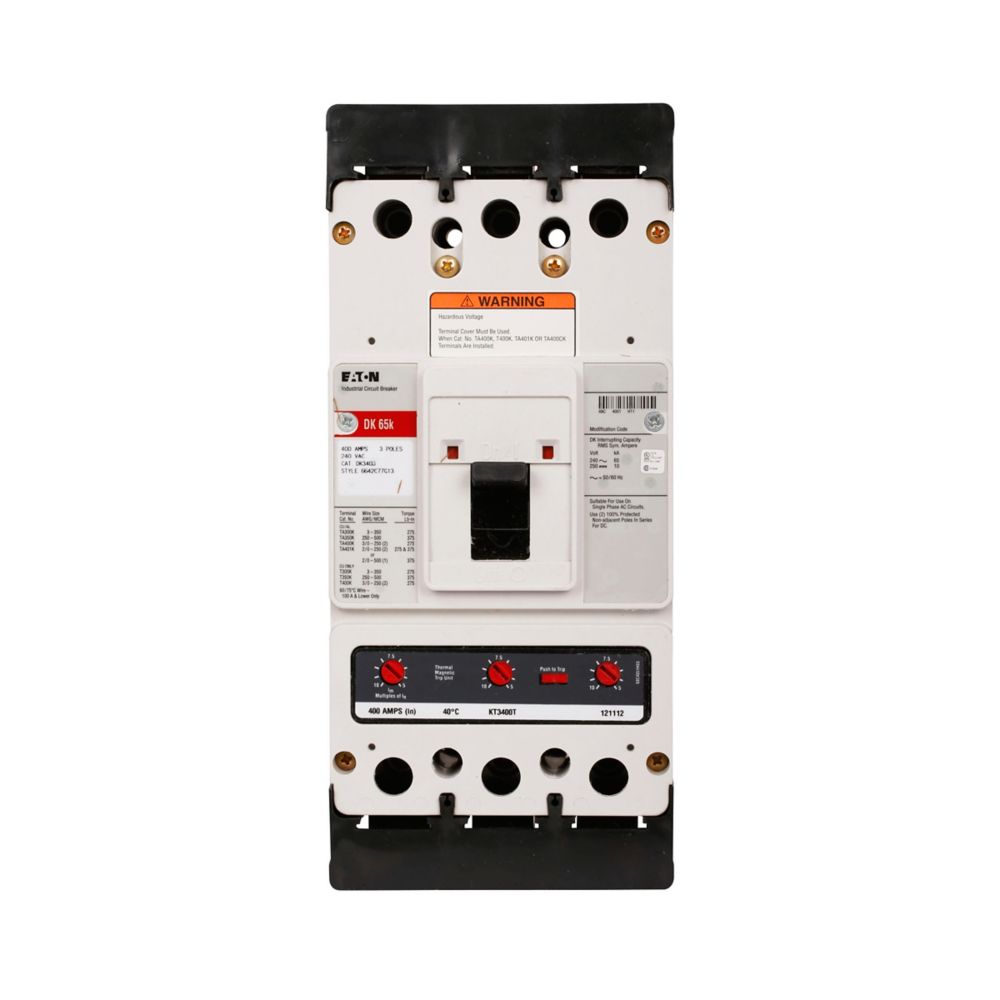

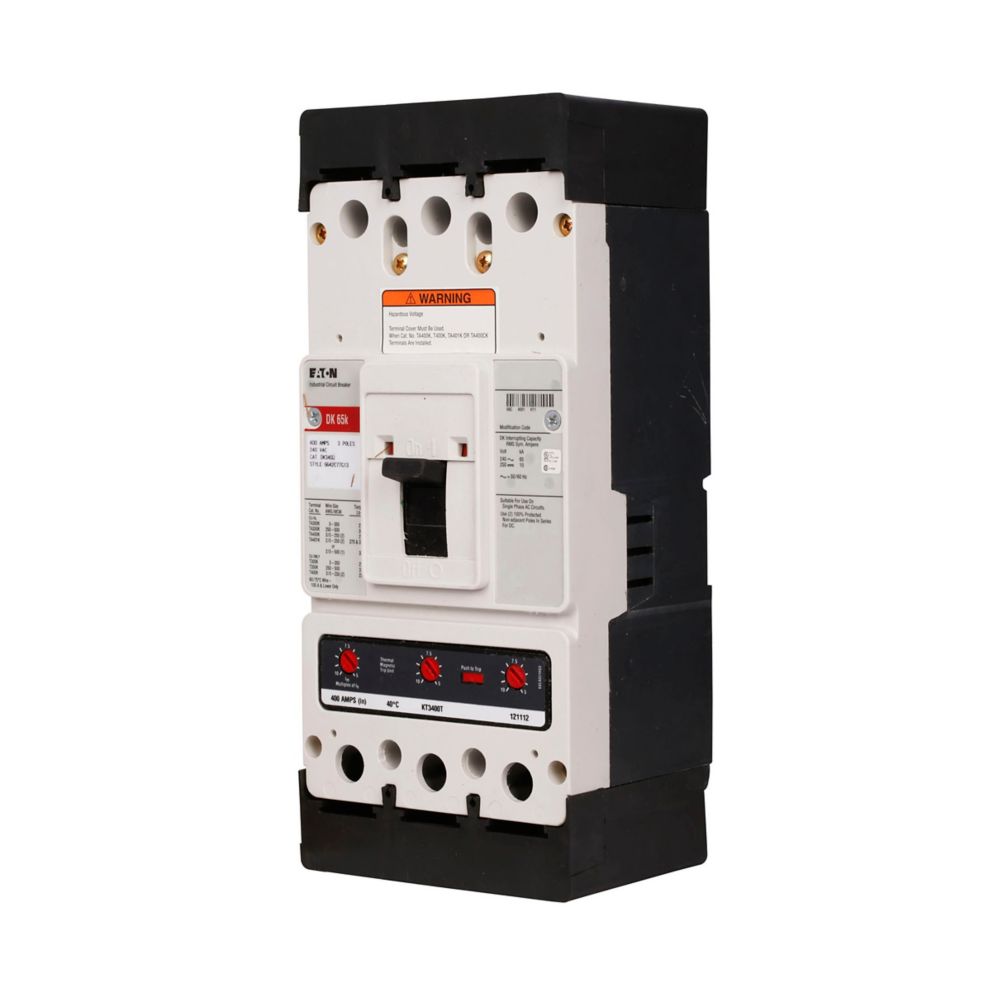

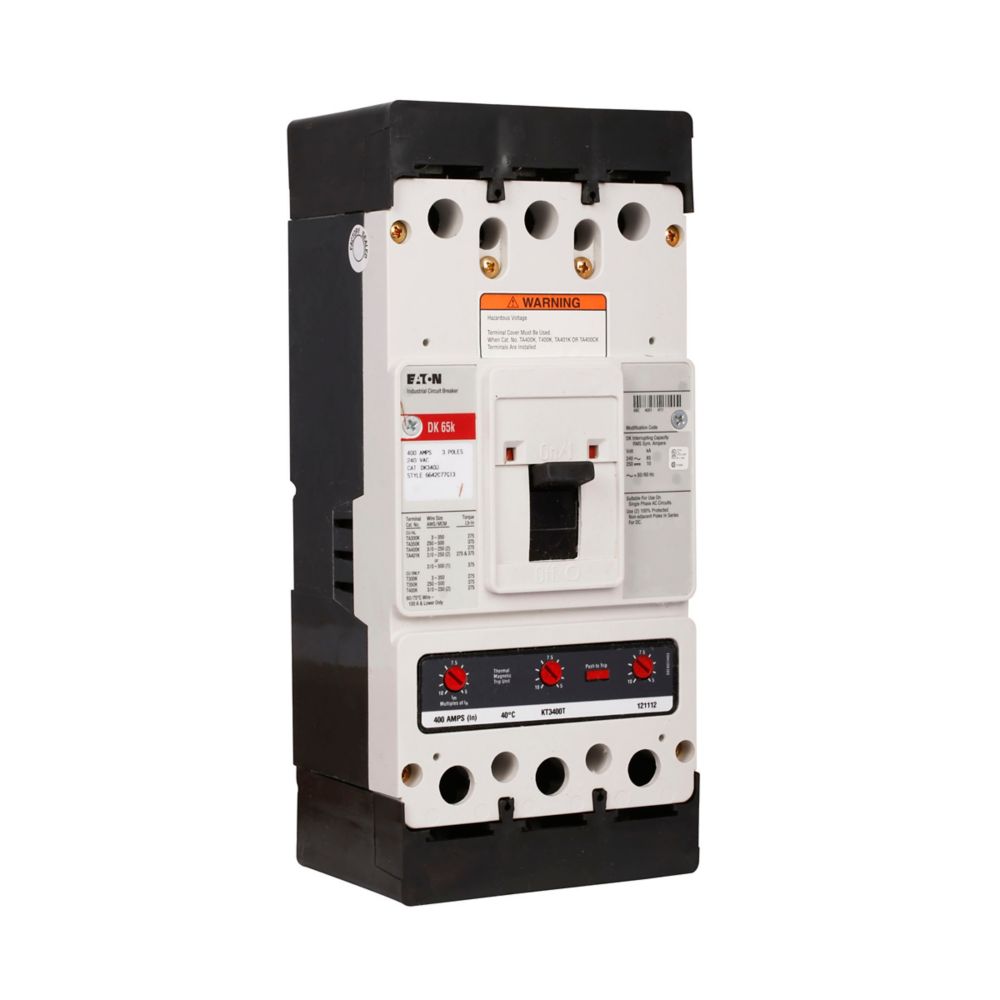

DK3300 - Eaton Cutler-Hammer - 300 Amp 3 Pole 240 Volt Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, K-frame, DK, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 300 A, 240 Vac, 250 Vdc, 65 kAIC at 240 Vac, 10 kAIC at 250 Vdc, Aluminum, Line and load, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name | Eaton Series C complete molded case circuit breaker |
| Catalog Number | DK3300 |
| UPC | 786679044131 |
| Product Length/Depth | 4.1 in |
| Product Height | 5.5 in |
| Product Width | 5.5 in |
| Product Weight | 11.5 lb |
| Certifications | UL Listed |
| Product Type | Molded case circuit breaker |
PRODUCT SPECIFICATIONS
| Amperage Rating | 300 A |
| Voltage rating | 240 Vac, 250 Vdc |
| Trip Type | T186 |
| Circuit breaker type | DK |
| Circuit breaker frame type | Complete breaker |
| Series | Series C |
| Terminals | Line and load |
| Frame | K |
| Frequency rating | 50 to 60 Hz |
| Terminal material | Aluminum |
| Interrupt rating | 65 kAIC at 240 Vac 10 kAIC at 250 Vdc |
| Number of poles | Three-pole |
| Type | Complete breaker |
