Description

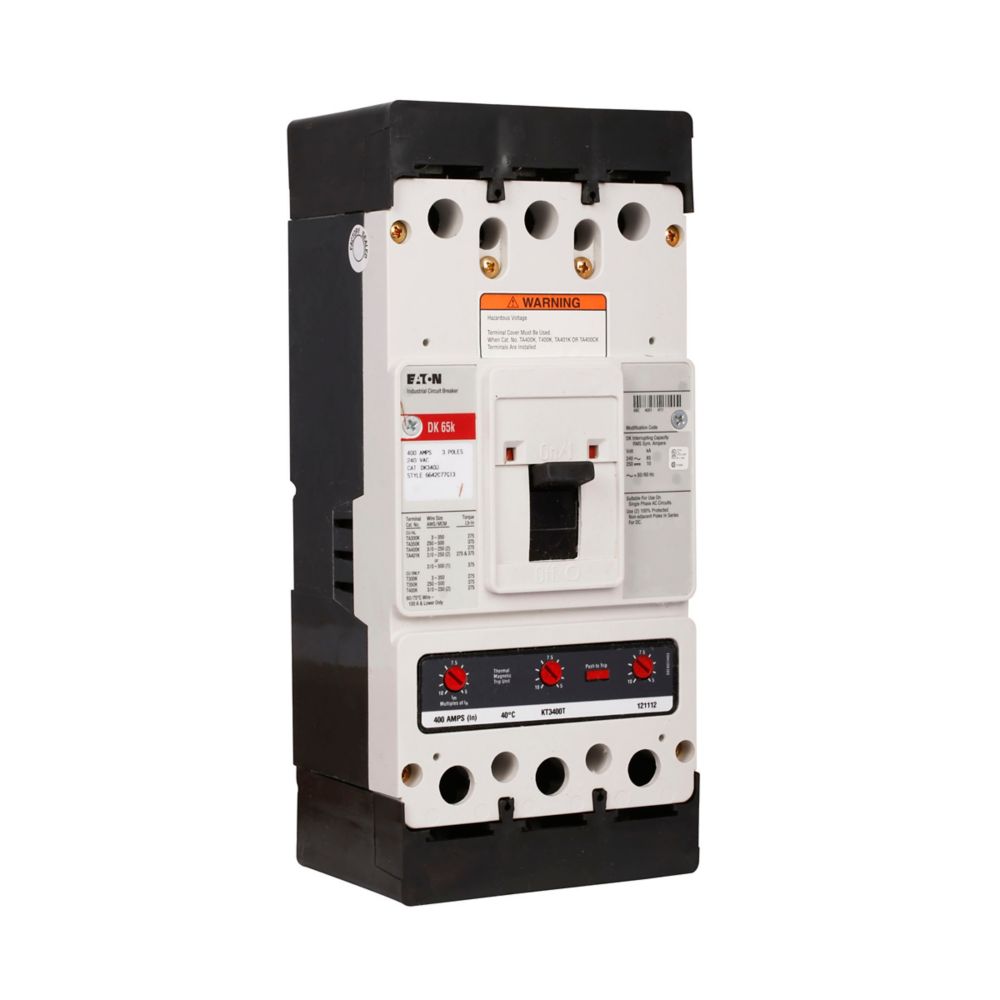

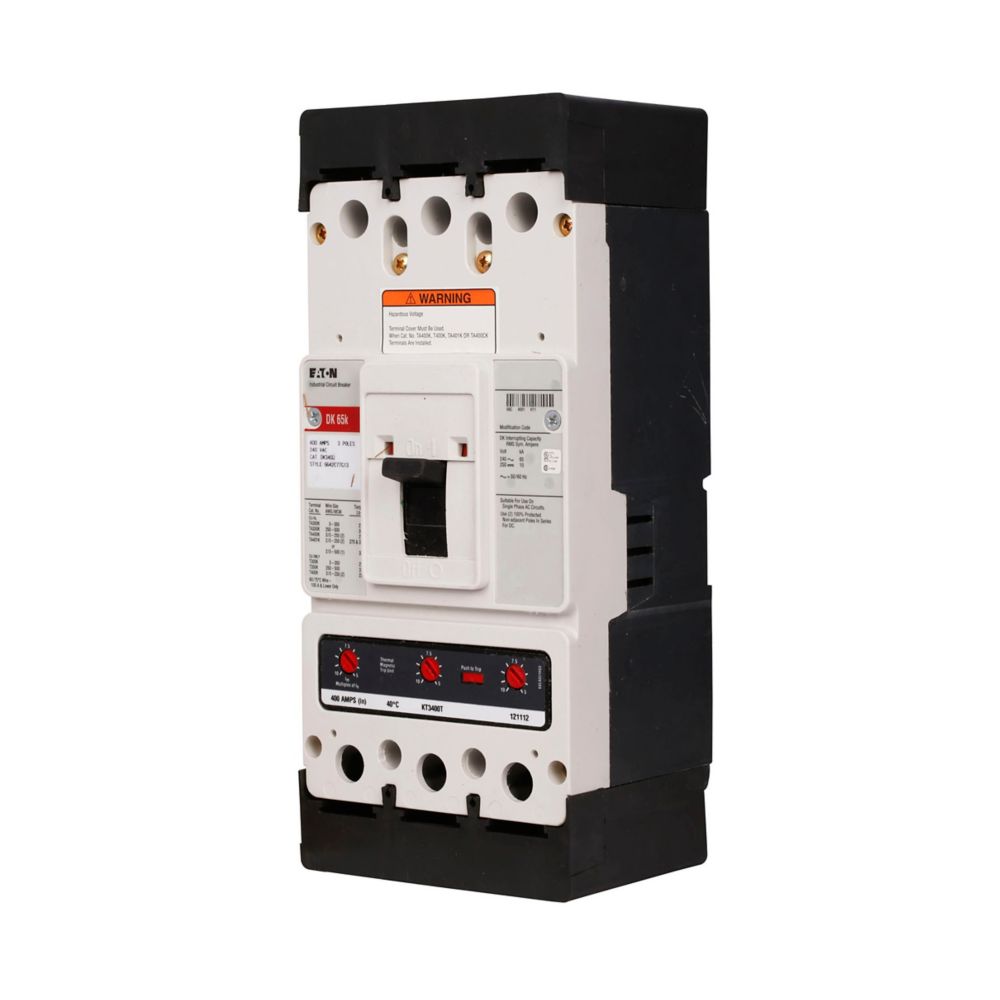

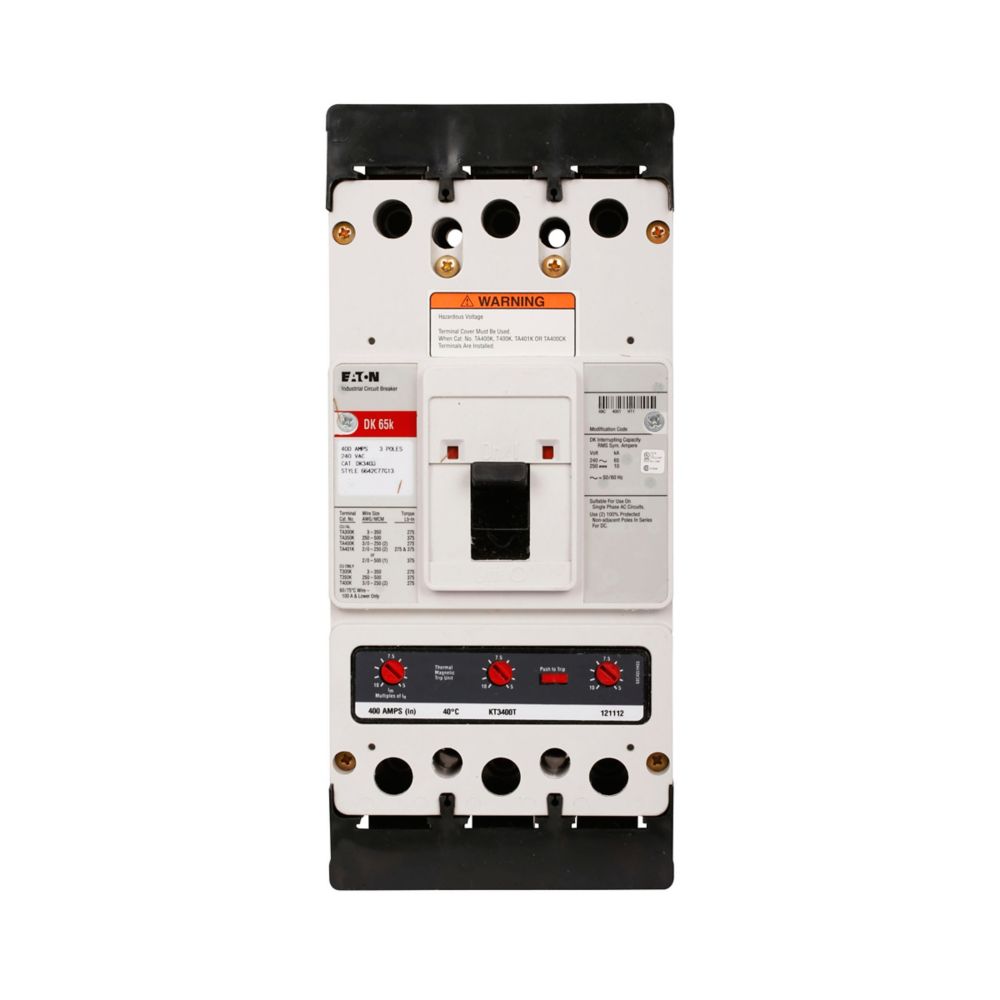

DK3350 - Eaton Cutler-Hammer - 350 Amp 3 Pole 240 Volt Molded Case Circuit Breakers
Eaton Series C complete molded case circuit breaker, K-frame, DK, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 350 A, 240 Vac, 250 Vdc, 65 kAIC at 240 Vac, 10 kAIC at 250 Vdc, Aluminum, Line and load, 50/60 Hz.
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C complete molded case circuit breaker
|
| Catalog Number |
DK3350
|
| UPC |
786679044148
|
| Product Length/Depth |
4.1 in
|
| Product Height |
5.5 in
|
| Product Width |
5.5 in
|
| Product Weight |
11.5 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
350 A
|
| Voltage rating |
240 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
DK
|
| Circuit breaker frame type |
Complete breaker
|
| Series |
Series C
|
| Terminals |
Line and load
|
| Frame |
K
|
| Frequency rating |
50 to 60 Hz
|
| Terminal material |
Aluminum
|
| Interrupt rating |
10 kAIC at 250 Vdc
65 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
